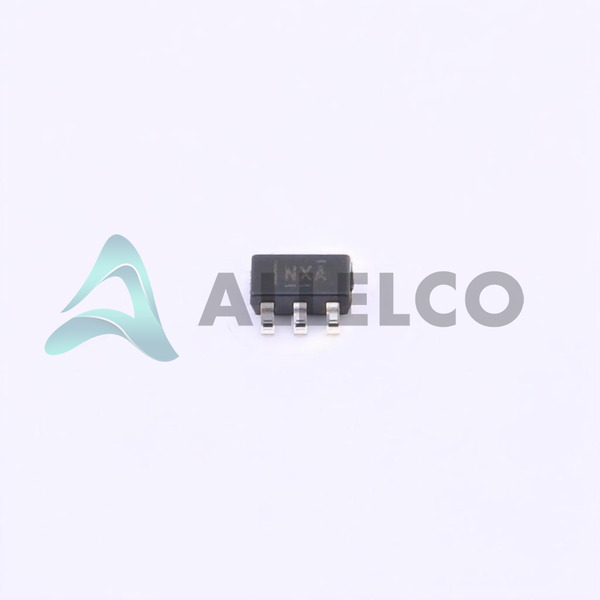

Manufacturer Part Number
TLV3501AIDBVT
Manufacturer
Texas Instruments
Introduction
High-speed, single-channel, linear comparator designed for fast signal detection and processing
Product Features and Performance
General Purpose Comparator
Single Element Configuration
CMOS, Push-Pull, Rail-to-Rail, TTL Compatible Output
Low Voltage Operation from 2.7V to 5.5V
Symmetrical Dual Supply Range ±1.35V to ±2.75V
Maximum Input Offset Voltage: 6.5mV at 5.5V
Ultra Low Input Bias Current: 10pA at 5.5V
Low Quiescent Current: Max 5mA
High Common-Mode Rejection Ratio: 70dB CMRR
High Power Supply Rejection Ratio: 100dB PSRR
Fast Propagation Delay: Max 10ns
Built-in Hysteresis: 6mV
Wide Operating Temperature Range: -40°C to 125°C
Product Advantages
Ideal for precision signal detection
High-speed operation suitable for timing applications
Low power consumption
High noise immunity with built-in hysteresis
Key Technical Parameters
Voltage Supply Range: 2.7V ~ 5.5V single or ±1.35V ~ 2.75V dual
Current - Output (Typical): Not specified
Current - Quiescent (Max): 5mA
Propagation Delay (Max): 10ns
Input Offset Voltage (Max): 6.5mV @ 5.5V
Input Bias Current (Max): 10pA @ 5.5V
Operating Temperature Range: -40°C to 125°C
Quality and Safety Features
Extended Temperature Range for Reliability in Various Conditions
Robust CMRR and PSRR for Stable Operation
Compatibility
Output Compatible with CMOS, TTL Logic Levels
SOT-23-6 Package for Standard Surface Mount Applications
Application Areas
High-Speed Signal Processing
Data Acquisition Systems
Zero-Crossing Detectors
Oscilloscopes
Logic Systems
Product Lifecycle
Status: Active
No immediate discontinuation, replacements or upgrades currently specified
Several Key Reasons to Choose This Product
Rapid Signal Response with 10ns Propagation Delay
High Precision with Low Input Offset and Bias Current
Versatility in Power Supply with Single or Dual Voltage Operation
Suitable for Harsh Environments with Wide Operating Temperature
Low Power Consumption for Energy-Efficient Designs
Compatible with Various Digital Logic Families
Compact SOT-23-6 Package for Space-Constrained Applications
