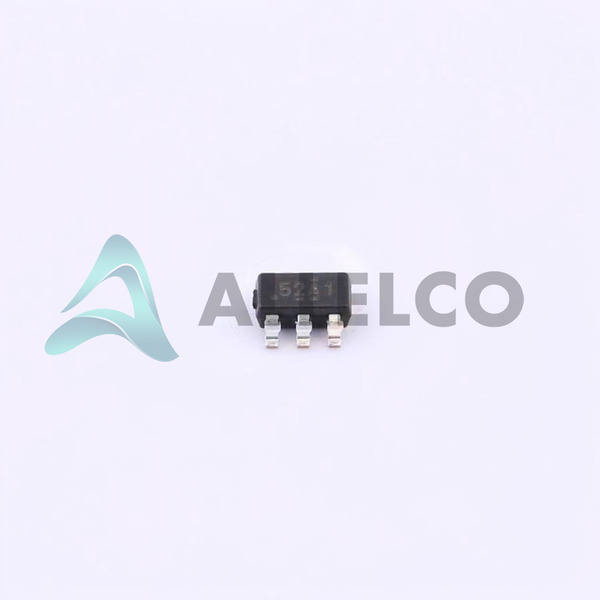

Image may be representation.
See specifications for product details.

~~Favorite~~

EXPRESS OPTION

Payment method

TMAG5273A1QDBVT - Texas Instruments

Name: Texas Instruments TMAG5273A1QDBVT
Brand: Texas Instruments
SKU: TMAG5273A1QDBVT
Price: 0.579 USD
Availability: InStock
Rating: 5 (4 reviews)

Manufacturer Part Number: TMAG5273A1QDBVT

Manufacturer: Texas Instruments

Allelco Part Number: 98D-TMAG5273A1QDBVT

Warranty: 1 Year Allelco Warranty - Find out more

Parts Description: LOW-POWER LINEAR 3D HALL-EFFECT

Package: SOT-23-6

Data sheet: 1.TMAG5273A1QDBVT.pdf ...

Datasheets
TMAG5273.pdf

~~Compare~~

Our certification

In stock: 30224

Unit Price: $0.951
Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity	Unit Price	Ext. Price
1+	$0.951	$0.95
10+	$0.806	$8.06
30+	$0.727	$21.81
250+	$0.638	$159.50
500+	$0.597	$298.50
1000+	$0.579	$579.00

The above prices does not include taxes and freight rates, which will be calculated on the order pages.

EXPRESS OPTION

Payment method

Our certification

Specifications

TMAG5273A1QDBVT Tech Specifications
Texas Instruments - TMAG5273A1QDBVT technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - TMAG5273A1QDBVT

Product Attribute	Attribute Value
Manufacturer	Texas Instruments
Voltage - Supply	1.7V ~ 3.6V
Technology	Hall Effect
Supplier Device Package	SOT-23-6
Series	-
Sensing Range	±40mT ~ ±80mT
Package / Case	SOT-23-6
Package	Tape & Reel (TR)

Product Attribute	Attribute Value
Output Type	I²C
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Features	Sleep Mode, Temperature Compensated
Current - Supply (Max)	-
Current - Output (Max)	2mA
Bandwidth	-
Axis	X, Y, Z

Environmental & Export Classifications

ATTRIBUTE	DESCRIPTION
RoHs Status	Not applicable
Moisture Sensitivity Level (MSL)	3 (168 Hours)
ECCN	EAR99
HTSUS	8542.39.0001

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments TMAG5273A1QDBVT

Product Attribute
Part Number	TMAG5273A1QDBVT	TMAG5273A2QDBVT	TMAG5273A1QDBVR	TMAG5231C1GQDMRR
Manufacturer	Texas Instruments	Texas Instruments	Texas Instruments	Texas Instruments
Output Type	I²C	I²C	I²C	Push-Pull
Bandwidth	-	-	-	-
Series	-	-	-	-
Package / Case	SOT-23-6	SOT-23-6	SOT-23-6	4-XFDFN Exposed Pad
Technology	Hall Effect	Hall Effect	Hall Effect	Hall Effect
Voltage - Supply	1.7V ~ 3.6V	1.7V ~ 3.6V	1.7V ~ 3.6V	1.65V ~ 5.5V
Features	Sleep Mode, Temperature Compensated	Sleep Mode, Temperature Compensated	Sleep Mode, Temperature Compensated	Sleep Mode
Operating Temperature	-40°C ~ 125°C (TA)	-40°C ~ 125°C (TA)	-40°C ~ 125°C (TA)	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Axis	X, Y, Z	X, Y, Z	X, Y, Z	-
Supplier Device Package	SOT-23-6	SOT-23-6	SOT-23-6	4-X2SON (1.1x1.4)
Current - Supply (Max)	-	-	-	16µA
Sensing Range	±40mT ~ ±80mT	±133mT ~ ±266mT	±40mT ~ ±80mT	±4mT Trip, ±1.2mT Release
Package	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)
Current - Output (Max)	2mA	2mA	2mA	5mA

TMAG5273A1QDBVT Datasheet PDF

Download TMAG5273A1QDBVT pdf datasheets and Texas Instruments documentation for TMAG5273A1QDBVT - Texas Instruments.

Datasheets: TMAG5273.pdf
