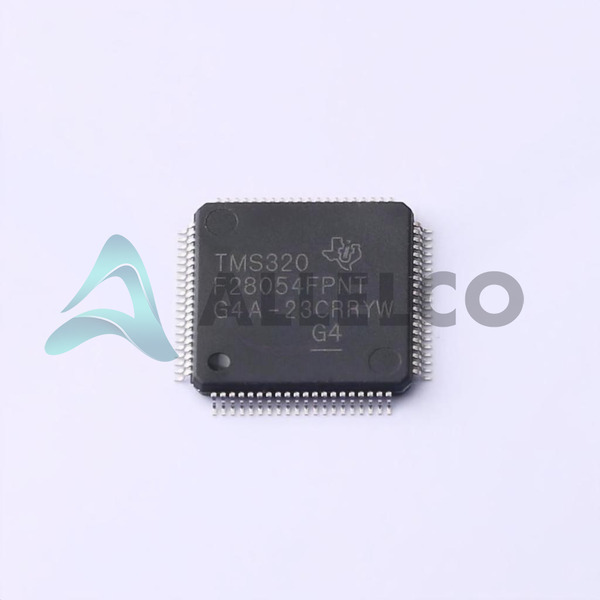

Image may be representation.
See specifications for product details.

~~Favorite~~

EXPRESS OPTION

Payment method

TMS320F28054FPNT - Texas Instruments

Name: Texas Instruments TMS320F28054FPNT
Brand: Texas Instruments
SKU: TMS320F28054FPNT
Price: 9.77 USD
Availability: InStock
Rating: 5 (1 reviews)

Manufacturer Part Number: TMS320F28054FPNT

Manufacturer: Texas Instruments

Allelco Part Number: 32D-TMS320F28054FPNT

Warranty: 1 Year Allelco Warranty - Find out more

Stock Status:: 4,742 pcs available, New & Original

Parts Description: IC MCU 32BIT 128KB FLASH 80LQFP

Package: 80-LQFP (12x12)

Data sheet: TMS320F28054FPN.pdf

PCN Assembly/Origin
Mult Devices 23/Feb/2018.pdf

PCN Design/Specification
TMS320F28050/8055 Datasheet 27/Nov/2018.pdf TMS320F2805x 28/Aug/2020.pdf

HTML Datasheet
TMS320F2805x Datasheet.pdf

Errata
TMS320F2805x Errata.pdf

RoHs Status: ROHS3 Compliant

~~Compare~~

Our certification

In stock: 4742

Unit Price: $11.79
Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity	Unit Price	Ext. Price
1+	$11.79	$11.79
10+	$11.32	$113.20
30+	$10.49	$314.70
100+	$9.77	$977.00

The above prices does not include taxes and freight rates, which will be calculated on the order pages.

Specifications

TMS320F28054FPNT Tech Specifications
Texas Instruments - TMS320F28054FPNT technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - TMS320F28054FPNT

Product Attribute	Attribute Value
Manufacturer	Texas Instruments
Voltage - Supply (Vcc/Vdd)	1.71V ~ 1.995V
Supplier Device Package	80-LQFP (12x12)
Speed	60MHz
Series	C2000™ C28x Piccolo™
RAM Size	8K x 16
Program Memory Type	FLASH
Program Memory Size	128KB (64K x 16)
Peripherals	Brown-out Detect/Reset, POR, PWM, WDT
Package / Case	80-LQFP
Package	Tray

Product Attribute	Attribute Value
Oscillator Type	Internal
Operating Temperature	-40°C ~ 105°C (TA)
Number of I/O	42
Mounting Type	Surface Mount
EEPROM Size	-
Data Converters	A/D 16x12b
Core Size	32-Bit Single-Core
Core Processor	C28x
Connectivity	CANbus, I²C, SCI, SPI, UART/USART
Base Product Number	TMS320

Environmental & Export Classifications

ATTRIBUTE	DESCRIPTION
RoHs Status	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	3 (168 Hours)
REACH Status	REACH Unaffected
ECCN	3A991A2
HTSUS	8542.31.0001

Parts Introduction

TMS320F28054FPNT (1)

Manufacturer Part Number

TMS320F28054FPNT

Manufacturer

Texas Instruments

Introduction

Embedded Microcontroller Integrated Circuit (IC)

Part of the C2000 C28x Piccolo series

Product Features and Performance

32-bit single-core C28x microcontroller

60 MHz operating speed

128 KB program memory (64K x 16)

8 KB RAM (8K x 16)

16-bit, 16-channel ADC

CAN, I2C, SPI, SCI, UART/USART connectivity

PWM, brown-out detection/reset, power-on reset (POR) peripherals

Watchdog timer (WDT)

Operating temperature range: -40°C to 105°C

Product Advantages

Powerful 32-bit microcontroller core

Extensive peripheral set for diverse applications

Flash program memory for flexible firmware updates

Wide operating temperature range

Key Technical Parameters

Package: 80-LQFP (12x12)

Mounting Type: Surface Mount

Voltage Supply: 1.71V to 1.995V

Oscillator: Internal

Quality and Safety Features

RoHS3 compliant

Brown-out detection and reset

Power-on reset (POR)

Compatibility

Compatible with other devices in the C2000 C28x Piccolo series

Application Areas

Industrial control systems

Motor control

Power conversion

Embedded systems

Product Lifecycle

Currently in active production

Replacement or upgrade options may be available in the C2000 C28x Piccolo series

Key Reasons to Choose This Product

Powerful 32-bit microcontroller core for demanding applications

Comprehensive peripheral set for flexible design

Flash program memory for easy firmware updates

Wide operating temperature range for industrial environments

RoHS3 compliance for environmental responsibility
