Manufacturer Part Number

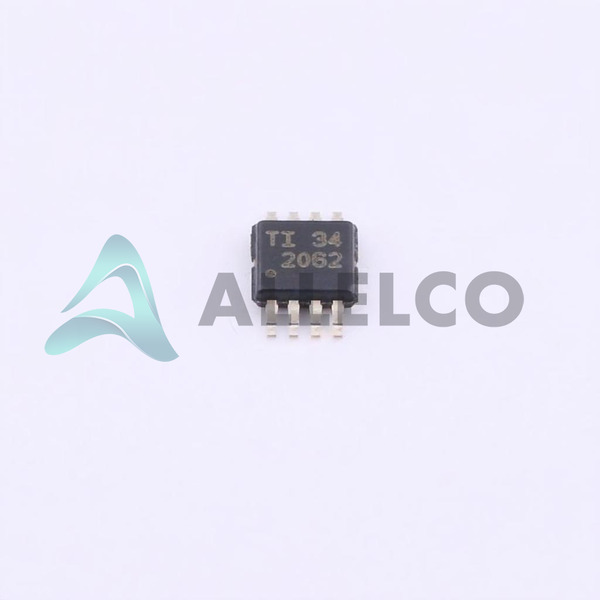

TPS2062DGNR
Manufacturer
texas-instruments
Introduction
The TPS2062DGNR from Texas Instruments is a power management integrated circuit (PMIC) designed for power distribution and load driving in electronic devices.
Product Features and Performance
Dual general-purpose power distribution switch
Integrated N-channel MOSFETs for high-side switching
On/Off interface control
Supports 2.7V to 5.5V load voltage range
No external voltage supply required for operation
Current output capability up to 1A
Typical Rds(on) of 70mOhm ensures efficiency
Status flag feature for monitoring switch health
Built-in fixed current limiting and over-temperature protection
Under Voltage Lock Out (UVLO) for safety
Operates reliably in a wide temperature range from -40°C to 125°C
Product Advantages
Dual output for managing more devices
Efficient power distribution with low Rds(on)
Safety features including current limiting and UVLO enhance device protection
Status flag facilitates condition monitoring and diagnostics
High reliability and performance in extreme conditions
Key Technical Parameters
Number of Outputs: 2
Output Configuration: High Side
Output Type: N-Channel
Voltage Load: 2.7V ~ 5.5V
Current Output (Max): 1A
Rds On (Typ): 70mOhm
Operating Temperature: -40°C ~ 125°C
Quality and Safety Features
Current Limiting (Fixed)
Over Temperature Protection
Under Voltage Lock Out (UVLO)
Compatibility
Designed for use with a wide range of load voltages (2.7V to 5.5V), making it versatile for various applications.
Application Areas
USB hubs and peripherals
Portable electronics
Battery-powered devices
Industrial controls
Product Lifecycle
Status: Active
This product is not near discontinuation, and replacements or upgrades are readily available.
Several Key Reasons to Choose This Product
Efficient power management with dual outputs
Low Rds(on) for higher efficiency
Comprehensive safety features protect against overcurrent, overheating, and under-voltage conditions
Wide operating temperature range ensures reliability in various environments
The status flag feature simplifies system diagnostics and monitoring
Compatible with a broad range of devices due to its versatile load voltage support
