HomeProductsIntegrated Circuits (ICs)PMIC - Power Distribution Switches, Load DriversTPS2065CDBVR

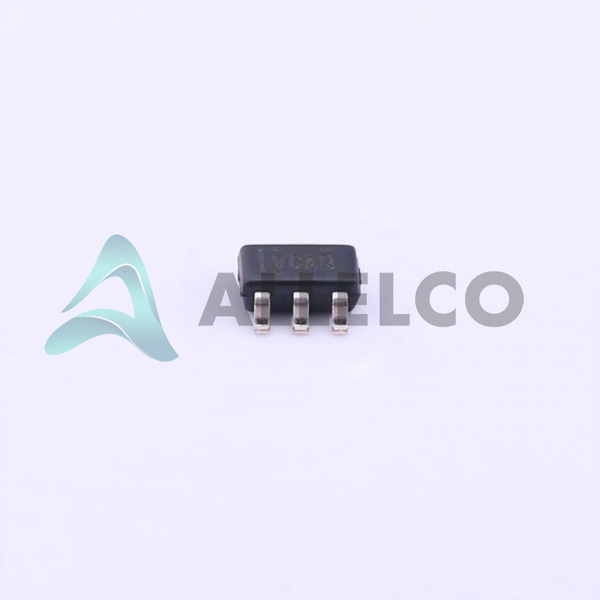

TPS2065CDBVR Image
TPS2065CDBVR Image - 1TPS2065CDBVR Image - 2
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

TPS2065CDBVR - Texas Instruments

Manufacturer Part Number
TPS2065CDBVR
Manufacturer
Texas Instruments
Allelco Part Number
32D-TPS2065CDBVR
Warranty
1 Year Allelco Warranty - Find out more
Parts Description
IC PWR SWITCH N-CHAN 1:1 SOT23-5
Package
SOT-23-5
Data sheet
1.TPS2065CDBVR.pdf ...

PCN Assembly/Origin

2.73KHz.pdf

PCN Packaging

2.73KHz.pdf

PCN Design/Specification

Cylindrical Battery Holders.pdf

HTML Datasheet

TPS20xxC(-2) Series.pdf
RoHs Status
ROHS3 Compliant
Compare
Our certification
In stock: 105190
  • Unit Price: $0.064
  • Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity Unit Price Ext. Price
5+ $0.064 $0.32
50+ $0.052 $2.60
150+ $0.046 $6.90
500+ $0.042 $21.00
3000+ $0.034 $102.00
6000+ $0.032 $192.00
The above prices does not include taxes and freight rates, which will be calculated on the order pages.
EXPRESS OPTION
Payment method
Our certification

Specifications

TPS2065CDBVR Tech Specifications
Texas Instruments - TPS2065CDBVR technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - TPS2065CDBVR

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage - Supply (Vcc/Vdd) Not Required
Voltage - Load 4.5V ~ 5.5V
Switch Type USB Switch
Supplier Device Package SOT-23-5
Series -
Rds On (Typ) 96mOhm
Ratio - Input:Output 1:1
Package / Case SC-74A, SOT-753
Package Tape & Reel (TR)
Output Type N-Channel
Product Attribute Attribute Value
Output Configuration High Side
Operating Temperature -40°C ~ 125°C (TJ)
Number of Outputs 1
Mounting Type Surface Mount
Interface On/Off
Input Type Non-Inverting
Features Load Discharge, Status Flag
Fault Protection Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO
Current - Output (Max) 1A
Base Product Number TPS2065

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001

Parts Introduction

Manufacturer Part Number

TPS2065CDBVR

Manufacturer

Texas Instruments

Introduction

Integrated Circuit (IC) for Power Distribution Switches and Load Drivers

Product Features and Performance

N-Channel MOSFET with 1A maximum output current

Integrated load discharge function

Reverse current protection

Thermal shutdown protection

Undervoltage lockout (UVLO) protection

Current limiting protection

Status flag output

Product Advantages

Compact SOT-23-5 package

Wide operating temperature range of -40°C to 125°C

Low on-resistance of 96mΩ (typical)

Suitable for USB and other 5V applications

Key Technical Parameters

Operating Voltage: 4.5V to 5.5V

Maximum Output Current: 1A

On-Resistance (Typical): 96mΩ

Switching Frequency: N/A

Quality and Safety Features

RoHS3 compliant

Overcurrent, overtemperature, and reverse current protection

Compatibility

Compatible with 5V USB and other 5V applications

Application Areas

Power distribution and load control

USB port protection

Battery charging circuits

Portable electronics

Product Lifecycle

This product is an active and available part from Texas Instruments.

Several Key Reasons to Choose This Product

Integrated protection features for reliable operation

Compact SOT-23-5 package for space-constrained designs

Wide operating temperature range for versatile applications

Low on-resistance for efficient power delivery

Suitable for USB and other 5V power supply systems

Parts with Similar Specifications
