HomeProductsIntegrated Circuits (ICs)PMIC - Power Distribution Switches, Load DriversTPS22917DBVR

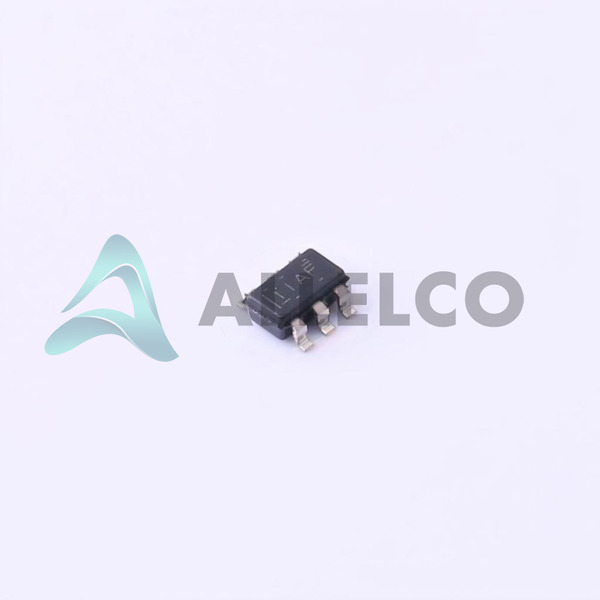

TPS22917DBVR Image
TPS22917DBVR Image - 1TPS22917DBVR Image - 2TPS22917DBVR Image - 3
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

TPS22917DBVR - Texas Instruments

Manufacturer Part Number
TPS22917DBVR
Manufacturer
Texas Instruments
Allelco Part Number
32D-TPS22917DBVR
Warranty
1 Year Allelco Warranty - Find out more
Parts Description
IC PWR SWITCH P-CHAN 1:1 SOT23-6
Package
SOT-23-6
Data sheet
1.TPS22917DBVR.pdf ...

HTML Datasheet

TPS22917 Datasheet.pdf
RoHs Status
ROHS3 Compliant
Compare
Our certification
In stock: 164200
  • Unit Price: $0.234
  • Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity Unit Price Ext. Price
1+ $0.234 $0.23
10+ $0.188 $1.88
30+ $0.167 $5.01
100+ $0.142 $14.20
500+ $0.13 $65.00
1000+ $0.124 $124.00
The above prices does not include taxes and freight rates, which will be calculated on the order pages.
EXPRESS OPTION
Payment method
Our certification

Specifications

TPS22917DBVR Tech Specifications
Texas Instruments - TPS22917DBVR technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - TPS22917DBVR

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage - Supply (Vcc/Vdd) 1V ~ 5.5V
Voltage - Load 0V ~ 5.5V
Switch Type General Purpose
Supplier Device Package SOT-23-6
Series -
Rds On (Typ) 80mOhm
Ratio - Input:Output 1:1
Package / Case SOT-23-6
Package Tape & Reel (TR)
Output Type P-Channel
Product Attribute Attribute Value
Output Configuration High Side
Operating Temperature -40°C ~ 125°C
Number of Outputs 1
Mounting Type Surface Mount
Interface On/Off
Input Type Non-Inverting
Features Load Discharge, Slew Rate Controlled
Fault Protection Reverse Current
Current - Output (Max) 2A
Base Product Number TPS22917

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001

Parts Introduction

Manufacturer Part Number

TPS22917DBVR

Manufacturer

Texas Instruments

Introduction

The TPS22917DBVR is a power distribution switch designed for power management applications, specifically aimed at providing a reliable high-side power control.

Product Features and Performance

Single P-Channel output

Non-Inverting input type

Load discharge and slew rate controlled features

Reverse current fault protection

Operates across a broad voltage range (0V to 5.5V)

Supports up to 2A output current

Low Rds (On) of 80mOhm typically for higher efficiency

Product Advantages

High integration helps reduce system size and complexity

Built-in fault protection enhances system safety

Slew rate control minimizes inrush current, improving system reliability

Key Technical Parameters

Output Configuration: High Side

Output Type: P-Channel

Voltage Load: 0V to 5.5V

Voltage Supply (Vcc/Vdd): 1V to 5.5V

Current Output (Max): 2A

Rds On (Typ): 80mOhm

Operating Temperature: -40°C to 125°C

Quality and Safety Features

Reverse current protection prevents damage from miswiring or failure conditions

Operational across extreme temperature ranges ensuring reliability in harsh environments

Compatibility

Suitable for broad range of applications due to general-purpose switch type

Compatible within a voltage supply range of 1V to 5.5V for versatile applications

Application Areas

Power management systems

Portable consumer electronics

Internet of Things (IoT) devices

Industrial controls

Product Lifecycle

Currently active with no near-term discontinuation planned

Continual support with replacements and upgrades available

Several Key Reasons to Choose This Product

Efficient power distribution with low resistance and high current capability

Integrated safety features prevent potential damage and ensure long-term reliability

Wide-ranging compatibility makes it ideal for diverse applications

Reliable performance guaranteed from a reputable manufacturer with robust support

Compact SOT-23-6 package optimizes PCB space

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments TPS22917DBVR

Product Attribute TPS22917LDBVR TPS22917DBVT TPS22918TDBVRQ1 TPS22918DBVR
Part Number TPS22917LDBVR TPS22917DBVT TPS22918TDBVRQ1 TPS22918DBVR
Manufacturer Texas Instruments Texas Instruments Texas Instruments Texas Instruments
Supplier Device Package - 196-NFBGA (12x12) 16-PDIP 64-VQFN (9x9)
Input Type - - - Differential
Rds On (Typ) - - - -
Features - - - Simultaneous Sampling
Output Type - Current - Unbuffered Voltage - Buffered -
Switch Type - - - -
Output Configuration - - - -
Number of Outputs - - - -
Operating Temperature - -40°C ~ 85°C 0°C ~ 70°C -40°C ~ 85°C
Base Product Number - DAC34H84 MAX500 ADS62P42
Fault Protection - - - -
Interface - - - -
Voltage - Supply (Vcc/Vdd) - - - -
Package / Case - 196-LFBGA 16-DIP (0.300', 7.62mm) 64-VFQFN Exposed Pad
Series - - - -
Voltage - Load - - - -
Current - Output (Max) - - - -
Ratio - Input:Output - - - -
Mounting Type - Surface Mount Through Hole Surface Mount
Package - Tape & Reel (TR) Tube Tape & Reel (TR)

TPS22917DBVR Datasheet PDF

Download TPS22917DBVR pdf datasheets and Texas Instruments documentation for TPS22917DBVR - Texas Instruments.

PCN Packaging
SOT Symbolization update 09/Sep/2019.pdf
HTML Datasheet
