HomeProductsIntegrated Circuits (ICs)PMIC - Power Distribution Switches, Load DriversTPS22954DQCR

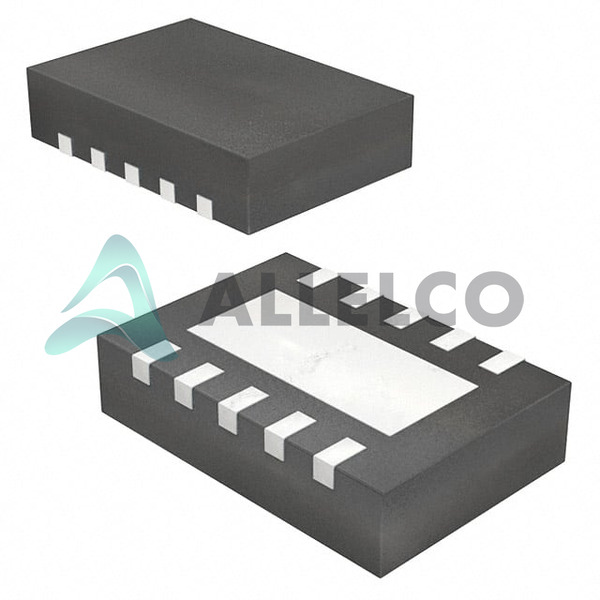

TPS22954DQCR Image
TPS22954DQCR Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

TPS22954DQCR - Texas Instruments

Manufacturer Part Number
TPS22954DQCR
Manufacturer
Texas Instruments
Allelco Part Number
32D-TPS22954DQCR
Warranty
1 Year Allelco Warranty - Find out more
Parts Description
IC PWR SWITCH N-CHAN 1:1 10WSON
Package
10-WSON (3x2)
Data sheet
1.TPS22954DQCR.pdf ...

PCN Design/Specification

Mult Dev Material Chg 29/Mar/2018.pdf
RoHs Status
ROHS3 Compliant
Compare
Our certification
In stock: 107140
  • Unit Price: $0.376
  • Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity Unit Price Ext. Price
1+ $0.376 $0.38
10+ $0.315 $3.15
30+ $0.284 $8.52
100+ $0.253 $25.30
500+ $0.235 $117.50
1000+ $0.226 $226.00
The above prices does not include taxes and freight rates, which will be calculated on the order pages.
EXPRESS OPTION
Payment method
Our certification

Specifications

TPS22954DQCR Tech Specifications
Texas Instruments - TPS22954DQCR technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - TPS22954DQCR

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage - Supply (Vcc/Vdd) Not Required
Voltage - Load 2.5V ~ 5.7V
Switch Type General Purpose
Supplier Device Package 10-WSON (3x2)
Series -
Rds On (Typ) 14mOhm
Ratio - Input:Output 1:1
Package / Case 10-WFDFN Exposed Pad
Package Tape & Reel (TR)
Output Type N-Channel
Product Attribute Attribute Value
Output Configuration High Side
Operating Temperature -40°C ~ 105°C (TA)
Number of Outputs 1
Mounting Type Surface Mount
Interface On/Off
Input Type Non-Inverting
Features Auto Restart, Load Discharge, Power Good, Slew Rate Controlled
Fault Protection Over Temperature, UVLO
Current - Output (Max) 5A
Base Product Number TPS22954

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001

Parts Introduction

Manufacturer Part Number

TPS22954DQCR

Manufacturer

Texas Instruments

Introduction

Integrated power distribution switch optimized for general-purpose power management applications

Product Features and Performance

Single channel output

N-Channel MOSFET high side switch

Auto-restart function

Load discharge feature

Power good indicator

Slew rate control for reduced in-rush current

Over temperature protection and under-voltage lockout (UVLO)

Product Advantages

High efficiency due to low Rds(on) of 14mOhm

Precision current limiting enhances system safety

Small footprint 10-WSON (3x2) package conserves board space

Key Technical Parameters

Input:Output ratio of 1:1

Operates with load voltages from 2.5V to 5.7V

5A maximum current output

Typical Rds On of 14mOhm

Supports non-inverting input signals

Quality and Safety Features

Fault protection includes over temperature and UVLO

Operating temperature range from -40°C to 105°C

Compatibility

Compatible with various microcontrollers for on/off control

Appropriate for high side switch applications

Application Areas

Power distribution for embedded systems

Computing and server applications

Industrial controls

Telecommunications equipment

Product Lifecycle

Active product status

Not currently nearing discontinuation

Alternatives or upgrades to be checked on manufacturer's website

Key Reasons to Choose This Product

High reliability and thermal performance

Versatile usage across a wide voltage range

High current output capability for heavier loads

Low power consumption improves overall system efficiency

Compact surface-mount package fits tight PCB layouts

Robust safety features minimize risk of damage due to faults

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments TPS22954DQCR

Product Attribute TPS22953DQCR TPS22954DSQR TPS22953QDQCRQ1 TPS22953DSQR
Part Number TPS22953DQCR TPS22954DSQR TPS22953QDQCRQ1 TPS22953DSQR
Manufacturer Texas Instruments Texas Instruments Texas Instruments Texas Instruments
Voltage - Load - - - -
Operating Temperature - -40°C ~ 85°C 0°C ~ 70°C -40°C ~ 85°C
Input Type - - - Differential
Fault Protection - - - -
Interface - - - -
Package - Tape & Reel (TR) Tube Tape & Reel (TR)
Mounting Type - Surface Mount Through Hole Surface Mount
Switch Type - - - -
Output Type - Current - Unbuffered Voltage - Buffered -
Base Product Number - DAC34H84 MAX500 ADS62P42
Rds On (Typ) - - - -
Package / Case - 196-LFBGA 16-DIP (0.300', 7.62mm) 64-VFQFN Exposed Pad
Voltage - Supply (Vcc/Vdd) - - - -
Features - - - Simultaneous Sampling
Series - - - -
Number of Outputs - - - -
Supplier Device Package - 196-NFBGA (12x12) 16-PDIP 64-VQFN (9x9)
Output Configuration - - - -
Current - Output (Max) - - - -
Ratio - Input:Output - - - -

TPS22954DQCR Datasheet PDF

Download TPS22954DQCR pdf datasheets and Texas Instruments documentation for TPS22954DQCR - Texas Instruments.

PCN Design/Specification
Mult Dev Material Chg 29/Mar/2018.pdf
