HomeProductsIntegrated Circuits (ICs)PMIC - Power Distribution Switches, Load DriversTPS22976DPUT

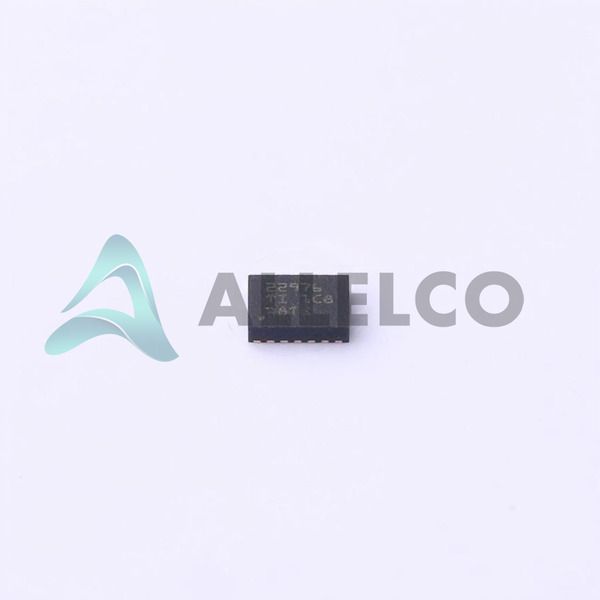

TPS22976DPUT Image
TPS22976DPUT Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

TPS22976DPUT - Texas Instruments

Manufacturer Part Number
TPS22976DPUT
Manufacturer
Texas Instruments
Allelco Part Number
32D-TPS22976DPUT
Warranty
1 Year Allelco Warranty - Find out more
Parts Description
IC PWR SWITCH N-CHAN 1:1 14WSON
Package
14-WSON (3x2)
Data sheet
1.TPS22976DPUT.pdf ...

HTML Datasheet

TPS22976 Datasheet.pdf
RoHs Status
ROHS3 Compliant
Compare
Our certification
In stock: 49610
  • Unit Price: $0.877
  • Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity Unit Price Ext. Price
1+ $0.877 $0.88
10+ $0.745 $7.45
30+ $0.672 $20.16
250+ $0.59 $147.50
500+ $0.553 $276.50
1000+ $0.537 $537.00
The above prices does not include taxes and freight rates, which will be calculated on the order pages.
EXPRESS OPTION
Payment method
Our certification

Specifications

TPS22976DPUT Tech Specifications
Texas Instruments - TPS22976DPUT technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - TPS22976DPUT

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage - Supply (Vcc/Vdd) -
Voltage - Load 2.5V ~ 5.7V
Switch Type General Purpose
Supplier Device Package 14-WSON (3x2)
Series -
Rds On (Typ) 14mOhm
Ratio - Input:Output 1:1
Package / Case 14-PowerWFDFN
Package Tape & Reel (TR)
Output Type N-Channel
Product Attribute Attribute Value
Output Configuration High Side
Operating Temperature -40°C ~ 105°C (TA)
Number of Outputs 2
Mounting Type Surface Mount
Interface On/Off
Input Type -
Features Load Discharge
Fault Protection Over Temperature
Current - Output (Max) 6A
Base Product Number TPS22976

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001

Parts Introduction

Manufacturer Part Number

TPS22976DPUT

Manufacturer

Texas Instruments

Introduction

A power management integrated circuit designed for efficient power distribution and load driving in electronic devices.

Product Features and Performance

Dual-channel high-side N-channel switch

Load discharge feature for rapid load power-down

Over temperature fault protection enhances safety

Operational between 2.5V and 5.7V, accommodating a variety of power sources

Capable of delivering up to 6A output current

Low Rds(on) of 14mOhm minimizes power loss and improves efficiency

Product Advantages

Dual output capability allows for versatile power management configurations

Integrated over-temperature protection adds an additional layer of safety for connected devices

The low on-resistance reduces power dissipation, improving overall system efficiency

Key Technical Parameters

Number of Outputs: 2

Voltage Load: 2.5V ~ 5.7V

Current Output (Max): 6A

Rds On (Typ): 14mOhm

Operating Temperature: -40°C ~ 105°C (TA)

Quality and Safety Features

Over temperature protection mechanism

Built to operate reliably in temperatures ranging from -40°C to 105°C

Compatibility

Suitable for use in systems requiring efficient power distribution between 2.5V and 5.7V

Application Areas

Consumer Electronics

Portable Devices

Communications Equipment

Computing Devices

Product Lifecycle

Active status, indicating ongoing production and availability

No indication of nearing discontinuation; replacements or upgrades should be monitored through Texas Instruments' notices

Several Key Reasons to Choose This Product

Efficient power distribution suited for high-demand electronics

Dual-channel output supports complex power management needs

Enhanced safety features including over-temperature protection

Low Rds(on) ensures minimal energy loss and heat generation

Robust operation across a wide range of temperatures contributes to device reliability

Backed by Texas Instruments' reputation for quality and support in power management solutions

Parts with Similar Specifications
