HomeProductsIntegrated Circuits (ICs)PMIC - Power Distribution Switches, Load DriversTPS2552DBVR

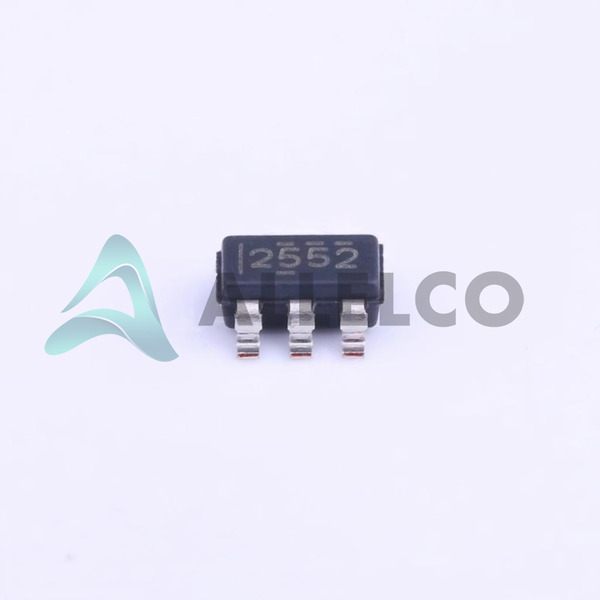

TPS2552DBVR Image
TPS2552DBVR Image - 1TPS2552DBVR Image - 2TPS2552DBVR Image - 3
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

TPS2552DBVR - Texas Instruments

Manufacturer Part Number
TPS2552DBVR
Manufacturer
Texas Instruments
Allelco Part Number
32D-TPS2552DBVR
Warranty
1 Year Allelco Warranty - Find out more
Parts Description
IC PWR SWITCH N-CHAN 1:1 SOT23-6
Package
SOT-23-6
Data sheet
1.TPS2552DBVR.pdf ...

PCN Assembly/Origin

Multi Devices 23/Jun/2017.pdf

HTML Datasheet

TPS2552,53(-1).pdf
RoHs Status
ROHS3 Compliant
Compare
Our certification
In stock: 113880
  • Unit Price: $0.137
  • Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity Unit Price Ext. Price
5+ $0.137 $0.69
50+ $0.109 $5.45
150+ $0.097 $14.55
500+ $0.082 $41.00
3000+ $0.075 $225.00
6000+ $0.071 $426.00
The above prices does not include taxes and freight rates, which will be calculated on the order pages.
EXPRESS OPTION
Payment method
Our certification

Specifications

TPS2552DBVR Tech Specifications
Texas Instruments - TPS2552DBVR technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - TPS2552DBVR

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage - Supply (Vcc/Vdd) Not Required
Voltage - Load 2.5V ~ 6.5V
Switch Type General Purpose
Supplier Device Package SOT-23-6
Series -
Rds On (Typ) 85mOhm
Ratio - Input:Output 1:1
Package / Case SOT-23-6
Package Tape & Reel (TR)
Output Type N-Channel
Product Attribute Attribute Value
Output Configuration High Side
Operating Temperature -40°C ~ 150°C (TJ)
Number of Outputs 1
Mounting Type Surface Mount
Interface On/Off
Input Type Non-Inverting
Features Slew Rate Controlled, Status Flag
Fault Protection Current Limiting (Adjustable), Over Temperature, UVLO
Current - Output (Max) 1.5A
Base Product Number TPS2552

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001

Parts Introduction

Manufacturer Part Number

TPS2552DBVR

Manufacturer

Texas Instruments

Introduction

The TPS2552DBVR is a precision adjustable current-limited power-distribution switch.

Product Features and Performance

Precision current-limiting

Slew rate controlled load switching

Status flag for fault indication

Product Advantages

Accurate current regulation

On-chip thermal shutdown

Built-in under-voltage lockout (UVLO)

Key Technical Parameters

General Purpose Switch Type

1 Output

High Side Output Configuration

N-Channel Output Type

On/Off Interface

Load Voltage Range: 2.5V to 6.5V

Output Current Max: 1.5A

Rds On Typical: 85mOhm

Inverting Input Type

Operating Temperature Range: -40°C to 150°C

Quality and Safety Features

Adjustable Current Limiting

Over Temperature Protection

Under-Voltage Lock Out

Compatibility

Compatible with a load voltage range from 2.5V to 6.5V

Application Areas

USB and other power bus protection

Industrial and commercial low-power systems

Point of load power management

Product Lifecycle

Active Product Status

No indication of nearing discontinuation

Several Key Reasons to Choose This Product

High integration for space-limited applications

Low RDS(on) for higher efficiency

Flexible design with adjustable current limit

Multi-feature fault protection enhances system reliability

Suitable for high-temperature operation up to 150°C

Industry-standard SOT-23-6 package for ease of manufacturing and design

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments TPS2552DBVR

Product Attribute TPS2552DDBVR TPS2552DBVR-1 TPS2552DBVT TPS2552DRVR
