Manufacturer Part Number

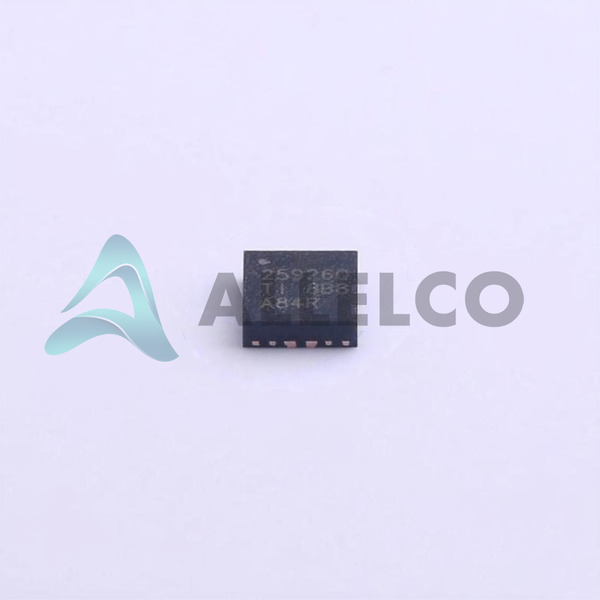

TPS259260DRCR
Manufacturer
Texas Instruments
Introduction
The TPS259260DRCR is a highly integrated circuit designed for power management, specifically in the domain of current regulation and management. This electronic fuse (eFuse) offers efficient and secure power distribution by controlling excessive current flow, thereby preventing damage to sensitive components.
Product Features and Performance
Provides current regulation and management
Supports a wide input voltage range from 4.5V to 13.8V
Capable of outputting currents up to 5A
Operates efficiently in a temperature range from -40°C to 85°C
Designed for surface mount technology for ease of integration
Mounted in a compact 10-VFDFN exposed pad package for minimized footprint
Product Advantages
Protects against overcurrent conditions enhancing system reliability
Highly precise with an accuracy of ±15%
Ensures stable operation under varying environmental conditions
Ease of integration into various system designs due to its surface-mount form factor
Key Technical Parameters
Accuracy: ±15%
Voltage - Input: 4.5V ~ 13.8V
Current - Output: 5A
Operating Temperature: -40°C ~ 85°C (TA)
Package / Case: 10-VFDFN Exposed Pad
Quality and Safety Features
Incorporates features for robust overcurrent protection
Designed and manufactured by Texas Instruments, ensuring high reliability and performance
Compatibility
Designed for versatility, compatible across a wide range of power management applications
Application Areas
Ideal for use in consumer electronics, industrial systems, and telecommunications where precise power management is critical
Product Lifecycle
The TPS259260DRCR is currently active and not nearing discontinuation. Texas Instruments typically provides ample notification if a product is to be discontinued, along with options for replacements or upgrades.
Several Key Reasons to Choose This Product
Robust overcurrent protection enhances system reliability and safety
High accuracy ensures precise current management and efficiency
Supports a broad range of input voltages, making it versatile for multiple applications
Operational across a wide temperature range, suitable for harsh environments
Compact package allows for integration in space-constrained applications
Designed and backed by Texas Instruments, a leader in semiconductor solutions
