Manufacturer Part Number

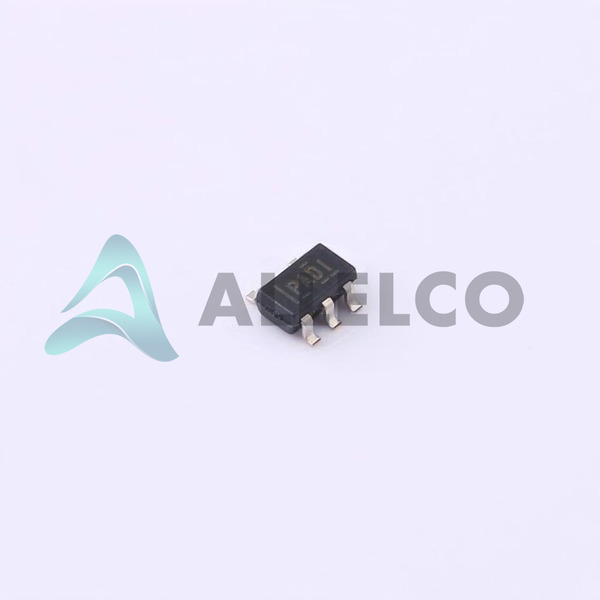

TPS2819DBVT
Manufacturer
Texas Instruments
Introduction
TPS2819DBVT is a low-side gate driver specifically designed for high-speed driving of N-Channel MOSFETs.
Product Features and Performance
Single channel driver
Drives N-Channel MOSFET gates
Non-Inverting input logic
Supply voltage range from 4V to 14V
Logic threshold levels: VIL 1V, VIH 4V
Peak output current of 2A for both source and sink
Fast rise and fall times of 14ns typically
Operates across wide temperature range from -40°C to 125°C
Low propagation delay
Product Advantages
Compact SC-74A, SOT-753 package for space-saving applications
Designed for fast switching applications
High current capability for its size
Precision logic threshold compatible with TTL and CMOS levels
Low power consumption
Extended temperature range suitable for industrial applications
Key Technical Parameters
Channel Type: Single
Voltage Supply: 4V ~ 14V
Logic Voltage VIL, VIH: 1V, 4V
Current Peak Output (Source, Sink): 2A, 2A
Rise / Fall Time: 14ns typical
Operating Temperature: -40°C ~ 125°C
Quality and Safety Features
Industry-standard package for reliability
Built-in protection features for robust performance
Compliant with regulatory standards
Compatibility
Compatible with N-Channel MOSFET gates
Can interface with various logic families due to compatible logic thresholds
Application Areas
Power supply circuits
Motor control
High-speed switching applications
DC-DC converters
Product Lifecycle
Currently in the Last Time Buy phase
Potential replacements or upgrades may be available
Several Key Reasons to Choose This Product
Texas Instruments' reputation for reliability and quality
Ideal for power management and high-speed applications
Compact footprint for densely packed PCBs
Low-side driving feature enables direct control of power stages
High current drive capability with fast response times
Versatility through wide operating temperature and voltage range
Easy-to-use for a wide array of design configurations
