HomeProductsIntegrated Circuits (ICs)PMIC - SupervisorsTPS3824-30DBVR

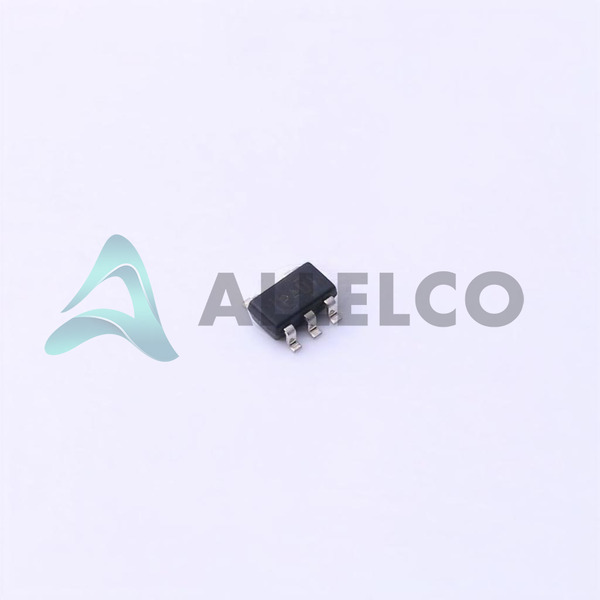

TPS3824-30DBVR Image
TPS3824-30DBVR Image - 1TPS3824-30DBVR Image - 2
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

TPS3824-30DBVR - Texas Instruments

Manufacturer Part Number
TPS3824-30DBVR
Manufacturer
Texas Instruments
Allelco Part Number
32D-TPS3824-30DBVR
Warranty
1 Year Allelco Warranty - Find out more
Parts Description
IC SUPERVISOR 1 CHANNEL SOT23-5
Package
SOT-23-5
Data sheet
1.TPS3824-30DBVR.pdf ...

PCN Assembly/Origin

2.73KHz.pdf
RoHs Status
ROHS3 Compliant
Compare
Our certification
In stock: 56890
  • Unit Price: $0.824
  • Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity Unit Price Ext. Price
1+ $0.824 $0.82
10+ $0.741 $7.41
30+ $0.663 $19.89
100+ $0.603 $60.30
500+ $0.579 $289.50
1000+ $0.568 $568.00
The above prices does not include taxes and freight rates, which will be calculated on the order pages.
EXPRESS OPTION
Payment method
Our certification

Specifications

TPS3824-30DBVR Tech Specifications
Texas Instruments - TPS3824-30DBVR technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - TPS3824-30DBVR

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage - Threshold 2.63V
Type Simple Reset/Power-On Reset
Supplier Device Package SOT-23-5
Series -
Reset Timeout 120ms Minimum
Reset Active High/Active Low
Product Attribute Attribute Value
Package / Case SC-74A, SOT-753
Package Tape & Reel (TR)
Output Push-Pull, Totem Pole
Operating Temperature -40°C ~ 85°C (TA)
Number of Voltages Monitored 1
Mounting Type Surface Mount
Base Product Number TPS3824

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001

Parts Introduction

Manufacturer Part Number

TPS3824-30DBVR

Manufacturer

Texas Instruments

Introduction

The TPS3824-30DBVR is a power supply supervisor designed for monitoring single voltage systems.

Product Features and Performance

Monitors single voltage supply

63V voltage threshold detection

Active high and active low reset output

Minimum reset timeout period of 120ms

Supports -40°C to 85°C operating temperature range

Surface mount SC-74A, SOT-753 package for compact PCB layout

Product Advantages

Provides system reliability through precise voltage monitoring

Dual reset outputs enhance flexibility in system control

Extended operational temperature range suitable for industrial applications

Small form factor packaging conserves board space

Key Technical Parameters

Number of Voltages Monitored: 1

Voltage - Threshold: 2.63V

Output: Push-Pull, Totem Pole

Reset: Active High/Active Low

Reset Timeout: 120ms Minimum

Operating Temperature: -40°C ~ 85°C

Quality and Safety Features

Reliable and consistent performance under varying environmental conditions

Compatibility

Compatible with single voltage supply systems

SOT-23-5 package compatible with standard surface mount processes

Application Areas

Telecommunications

Computing systems

Industrial equipment

Portable/battery-powered electronics

Product Lifecycle

The product status is active, indicating ongoing manufacturing and availability.

Several Key Reasons to Choose This Product

High precision voltage monitoring for system stability

Versatile for use in multiple applications due to active high/low reset output

Texas Instruments' reputation for robust, quality power management solutions

Compact size allows for use in space-constrained applications

Part of an established Texas Instruments power supervisor family, ensuring long-term support and reliability

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments TPS3824-30DBVR

Product Attribute TPS3824-30DBVRG4 TPS3824-30QDBVRQ1 TPS3824-30DBVT TPS3824-30DBVTG4
Part Number TPS3824-30DBVRG4 TPS3824-30QDBVRQ1 TPS3824-30DBVT TPS3824-30DBVTG4
Manufacturer Texas Instruments Texas Instruments Texas Instruments Luminary Micro / Texas Instruments
Reset - - - -
Number of Voltages Monitored - - - -
Supplier Device Package - 196-NFBGA (12x12) 16-PDIP 64-VQFN (9x9)
Type - - - -
Package / Case - 196-LFBGA 16-DIP (0.300', 7.62mm) 64-VFQFN Exposed Pad
Operating Temperature - -40°C ~ 85°C 0°C ~ 70°C -40°C ~ 85°C
Series - - - -
Reset Timeout - - - -
Mounting Type - Surface Mount Through Hole Surface Mount
Base Product Number - DAC34H84 MAX500 ADS62P42
Voltage - Threshold - - - -
Package - Tape & Reel (TR) Tube Tape & Reel (TR)
Output - - - -

TPS3824-30DBVR Datasheet PDF

Download TPS3824-30DBVR pdf datasheets and Texas Instruments documentation for TPS3824-30DBVR - Texas Instruments.

PCN Assembly/Origin
2.73KHz.pdf
PCN Design/Specification
Copper Wire Revision C 24/Sep/2014.pdf SOT23, VSSOP Cu Wire 28/Jun/2013.pdf
HTML Datasheet
TPS3820,23(A), 24-25, 28 Datasheet.pdf
