HomeProductsDevelopment Boards, Kits, ProgrammersEvaluation Boards - DC/DC & AC/DC (Off-Line) SMPSTPS53119EVM-690

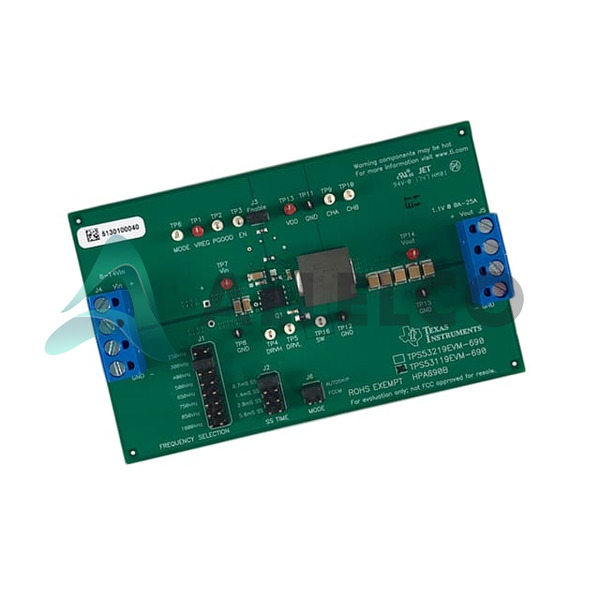

TPS53119EVM-690 Image
TPS53119EVM-690 Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

TPS53119EVM-690 - Texas Instruments

Manufacturer Part Number
TPS53119EVM-690
Manufacturer
Texas Instruments
Allelco Part Number
98D-TPS53119EVM-690
Warranty
1 Year Allelco Warranty - Find out more
Parts Description
EVAL BOARD FOR TPS53119
Package
Bulk
Data sheet
1.TPS53119EVM-690.pdf ...

HTML Datasheet

TPS53119 Datasheet.pdf
RoHs Status
ROHS3 Compliant
Compare
Our certification
In stock: 35497
  • Unit Price: $58.80
  • Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity Unit Price Ext. Price
1+ $58.80 $58.80
The above prices does not include taxes and freight rates, which will be calculated on the order pages.
EXPRESS OPTION
Payment method
Our certification

Specifications

TPS53119EVM-690 Tech Specifications
Texas Instruments - TPS53119EVM-690 technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - TPS53119EVM-690

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage - Output 1.1V
Voltage - Input 8V ~ 14V
Utilized IC / Part TPS53119
Supplied Contents Board(s)
Series -
Regulator Topology Buck
Package Bulk
Product Attribute Attribute Value
Outputs and Type 1, Non-Isolated
Note -
Main Purpose DC/DC, Step Down
Frequency - Switching 300kHz
Current - Output 25A
Board Type Fully Populated
Base Product Number TPS53119

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments TPS53119EVM-690

Product Attribute TPS53119EVM-690 TPS53114EVM-541 TPS53015EVM-126 TPS53124EVM
Part Number TPS53119EVM-690 TPS53114EVM-541 TPS53015EVM-126 TPS53124EVM
Manufacturer Texas Instruments Texas Instruments Texas Instruments Texas Instruments
Supplied Contents Board(s) Board(s) Board(s) Board(s)
Main Purpose DC/DC, Step Down DC/DC, Step Down DC/DC, Step Down DC/DC, Step Down
Current - Output 25A 20A 8A 4A, 4A
Package Bulk Box Box Box
Voltage - Output 1.1V 1.05V 1.05V 1.05V, 1.8V
Voltage - Input 8V ~ 14V 8V ~ 14V 8V ~ 22V 5V ~ 22V
Utilized IC / Part TPS53119 TPS53114 TPS53015 TPS53124
Base Product Number TPS53119 TPS53114 TPS53015 TPS53124
Frequency - Switching 300kHz 350kHz 500kHz 280kHz, 360kHz
Outputs and Type 1, Non-Isolated 1, Non-Isolated 1, Non-Isolated 2, Non-Isolated
Series - D-CAP™ D-CAP2™, Eco-Mode™ -
Regulator Topology Buck Buck Buck Buck
Board Type Fully Populated Fully Populated Fully Populated Fully Populated
Note - - - -

TPS53119EVM-690 Datasheet PDF

Download TPS53119EVM-690 pdf datasheets and Texas Instruments documentation for TPS53119EVM-690 - Texas Instruments.

Datasheets
TPS53119EVM-690 USer Guide.pdf
HTML Datasheet
TPS53119 Datasheet.pdf
