HomeProductsIntegrated Circuits (ICs)PMIC - Voltage Regulators - DC DC Switching RegulatorsTPS54228DRCR

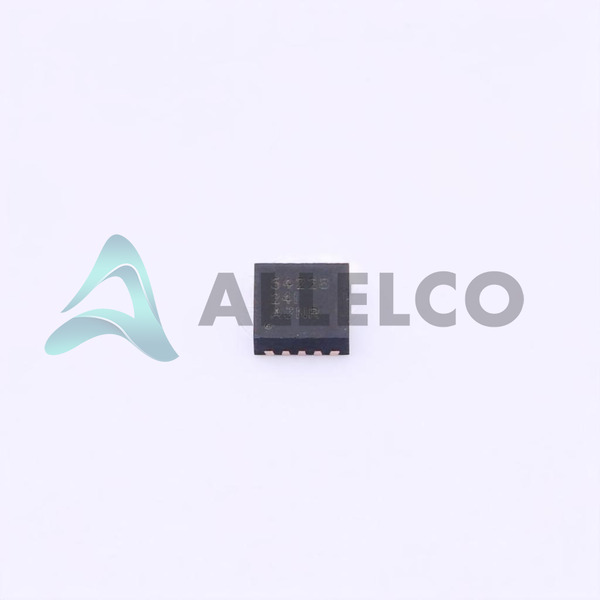

TPS54228DRCR Image
TPS54228DRCR Image - 1TPS54228DRCR Image - 2
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

TPS54228DRCR - Texas Instruments

Manufacturer Part Number
TPS54228DRCR
Manufacturer
Texas Instruments
Allelco Part Number
32D-TPS54228DRCR
Warranty
1 Year Allelco Warranty - Find out more
Parts Description
IC REG BUCK ADJUSTABLE 2A 10VSON
Package
10-VSON (3x3)
Data sheet
1.TPS54228DRCR.pdf ...

PCN Design/Specification

Mult Dev Material Chg 29/Mar/2018.pdf
RoHs Status
ROHS3 Compliant
Compare
Our certification
In stock: 73660
  • Unit Price: $0.526
  • Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity Unit Price Ext. Price
1+ $0.526 $0.53
10+ $0.514 $5.14
30+ $0.506 $15.18
100+ $0.498 $49.80
The above prices does not include taxes and freight rates, which will be calculated on the order pages.
EXPRESS OPTION
Payment method
Our certification

Specifications

TPS54228DRCR Tech Specifications
Texas Instruments - TPS54228DRCR technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - TPS54228DRCR

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage - Output (Min/Fixed) 0.76V
Voltage - Output (Max) 7V
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 18V
Topology Buck
Synchronous Rectifier Yes
Supplier Device Package 10-VSON (3x3)
Series D-CAP2™, Eco-Mode™
Package / Case 10-VFDFN Exposed Pad
Product Attribute Attribute Value
Package Tape & Reel (TR)
Output Type Adjustable
Output Configuration Positive
Operating Temperature -40°C ~ 85°C (TA)
Number of Outputs 1
Mounting Type Surface Mount
Function Step-Down
Frequency - Switching 700kHz
Current - Output 2A
Base Product Number TPS54228

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001

Parts Introduction

Manufacturer Part Number

TPS54228DRCR

Manufacturer

Texas Instruments

Introduction

The TPS54228DRCR by Texas Instruments is a highly efficient, step-down (buck) converter tailored for applications requiring a compact and efficient energy conversion from higher voltages to lower voltages, making it ideal for a wide range of electronic devices.

Product Features and Performance

D-CAP2™ architecture for fast transient response

Eco-Mode™ for enhanced light-load efficiency

Adjustable output voltage for versatile applications

Synchronous rectification for improved efficiency

Capable of delivering 2A continuous output current

Wide input voltage range (4.5V to 18V) for diverse power sources

Adjustable switching frequency of 700kHz

Built-in over-temperature and over-current protection

Product Advantages

High efficiency reduces power loss and heat generation

Compact VFDFN package saves board space

Adjustable features allow customization for specific applications

Integrated features lower the total number of external components required

Key Technical Parameters

Voltage Input (Min): 4.5V

Voltage Input (Max): 18V

Voltage Output (Min/Fixed): 0.76V

Voltage Output (Max): 7V

Current Output: 2A

Frequency Switching: 700kHz

Operating Temperature: -40°C to 85°C

Quality and Safety Features

Over-current protection to prevent damage from excessive currents

Thermal shut down for high-temperature protection

Compatibility

Suitable for a wide range of applications with adjustable output and input specifications

Compatible with various surface mount techniques due to its 10-VFDFN exposed pad package

Application Areas

Power management for computing and networking devices

Consumer electronics like gaming consoles and TVs

Industrial and automotive applications requiring efficient energy conversion

Product Lifecycle

Currently active, indicating ongoing production and support

No indication of nearing discontinuation, ensuring product availability for new designs

Several Key Reasons to Choose This Product

Texas Instruments' reputation for reliability and innovation ensures product quality

Adjustable parameters offer design flexibility for multiple applications

High efficiency and integrated protection features provide a safe, durable power solution

Compact size enables use in space-constrained applications

Active product status ensures availability and manufacturer support

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments TPS54228DRCR

Product Attribute TPS54227DRCR TPS54228DRCT TPS54227DRCT TPS54228DR
Part Number TPS54227DRCR TPS54228DRCT TPS54227DRCT TPS54228DR
Manufacturer Texas Instruments Texas Instruments Texas Instruments Texas Instruments
Supplier Device Package - 196-NFBGA (12x12) 16-PDIP 64-VQFN (9x9)
Series - - - -
