HomeProductsIntegrated Circuits (ICs)PMIC - Voltage Regulators - DC DC Switching RegulatorsTPS54316PWPR

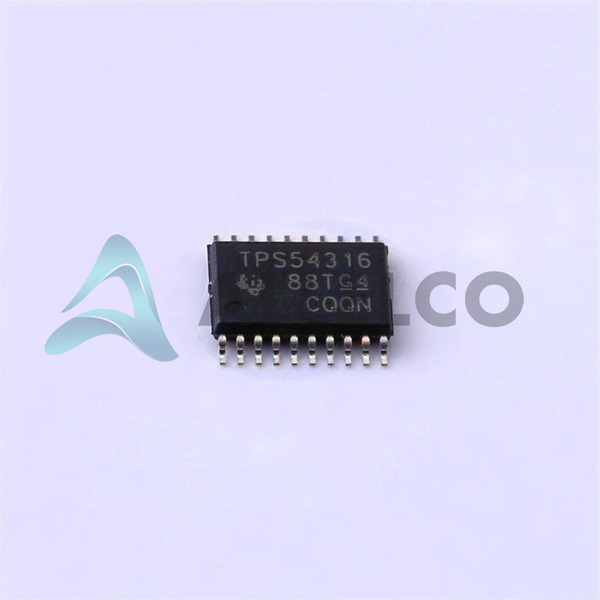

TPS54316PWPR Image
TPS54316PWPR Image - 1TPS54316PWPR Image - 2
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

TPS54316PWPR - Texas Instruments

Manufacturer Part Number
TPS54316PWPR
Manufacturer
Texas Instruments
Allelco Part Number
32D-TPS54316PWPR
Warranty
1 Year Allelco Warranty - Find out more
Parts Description
IC REG BUCK 3.3V 3A 20HTSSOP
Package
20-HTSSOP
Data sheet
1.TPS54316PWPR.pdf ...

Datasheets

TPS54315PWPG4.pdf

PCN Design/Specification

Design 22/Feb/2022.pdf
RoHs Status
ROHS3 Compliant
Compare
Our certification
In stock: 10098
  • Unit Price: $3.796
  • Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity Unit Price Ext. Price
1+ $3.796 $3.80
10+ $3.359 $33.59
30+ $3.094 $92.82
100+ $2.524 $252.40
The above prices does not include taxes and freight rates, which will be calculated on the order pages.
EXPRESS OPTION
Payment method
Our certification

Specifications

TPS54316PWPR Tech Specifications
Texas Instruments - TPS54316PWPR technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - TPS54316PWPR

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage - Output (Min/Fixed) 3.3V
Voltage - Output (Max) -
Voltage - Input (Min) 3V
Voltage - Input (Max) 6V
Topology Buck
Synchronous Rectifier Yes
Supplier Device Package 20-HTSSOP
Series SWIFT™
Package / Case 20-PowerTSSOP (0.173", 4.40mm Width)
Product Attribute Attribute Value
Package Tape & Reel (TR)
Output Type Fixed
Output Configuration Positive
Operating Temperature -40°C ~ 85°C (TA)
Number of Outputs 1
Mounting Type Surface Mount
Function Step-Down
Frequency - Switching 350kHz, 550kHz
Current - Output 3A
Base Product Number TPS54316

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001

Parts Introduction

Manufacturer Part Number

TPS54316PWPR

Manufacturer

Texas Instruments

Introduction

The TPS54316PWPR is a high-performance, fixed-frequency, synchronous buck regulator from Texas Instruments.

Product Features and Performance

Step-Down (Buck) Voltage Regulator

Positive Output Configuration

Integrated Synchronous Rectifier for High Efficiency

Fixed 3.3V Output Voltage

3A Output Current Capability

Selectable Switching Frequency of 350kHz or 550kHz

Thermal Shutdown and Overcurrent Protection

Output Voltage Accuracy

Product Advantages

High-Efficiency Power Conversion

Low Dropout Operation

Small 20-PowerTSSOP Footprint for Space-Constrained Applications

Easy to Use with Minimal External Components

Key Technical Parameters

Input Voltage Range 3V to 6V

Fixed Output Voltage at 3.3V

Maximum Output Current of 3A

Switching Frequencies of 350kHz and 550kHz

Quality and Safety Features

Over-Temperature Protection

Overcurrent Protection

Undervoltage Lockout (UVLO)

Compatibility

Compatible with a Wide Range of Microcontrollers and Digital ICs

Suitable for 3.3V Powered Devices

Application Areas

Telecommunications

Networking Systems

Computers and Computer Peripherals

Industrial Equipment

Product Lifecycle

Status: Active

Not Nearing Discontinuation

Replacements or Upgrades Available

Several Key Reasons to Choose This Product

High Reliability and Robustness for Industrial Applications

Optimized for Low-Voltage, High-Current Operations

Selectable Switching Frequency for Design Flexibility

High Integration Reduces External Component Count

Suitable for Compact PCB Layout

From a Trusted and Leading Semiconductor Manufacturer

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments TPS54316PWPR

Product Attribute TPS54316PWPRG4 TPS54315PWPRG4 TPS54315QPWPREP TPS54316PWPG4
Part Number TPS54316PWPRG4 TPS54315PWPRG4 TPS54315QPWPREP TPS54316PWPG4
Manufacturer Texas Instruments Texas Instruments Texas Instruments Texas Instruments
Supplier Device Package - 196-NFBGA (12x12) 16-PDIP 64-VQFN (9x9)
Voltage - Input (Min) - - - -
Topology - - - -
Number of Outputs - - - -
Base Product Number - DAC34H84 MAX500 ADS62P42
Voltage - Output (Max) - - - -
Voltage - Output (Min/Fixed) - - - -
Package - Tape & Reel (TR) Tube Tape & Reel (TR)
Frequency - Switching - - - -
Package / Case - 196-LFBGA 16-DIP (0.300', 7.62mm) 64-VFQFN Exposed Pad
