HomeProductsIntegrated Circuits (ICs)PMIC - Voltage Regulators - DC DC Switching RegulatorsTPS54328DDAR

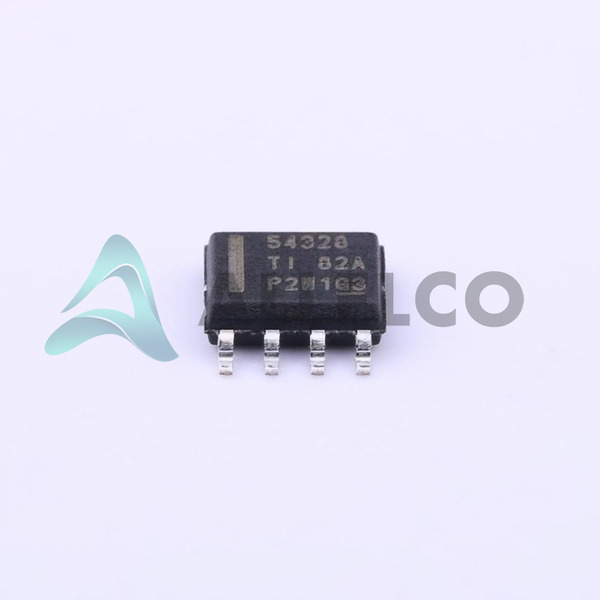

TPS54328DDAR Image
TPS54328DDAR Image - 1TPS54328DDAR Image - 2TPS54328DDAR Image - 3
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

TPS54328DDAR - Texas Instruments

Manufacturer Part Number
TPS54328DDAR
Manufacturer
Texas Instruments
Allelco Part Number
32D-TPS54328DDAR
Warranty
1 Year Allelco Warranty - Find out more
Parts Description
IC REG BUCK ADJUSTABLE 3A 8SOPWR
Package
8-SO PowerPad
Data sheet
1.TPS54328DDAR.pdf ...

HTML Datasheet

TPS54328.pdf
RoHs Status
ROHS3 Compliant
Compare
Our certification
In stock: 46450
  • Unit Price: $0.213
  • Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity Unit Price Ext. Price
1+ $0.213 $0.21
10+ $0.172 $1.72
30+ $0.155 $4.65
100+ $0.133 $13.30
500+ $0.124 $62.00
1000+ $0.118 $118.00
The above prices does not include taxes and freight rates, which will be calculated on the order pages.
EXPRESS OPTION
Payment method
Our certification

Specifications

TPS54328DDAR Tech Specifications
Texas Instruments - TPS54328DDAR technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - TPS54328DDAR

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage - Output (Min/Fixed) 0.76V
Voltage - Output (Max) 7V
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 18V
Topology Buck
Synchronous Rectifier Yes
Supplier Device Package 8-SO PowerPad
Series D-CAP2™, Eco-Mode™
Package / Case 8-PowerSOIC (0.154', 3.90mm Width)
Product Attribute Attribute Value
Package Tape & Reel (TR)
Output Type Adjustable
Output Configuration Positive
Operating Temperature -40°C ~ 85°C (TA)
Number of Outputs 1
Mounting Type Surface Mount
Function Step-Down
Frequency - Switching 700kHz
Current - Output 3A
Base Product Number TPS54328

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001

Parts Introduction

Manufacturer Part Number

TPS54328DDAR

Manufacturer

Texas Instruments

Introduction

The TPS54328DDAR is a high-efficiency, step-down regulator designed to provide adjustable output voltage from an input range of 4.5V to 18V.

Product Features and Performance

High-efficiency buck converter

Adjustable output voltage from 0.76V to 7V

Supports output current up to 3A

700kHz switching frequency for improved efficiency

Incorporates D-CAP2™ and Eco-Mode™ technologies for faster transient response and improved light-load efficiency

Synchronous rectification for enhanced power efficiency

Suitable for surface mount technology

Product Advantages

High efficiency reduces heat generation and improves system reliability

Flexible output voltage settings cater to various application needs

Eco-Mode™ feature ensures low power consumption during light loads

Compact 8-PowerSOIC package saves on board space

Integrated features reduce external component requirements

Key Technical Parameters

Voltage Input (Min): 4.5V

Voltage Input (Max): 18V

Voltage Output (Min/Fixed): 0.76V

Voltage Output (Max): 7V

Current Output: 3A

Frequency Switching: 700kHz

Synchronous Rectifier: Yes

Quality and Safety Features

Built-in thermal shutdown and overcurrent protection

Operational temperature range from -40°C to 85°C

Compatibility

Compatible with a wide range of input voltages (4.5V to 18V)

Flexible for varying output voltage requirements (0.76V to 7V)

Useful in systems requiring a surface mount package

Application Areas

Telecommunication equipment

Computing systems

Consumer electronics

Industrial controls

Product Lifecycle

Status: Active

Not nearing discontinuation

Continuously supported and available for new designs

Several Key Reasons to Choose This Product

High efficiency for reduced power costs and cooler operation

Flexible and adjustable voltage outputs for diverse applications

Eco-Mode™ technology enhances efficiency at light loads

Compact size ideal for space-constrained applications

Reliable performance with integrated protection features

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments TPS54328DDAR

Product Attribute TPS54327DDAR TPS54329DDAR TPS54328DDA TPS54328DRCR
Part Number TPS54327DDAR TPS54329DDAR TPS54328DDA TPS54328DRCR
Manufacturer Texas Instruments Texas Instruments Texas Instruments Texas Instruments
Output Configuration - - - -
Current - Output - - - -
Synchronous Rectifier - - - -
Output Type - Current - Unbuffered Voltage - Buffered -
Series - - - -
Voltage - Output (Min/Fixed) - - - -
Voltage - Input (Max) - - - -
Topology - - - -
Frequency - Switching - - - -
Function - - - -
Voltage - Input (Min) - - - -
Voltage - Output (Max) - - - -
Operating Temperature - -40°C ~ 85°C 0°C ~ 70°C -40°C ~ 85°C
Base Product Number - DAC34H84 MAX500 ADS62P42
Package / Case - 196-LFBGA 16-DIP (0.300', 7.62mm) 64-VFQFN Exposed Pad
Number of Outputs - - - -
Supplier Device Package - 196-NFBGA (12x12) 16-PDIP 64-VQFN (9x9)
Mounting Type - Surface Mount Through Hole Surface Mount
Package - Tape & Reel (TR) Tube Tape & Reel (TR)

TPS54328DDAR Datasheet PDF

Download TPS54328DDAR pdf datasheets and Texas Instruments documentation for TPS54328DDAR - Texas Instruments.

HTML Datasheet
TPS54328.pdf
