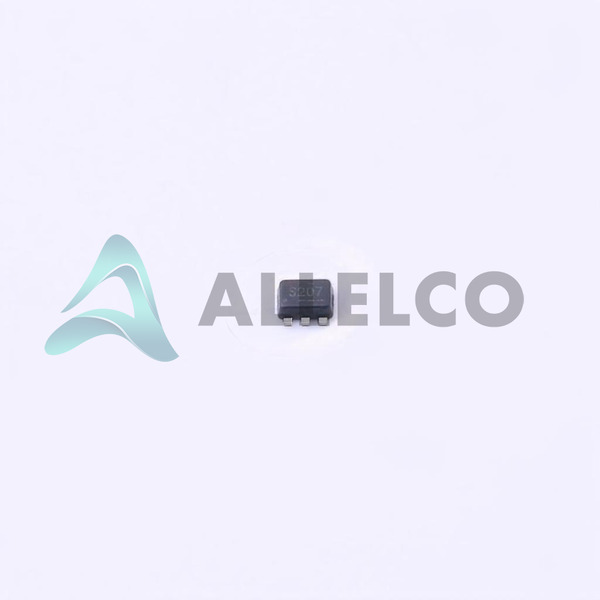

Image may be representation.
See specifications for product details.

~~Favorite~~

EXPRESS OPTION

Payment method

TPS562207SDRLR - Texas Instruments

Name: Texas Instruments TPS562207SDRLR
Brand: Texas Instruments
SKU: TPS562207SDRLR
Availability: InStock
Rating: 5 (2 reviews)

Manufacturer Part Number: TPS562207SDRLR

Manufacturer: Texas Instruments

Allelco Part Number: 32D-TPS562207SDRLR

Warranty: 1 Year Allelco Warranty - Find out more

Parts Description: 4.3-V TO 17-V INPUT, 2-A FCCM MO

Package: SOT-563

Data sheet: 1.TPS562207SDRLR.pdf ...

Datasheets
TPS562207S.pdf

HTML Datasheet
TPS562207S.pdf

~~Compare~~

Our certification

In stock: 135190

EXPRESS OPTION

Payment method

Our certification

Specifications

TPS562207SDRLR Tech Specifications
Texas Instruments - TPS562207SDRLR technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - TPS562207SDRLR

Product Attribute	Attribute Value
Manufacturer	Texas Instruments
Voltage - Output (Min/Fixed)	0.804V
Voltage - Output (Max)	7V
Voltage - Input (Min)	4.3V
Voltage - Input (Max)	17V
Topology	Buck
Synchronous Rectifier	Yes
Supplier Device Package	SOT-563
Series	-
Package / Case	SOT-563, SOT-666

Product Attribute	Attribute Value
Package	Tape & Reel (TR)
Output Type	Adjustable
Output Configuration	Positive
Operating Temperature	-40°C ~ 125°C (TJ)
Number of Outputs	1
Mounting Type	Surface Mount
Function	Step-Down
Frequency - Switching	580kHz
Current - Output	2A
Base Product Number	TPS562207

Environmental & Export Classifications

ATTRIBUTE	DESCRIPTION
RoHs Status	Not applicable
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN	EAR99
HTSUS	8542.39.0001

Parts Introduction

Manufacturer Part Number

TPS562207SDRLR

Manufacturer

Texas Instruments

Introduction

The TPS562207SDRLR is a high-efficiency, step-down DC-DC converter from Texas Instruments, designed for a wide range of applications.

Product Features and Performance

Adjustable output voltage from 0.804V to 7V

2A output current capability

580kHz switching frequency

Synchronous rectification for high efficiency

Wide input voltage range of 4.3V to 17V

Operates over a temperature range of -40°C to 125°C

Small SOT-563 and SOT-666 package options

Product Advantages

High efficiency to minimize power loss

Compact size for space-constrained applications

Wide input and output voltage ranges

Reliable operation across a broad temperature range

Key Technical Parameters

Manufacturer Part Number: TPS562207SDRLR

Output Voltage: Adjustable, 0.804V to 7V

Output Current: 2A

Input Voltage: 4.3V to 17V

Switching Frequency: 580kHz

Topology: Buck

Package: SOT-563, SOT-666

Quality and Safety Features

RoHS compliance

Designed for reliable and safe operation

Compatibility

Compatible with a wide range of electronic systems and devices

Application Areas

Suitable for a variety of power supply applications, including portable electronics, industrial equipment, and more.

Product Lifecycle

This product is currently in production and available for purchase.

Several Key Reasons to Choose This Product

High efficiency and power density for compact designs

Wide input and output voltage ranges for design flexibility

Reliable operation across a broad temperature range

Compact package options for space-constrained applications

Robust design and quality features for long-term reliability

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments TPS562207SDRLR

Product Attribute
Part Number	TPS562202SDRLR	TPS562207DRLR	TPS562202DRLR	TPS562209DDCR
Manufacturer	Texas Instruments	Texas Instruments	Texas Instruments	Texas Instruments
Package / Case	-	196-LFBGA	16-DIP (0.300', 7.62mm)	64-VFQFN Exposed Pad
Synchronous Rectifier	-	-	-	-
Mounting Type	-	Surface Mount	Through Hole	Surface Mount
Supplier Device Package	-	196-NFBGA (12x12)	16-PDIP	64-VQFN (9x9)
Voltage - Input (Min)	-	-	-	-
Package	-	Tape & Reel (TR)	Tube	Tape & Reel (TR)
Number of Outputs	-	-	-	-
Topology	-	-	-	-
Voltage - Output (Min/Fixed)	-	-	-	-
Base Product Number	-	DAC34H84	MAX500	ADS62P42
Frequency - Switching	-	-	-	-
Output Type	-	Current - Unbuffered	Voltage - Buffered	-
Operating Temperature	-	-40°C ~ 85°C	0°C ~ 70°C	-40°C ~ 85°C
Current - Output	-	-	-	-
Voltage - Output (Max)	-	-	-	-
Series	-	-	-	-
Function	-	-	-	-
Output Configuration	-	-	-	-
Voltage - Input (Max)	-	-	-	-

TPS562207SDRLR Datasheet PDF

Download TPS562207SDRLR pdf datasheets and Texas Instruments documentation for TPS562207SDRLR - Texas Instruments.

Datasheets: TPS562207S.pdf
HTML Datasheet: TPS562207S.pdf
