HomeProductsIntegrated Circuits (ICs)PMIC - Voltage Regulators - DC DC Switching RegulatorsTPS563201DDCR

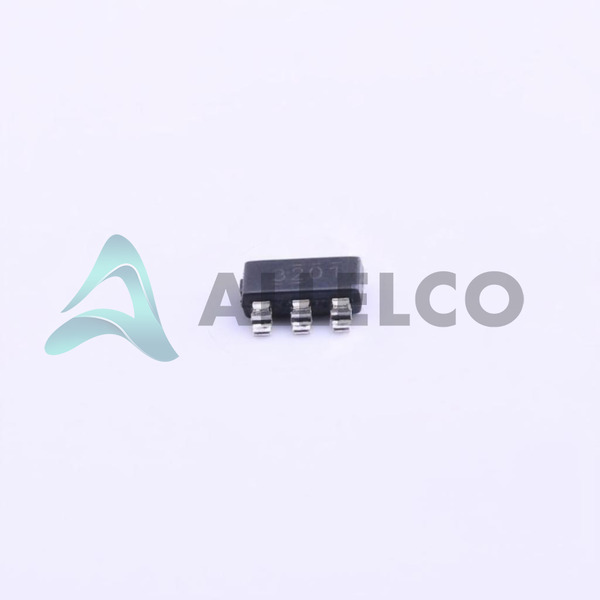

TPS563201DDCR Image
TPS563201DDCR Image - 1TPS563201DDCR Image - 2TPS563201DDCR Image - 3
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

TPS563201DDCR - Texas Instruments

Manufacturer Part Number
TPS563201DDCR
Manufacturer
Texas Instruments
Allelco Part Number
32D-TPS563201DDCR
Warranty
1 Year Allelco Warranty - Find out more
Parts Description
IC REG BUCK ADJ 3A TSOT23-6
Package
SOT-23-THIN
Data sheet
1.TPS563201DDCR.pdf ...

PCN Packaging

2.73KHz.pdf

PCN Assembly/Origin

2.73KHz.pdf
RoHs Status
ROHS3 Compliant
Compare
Our certification
In stock: 314720
  • Unit Price: $0.041
  • Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity Unit Price Ext. Price
5+ $0.041 $0.21
50+ $0.033 $1.65
150+ $0.029 $4.35
500+ $0.026 $13.00
3000+ $0.025 $75.00
6000+ $0.024 $144.00
The above prices does not include taxes and freight rates, which will be calculated on the order pages.
EXPRESS OPTION
Payment method
Our certification

Specifications

TPS563201DDCR Tech Specifications
Texas Instruments - TPS563201DDCR technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - TPS563201DDCR

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage - Output (Min/Fixed) 0.768V
Voltage - Output (Max) 7V
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 17V
Topology Buck
Synchronous Rectifier Yes
Supplier Device Package SOT-23-THIN
Series D-CAP2™, Eco-Mode™
Package / Case SOT-23-6 Thin, TSOT-23-6
Product Attribute Attribute Value
Package Tape & Reel (TR)
Output Type Adjustable
Output Configuration Positive
Operating Temperature -40°C ~ 125°C (TJ)
Number of Outputs 1
Mounting Type Surface Mount
Function Step-Down
Frequency - Switching 580kHz
Current - Output 3A
Base Product Number TPS563201

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001

Parts Introduction

Manufacturer Part Number

TPS563201DDCR

Manufacturer

Texas Instruments

Introduction

The TPS563201DDCR is a step-down (buck) regulator designed to provide efficient power management.

Product Features and Performance

D-CAP2™ and Eco-Mode™ for efficient power conversion

Adjustable output voltage range from 0.768V to 7V

Capable of delivering up to 3A of output current

Input voltage range from 4.5V to 17V

High-frequency switching at 580kHz

Integrates a synchronous rectifier for improved efficiency

Operates over a wide temperature range of -40°C to 125°C

Product Advantages

High efficiency through D-CAP2™ control mode and Eco-Mode™

Flexible power solution with a wide input voltage range

Compact SOT-23-6 package suits space-constrained applications

Key Technical Parameters

Voltage Input (Min): 4.5V

Voltage Input (Max): 17V

Voltage Output (Min/Fixed): 0.768V

Voltage Output (Max): 7V

Current Output: 3A

Frequency Switching: 580kHz

Operating Temperature: -40°C to 125°C

Quality and Safety Features

Designed to meet stringent quality standards

Offers thermal shutdown and over-current protection features

Compatibility

Compatible with a wide range of circuits requiring adjustable power supplies

Application Areas

Computing

Consumer Electronics

Industrial Power Systems

Telecommunications

Product Lifecycle

Status: Active

Not currently nearing discontinuation, ensuring long-term availability

Several Key Reasons to Choose This Product

High-efficiency power conversion reduces energy loss

Wide input and adjustable output voltage range provide flexibility in design

Compact package size is ideal for space-constrained applications

Integrated safety features enhance reliability

Active product status ensures ongoing support and availability

Designed by Texas Instruments, a leader in semiconductor solutions
