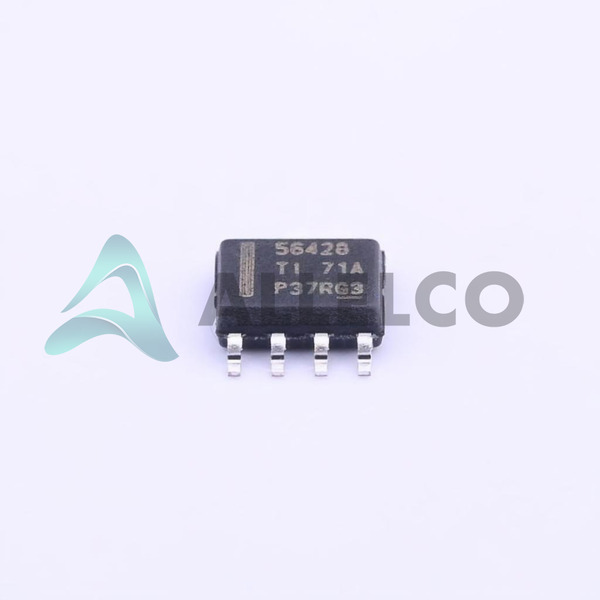

TPS56428DDAR Image
TPS56428DDAR Image - 1TPS56428DDAR Image - 2TPS56428DDAR Image - 3
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

TPS56428DDAR - Texas Instruments

Manufacturer Part Number
TPS56428DDAR
Manufacturer
Texas Instruments
Allelco Part Number
32D-TPS56428DDAR
Warranty
1 Year Allelco Warranty - Find out more
Parts Description
IC REG BUCK ADJUSTABLE 4A 8SOPWR
Package
8-SO PowerPad
Data sheet
1.TPS56428DDAR.pdf ...

PCN Assembly/Origin

2.73KHz.pdf

HTML Datasheet

TPS56428.pdf

PCN Design/Specification

Cylindrical Battery Holders.pdf
RoHs Status
ROHS3 Compliant
Compare
Our certification
In stock: 46840
  • Unit Price: $0.513
  • Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity Unit Price Ext. Price
1+ $0.513 $0.51
10+ $0.428 $4.28
30+ $0.372 $11.16
100+ $0.329 $32.90
500+ $0.304 $152.00
1000+ $0.291 $291.00
The above prices does not include taxes and freight rates, which will be calculated on the order pages.
EXPRESS OPTION
Payment method
Our certification

Specifications

TPS56428DDAR Tech Specifications
Texas Instruments - TPS56428DDAR technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - TPS56428DDAR

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage - Output (Min/Fixed) 0.6V
Voltage - Output (Max) 7V
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 18V
Topology Buck
Synchronous Rectifier Yes
Supplier Device Package 8-SO PowerPad
Series D-CAP2™, Eco-Mode™
Package / Case 8-PowerSOIC (0.154', 3.90mm Width)
Product Attribute Attribute Value
Package Tape & Reel (TR)
Output Type Adjustable
Output Configuration Positive
Operating Temperature -40°C ~ 85°C (TA)
Number of Outputs 1
Mounting Type Surface Mount
Function Step-Down
Frequency - Switching 650kHz
Current - Output 4A
Base Product Number TPS56428

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001

Parts Introduction

Manufacturer Part Number

TPS56428DDAR

Manufacturer

Texas Instruments

Introduction

The TPS56428DDAR is a high-efficiency synchronous step-down DC/DC converter from Texas Instruments suitable for various applications requiring efficient voltage regulation.

Product Features and Performance

Integrated D-CAP2™ control for fast transient response.

Eco-Mode™ for light load efficiency.

Adjustable output voltage range from 0.6V to 7V.

Supports up to 4A of output current.

Wide input voltage range from 4.5V to 18V.

650kHz switching frequency for optimal balance between efficiency and component size.

Synchronous rectification for improved efficiency.

Thermal shutdown and overcurrent protection.

Product Advantages

High integration reduces external component count.

Fast load transient response suitable for high-performance applications.

Improved efficiency at light loads with Eco-Mode™.

Key Technical Parameters

Output Type: Adjustable

Number of Outputs: 1

Voltage - Input (Min): 4.5V

Voltage - Input (Max): 18V

Voltage - Output (Min/Fixed): 0.6V

Voltage - Output (Max): 7V

Current - Output: 4A

Frequency - Switching: 650kHz

Synchronous Rectifier: Yes

Operating Temperature: -40°C ~ 85°C

Quality and Safety Features

Overcurrent protection.

Thermal shutdown.

Under voltage lockout.

Compatibility

Compatible with a wide range of input voltages.

Suitable for various applications requiring a 4A output current capability.

Surface mount device with PowerSOIC package.

Application Areas

Distributed Power Systems

Telecommunications

Networking Equipment

FPGAs, DSPs, and Microprocessors

Product Lifecycle

Active product status.

Not listed as nearing discontinuation.

Replacement and upgrade options not specified.

Several Key Reasons to Choose This Product

Highly efficient, reducing power loss and heat generation.

D-CAP2™ and Eco-Mode™ offer both high performance and energy savings.

Wide input voltage range compatible with various power supplies.

Simplified design with integrated high-side and low-side MOSFETs.

Protections enhance the reliability and longevity of the device.

Industry-standard package compatible with standard PCB manufacturing processes.
