HomeProductsDevelopment Boards, Kits, ProgrammersEvaluation Boards - DC/DC & AC/DC (Off-Line) SMPSTPS62743EVM-689

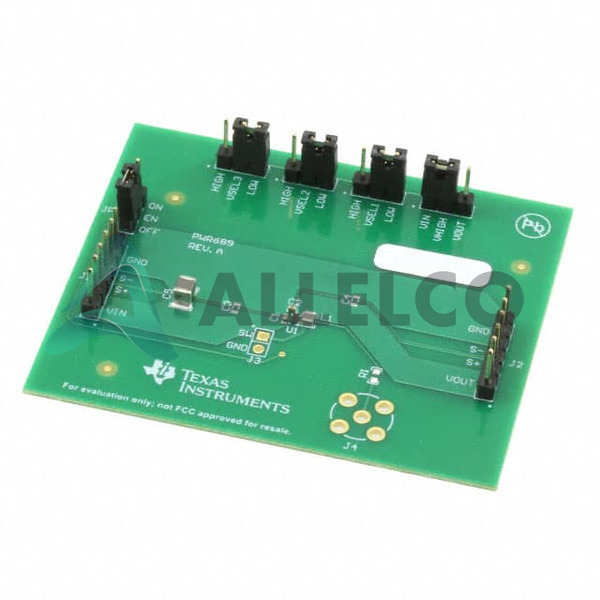

TPS62743EVM-689 Image
TPS62743EVM-689 Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

TPS62743EVM-689 - Texas Instruments

Manufacturer Part Number
TPS62743EVM-689
Manufacturer
Texas Instruments
Allelco Part Number
98D-TPS62743EVM-689
Warranty
1 Year Allelco Warranty - Find out more
Parts Description
EVAL MODULE TPS62743
Package
Box
Data sheet
1.TPS62743EVM-689.pdf ...

HTML Datasheet

TPS62743(1) Datasheet.pdf
Compare
Our certification
In stock: 39227
  • Unit Price: $58.80
  • Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity Unit Price Ext. Price
1+ $58.80 $58.80
The above prices does not include taxes and freight rates, which will be calculated on the order pages.
EXPRESS OPTION
Payment method
Our certification

Specifications

TPS62743EVM-689 Tech Specifications
Texas Instruments - TPS62743EVM-689 technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - TPS62743EVM-689

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage - Output 1.2V ~ 3.3V
Voltage - Input 2V ~ 5.5V
Utilized IC / Part TPS62743
Supplied Contents Board(s)
Series -
Regulator Topology Buck
Product Attribute Attribute Value
Package Box
Outputs and Type 1, Non-Isolated
Main Purpose DC/DC, Step Down
Frequency - Switching 1.2MHz
Current - Output 300mA
Board Type Fully Populated
Base Product Number TPS62743

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status Not applicable
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments TPS62743EVM-689

Product Attribute TPS62743EVM-689 TPS62740EVM-186 TPS62745DSST TPS627451DSSR
Part Number TPS62743EVM-689 TPS62740EVM-186 TPS62745DSST TPS627451DSSR
Manufacturer Texas Instruments Texas Instruments Texas Instruments Texas Instruments
Utilized IC / Part TPS62743 TPS62740 - -
Regulator Topology Buck Buck - -
Voltage - Output 1.2V ~ 3.3V 1.8V ~ 3.3V - -
Outputs and Type 1, Non-Isolated 1, Non-Isolated - -
Board Type Fully Populated Fully Populated - -
Voltage - Input 2V ~ 5.5V 2.2V ~ 5.5V - -
Frequency - Switching 1.2MHz - Up to 2.5MHz Up to 2.5MHz
Base Product Number TPS62743 TPS62740 TPS62745 TPS627451
Main Purpose DC/DC, Step Down DC/DC, Step Down - -
Current - Output 300mA 300mA 300mA 300mA
Package Box Box Tape & Reel (TR) Tape & Reel (TR)
Series - DCS-Control™ DCS-Control™ DCS-Control™
Supplied Contents Board(s) Board(s) - -
