Manufacturer Part Number

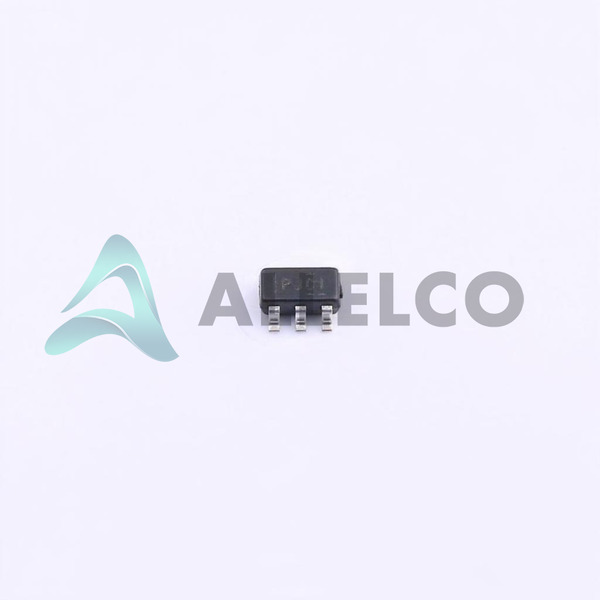

TPS64202DBVR
Manufacturer
Texas Instruments
Introduction
The TPS64202DBVR is a step-down (buck) switching controller designed for power management, specially catered to systems requiring a high-efficiency, low-power solution.
Product Features and Performance
High-efficiency step-down voltage conversion.
Adjustable output voltage capable of generating a positive or negative supply.
Can work within a supply voltage range of 1.8V to 6.5V.
Supports a maximum duty cycle of 100% for increased flexibility in low voltage applications.
Designed with simplicity in mind, lacking synchronous rectification and clock synchronization for straightforward applications.
Features an enable control for efficient power use.
Product Advantages
Flexibility in handling both positive or negative output configurations.
Wide voltage supply range accommodates a variety of power sources.
Maximum duty cycle of 100% enhances its applicability in low voltage scenarios.
Simple control features cater to easy implementation and power optimization.
Key Technical Parameters
Voltage Supply (Vcc/Vdd): 1.8V ~ 6.5V
Output Type: Transistor Driver
Topology: Buck
Number of Outputs: 1
Output Configuration: Positive or Negative
Duty Cycle (Max): 100%
Operating Temperature: -40°C ~ 85°C (TA)
Mounting Type: Surface Mount
Package / Case: SOT-23-6
Quality and Safety Features
Designed to operate within a wide range of temperatures (-40°C to 85°C), ensuring reliability under different environmental conditions.
Compatibility
Its SOT-23-6 package makes it easily integrated into various circuit designs.
Application Areas
Ideal for battery-powered devices, portable electronics, and low-power applications requiring efficient power conversion.
Product Lifecycle
This product is currently active and widely available, with no immediate indication of discontinuation. Users can expect ongoing support and availability.
Several Key Reasons to Choose This Product
High efficiency and flexibility suitable for a broad spectrum of low-power applications.
Wide supply voltage range accommodates numerous power sources.
Easy to implement in a variety of circuit configurations due to its simple control feature set and standard package.
Reliable operation within a wide temperature range ensures performance in varied environments.
Active product status with Texas Instruments' reputation for quality and support offers confidence in long-term usability and support.
