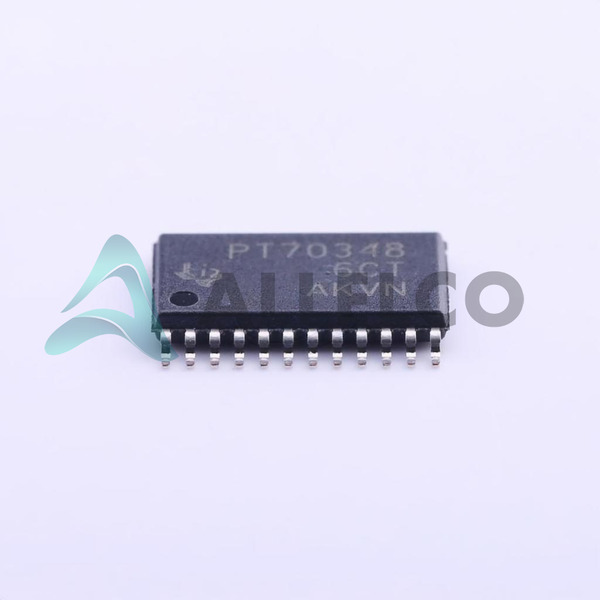

Image may be representation.
See specifications for product details.

~~Favorite~~

EXPRESS OPTION

Payment method

TPS70348PWP - Texas Instruments

Name: Texas Instruments TPS70348PWP
Brand: Texas Instruments
SKU: TPS70348PWP
Availability: InStock
Rating: 5 (7 reviews)

Manufacturer Part Number: TPS70348PWP

Manufacturer: Texas Instruments

Allelco Part Number: 32D-TPS70348PWP

Warranty: 1 Year Allelco Warranty - Find out more

Parts Description: IC REG LINEAR 3.3V/1.5V 24HTSSOP

Package: 24-HTSSOP

Data sheet: 1.TPS70348PWP.pdf ...

Datasheets
TPS70348PWPG4.pdf

PCN Design/Specification
Design 22/Feb/2022.pdf

RoHs Status: ROHS3 Compliant

~~Compare~~

Our certification

In stock: 7098

EXPRESS OPTION

Payment method

Our certification

Specifications

TPS70348PWP Tech Specifications
Texas Instruments - TPS70348PWP technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - TPS70348PWP

Product Attribute	Attribute Value
Manufacturer	Texas Instruments
Voltage Dropout (Max)	0.25V @ 1A, -
Voltage - Output (Min/Fixed)	3.3V, 1.5V
Voltage - Output (Max)	-
Voltage - Input (Max)	6V
Supplier Device Package	24-HTSSOP
Series	-
Protection Features	Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO)
Package / Case	24-PowerTSSOP (0.173", 4.40mm Width)
Package	Tube

Product Attribute	Attribute Value
PSRR	65dB (1kHz), 60dB (1kHz)
Output Type	Fixed
Output Configuration	Positive
Operating Temperature	-40°C ~ 125°C
Number of Regulators	2
Mounting Type	Surface Mount
Current - Quiescent (Iq)	250 µA
Current - Output	1A, 2A
Control Features	Enable, Power Good, Reset, Sequencing
Base Product Number	TPS70348

Environmental & Export Classifications

ATTRIBUTE	DESCRIPTION
RoHs Status	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	2 (1 Year)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8542.39.0001

Parts Introduction

Manufacturer Part Number

TPS70348PWP

Manufacturer

Texas Instruments

Introduction

Dual-output LDO voltage regulator for power management applications

Product Features and Performance

Two LDO regulators in one package

Fixed output voltages of 3.3V and 1.5V

Maximum input voltage of 6V

Output current capability of 1A for 3.3V and 2A for 1.5V

Low dropout voltage of 0.25V at 1A load

Quiescent current of 250 µA

Power Supply Rejection Ratio (PSRR) of 65dB at 1kHz for 3.3V output and 60dB at 1kHz for 1.5V output

Surface mount 24-PowerTSSOP package conducive for space-saving design

Product Advantages

Dual regulator design simplifies power system complexity

High PSRR ensures clean output voltage, reducing noise

Low dropout voltage allows for efficient operation even with low input-to-output differentials

Low quiescent current contributes to energy saving in standby mode

Key Technical Parameters

Input Voltage (Max): 6V

Output Voltage (Min/Fixed): 3.3V, 1.5V

Current - Output: 1A, 2A

Voltage Dropout (Max): 0.25V @ 1A

Quiescent Current (Iq): 250 µA

PSRR: 65dB at 1kHz for 3.3V output, 60dB at 1kHz for 1.5V output

Quality and Safety Features

Over Current Protection

Over Temperature Protection

Reverse Polarity Protection

Under Voltage Lockout (UVLO)

Compatibility

Compatible with multiple electronic applications requiring fixed 3.3V and/or 1.5V supply

Application Areas

Consumer electronics

Telecommunications

Industrial control systems

Portable devices

Product Lifecycle

Active status with no indication of nearing discontinuation

Options for replacements or upgrades should be verified with the manufacturer

Several Key Reasons to Choose This Product

Integration of two LDOs reduces peripheral components and simplifies design

High PSRR for noise sensitive applications

Energy-efficient with low quiescent current and low dropout

Broad range of protection features ensuring system reliability and safety

Suitable for diverse applications and industries

Long operating temperature range suitable for harsh environments

Industry-leading manufacturer with proven track record in power management solutions

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments TPS70348PWP

Product Attribute
Part Number	TPS70348PWPG4	TPS70345PWPG4	TPS70345PWPR	TPS70345PWP
Manufacturer	Luminary Micro / Texas Instruments	Texas Instruments	Texas Instruments	Texas Instruments
Mounting Type	-	Surface Mount	Through Hole	Surface Mount
Package	-	Tape & Reel (TR)	Tube	Tape & Reel (TR)
Voltage - Output (Max)	-	-	-	-
Control Features	-	-	-	-
Package / Case	-	196-LFBGA	16-DIP (0.300', 7.62mm)	64-VFQFN Exposed Pad
Voltage - Output (Min/Fixed)	-	-	-	-
Current - Quiescent (Iq)	-	-	-	-
Supplier Device Package	-	196-NFBGA (12x12)	16-PDIP	64-VQFN (9x9)
Voltage Dropout (Max)	-	-	-	-
Base Product Number	-	DAC34H84	MAX500	ADS62P42
Operating Temperature	-	-40°C ~ 85°C	0°C ~ 70°C	-40°C ~ 85°C
Output Configuration	-	-	-	-
Voltage - Input (Max)	-	-	-	-
Protection Features	-	-	-	-
Series	-	-	-	-
Output Type	-	Current - Unbuffered	Voltage - Buffered	-
PSRR	-	-	-	-
Current - Output	-	-	-	-
Number of Regulators	-	-	-	-

TPS70348PWP Datasheet PDF

Download TPS70348PWP pdf datasheets and Texas Instruments documentation for TPS70348PWP - Texas Instruments.

Datasheets: TPS70348PWPG4.pdf
PCN Design/Specification: Design 22/Feb/2022.pdf
