HomeProductsIntegrated Circuits (ICs)PMIC - Voltage Regulators - LinearTPS709B50DBVR

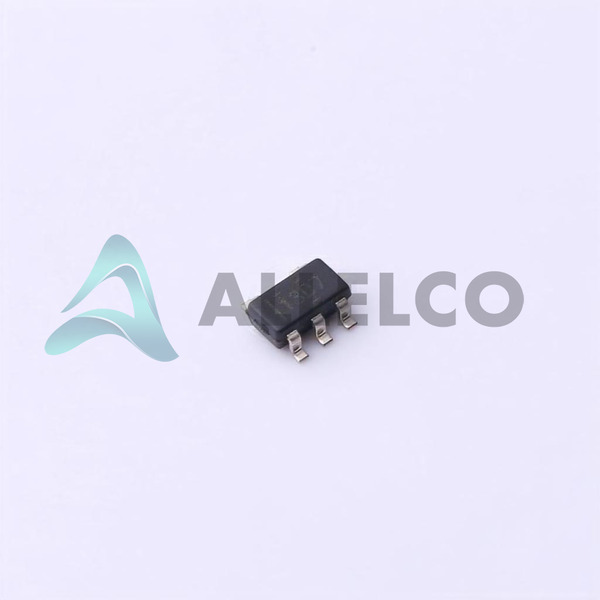

TPS709B50DBVR Image
TPS709B50DBVR Image - 1TPS709B50DBVR Image - 2
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

TPS709B50DBVR - Texas Instruments

Manufacturer Part Number
TPS709B50DBVR
Manufacturer
Texas Instruments
Allelco Part Number
32D-TPS709B50DBVR
Warranty
1 Year Allelco Warranty - Find out more
Parts Description
IC REG LINEAR 5V 150MA SOT23-5
Package
SOT-23-5
Data sheet
1.TPS709B50DBVR.pdf ...

PCN Assembly/Origin

2.73KHz.pdf

HTML Datasheet

TPS709 Datasheet.pdf
RoHs Status
ROHS3 Compliant
Compare
Our certification
In stock: 69490
  • Unit Price: $0.93
  • Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity Unit Price Ext. Price
1+ $0.93 $0.93
10+ $0.787 $7.87
30+ $0.708 $21.24
100+ $0.567 $56.70
500+ $0.527 $263.50
1000+ $0.509 $509.00
The above prices does not include taxes and freight rates, which will be calculated on the order pages.
EXPRESS OPTION
Payment method
Our certification

Specifications

TPS709B50DBVR Tech Specifications
Texas Instruments - TPS709B50DBVR technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - TPS709B50DBVR

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage Dropout (Max) 1.2V @ 150mA
Voltage - Output (Min/Fixed) 5V
Voltage - Output (Max) -
Voltage - Input (Max) 30V
Supplier Device Package SOT-23-5
Series -
Protection Features Over Current, Over Temperature, Reverse Current, Under Voltage Lockout (UVLO)
Package / Case SC-74A, SOT-753
Package Tape & Reel (TR)
PSRR 80dB ~ 52dB (10Hz ~ 1kHz)
Product Attribute Attribute Value
Output Type Fixed
Output Configuration Positive
Operating Temperature -40°C ~ 125°C
Number of Regulators 1
Mounting Type Surface Mount
Current - Supply (Max) 350 µA
Current - Quiescent (Iq) 2.05 µA
Current - Output 150mA
Control Features Enable
Base Product Number TPS709

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001

Parts Introduction

Manufacturer Part Number

TPS709B50DBVR

Manufacturer

Texas Instruments

Introduction

The TPS709B50DBVR is a high-performance, low-dropout voltage regulator from Texas Instruments, designed for a wide range of power management applications.

Product Features and Performance

Fixed 5V output with maximum input voltage of 30V

Low dropout voltage of 1.2V at 150mA output

Low quiescent current of 2.05 µA, optimizing battery life

High PSRR of 80dB to 52dB from 10Hz to 1kHz, ensuring stable operation under varying load and input conditions

Current output capability of 150mA suitable for a variety of low-power devices

Inclusion of Enable control feature for improved power management

Product Advantages

High efficiency at low dropout voltages

Extended battery life due to ultra-low quiescent current

Enhanced device protection through Over Current, Over Temperature, Reverse Current, and UVLO safety features

Stable output performance across a wide range of frequencies

Key Technical Parameters

Voltage Input (Max): 30V

Voltage Output (Min/Fixed): 5V

Voltage Dropout (Max): 1.2V @ 150mA

Current Output: 150mA

Current Quiescent (Iq): 2.05 µA

PSRR: 80dB ~ 52dB (10Hz ~ 1kHz)

Quality and Safety Features

Over Current Protection

Over Temperature Protection

Reverse Current Protection

Under Voltage Lockout (UVLO)

Compatibility

Surface Mount SC-74A, SOT-753 package for straightforward PCB integration

Application Areas

Power supply circuits in consumer electronics

Portable and battery-powered devices

IoT devices requiring efficient power management

Product Lifecycle

Currently in Active status; not nearing discontinuation, ensuring long-term availability and support

Several Key Reasons to Choose This Product

Texas Instruments' reliability and support

Ultra-low power consumption enhances battery life in portable devices

High PSRR ensures stable performance in fluctuating power environments

Comprehensive protection features safeguard against common electrical faults

Surface-mount package compatible with modern PCB designs

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments TPS709B50DBVR

Product Attribute TPS709B345DBVR TPS709B33DBVR TPS709A30DBVR TPS709A33DBVR
Part Number TPS709B345DBVR TPS709B33DBVR TPS709A30DBVR TPS709A33DBVR
Manufacturer Texas Instruments Texas Instruments Texas Instruments Texas Instruments
Package - Tape & Reel (TR) Tube Tape & Reel (TR)
Current - Quiescent (Iq) - - - -
Supplier Device Package - 196-NFBGA (12x12) 16-PDIP 64-VQFN (9x9)
PSRR - - - -
Current - Supply (Max) - - - -
Mounting Type - Surface Mount Through Hole Surface Mount
Package / Case - 196-LFBGA 16-DIP (0.300', 7.62mm) 64-VFQFN Exposed Pad
Series - - - -
Base Product Number - DAC34H84 MAX500 ADS62P42
Voltage - Output (Max) - - - -
Control Features - - - -
Protection Features - - - -
Current - Output - - - -
Voltage - Output (Min/Fixed) - - - -
Output Configuration - - - -
Number of Regulators - - - -
Operating Temperature - -40°C ~ 85°C 0°C ~ 70°C -40°C ~ 85°C
Voltage - Input (Max) - - - -
Voltage Dropout (Max) - - - -
Output Type - Current - Unbuffered Voltage - Buffered -

TPS709B50DBVR Datasheet PDF

Download TPS709B50DBVR pdf datasheets and Texas Instruments documentation for TPS709B50DBVR - Texas Instruments.

PCN Assembly/Origin
2.73KHz.pdf
HTML Datasheet
TPS709 Datasheet.pdf
Design Resources
Polyphase Shunt Metrology with Isolated AFE Refere.pdf
