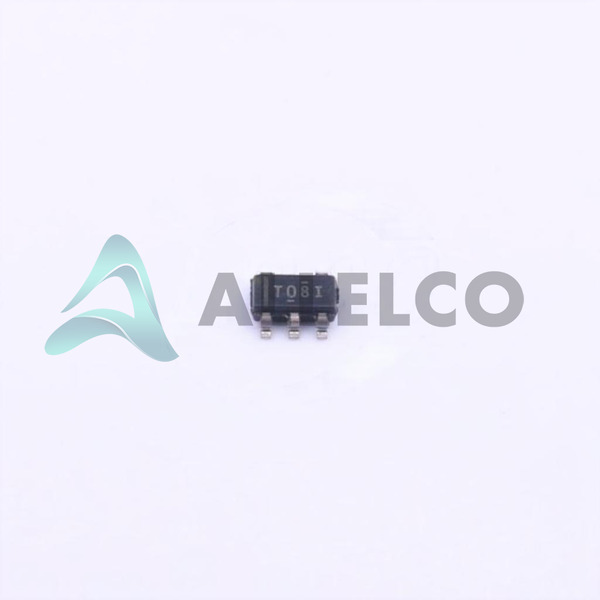

TPS72301DDCR Image
TPS72301DDCR Image - 1TPS72301DDCR Image - 2
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

TPS72301DDCR - Texas Instruments

Manufacturer Part Number
TPS72301DDCR
Manufacturer
Texas Instruments
Allelco Part Number
32D-TPS72301DDCR
Warranty
1 Year Allelco Warranty - Find out more
Parts Description
IC REG LIN NEG ADJ 200MA SOT23-5
Package
SOT-23-THIN
Data sheet
-
RoHs Status
ROHS3 Compliant
Compare
Our certification
In stock: 32047
  • Unit Price: $1.449
  • Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity Unit Price Ext. Price
1+ $1.449 $1.45
10+ $1.252 $12.52
30+ $1.128 $33.84
100+ $1.012 $101.20
500+ $0.954 $477.00
1000+ $0.929 $929.00
The above prices does not include taxes and freight rates, which will be calculated on the order pages.
EXPRESS OPTION
Payment method
Our certification

Specifications

TPS72301DDCR Tech Specifications
Texas Instruments - TPS72301DDCR technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - TPS72301DDCR

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage Dropout (Max) 0.5V @ 200mA
Voltage - Output (Min/Fixed) -1.2V
Voltage - Output (Max) -10V
Voltage - Input (Max) -10V
Supplier Device Package SOT-23-THIN
Series -
Protection Features Over Current, Over Temperature, Short Circuit
Package / Case SOT-23-5 Thin, TSOT-23-5
Package Tape & Reel (TR)
PSRR 65dB ~ 48dB (1kHz ~ 10kHz)
Product Attribute Attribute Value
Output Type Adjustable
Output Configuration Negative
Operating Temperature -40°C ~ 125°C
Number of Regulators 1
Mounting Type Surface Mount
Current - Supply (Max) 500 µA
Current - Quiescent (Iq) 200 µA
Current - Output 200mA
Control Features Enable
Base Product Number TPS72301

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001

Parts Introduction

Manufacturer Part Number

TPS72301DDCR

Manufacturer

Texas Instruments

Introduction

Low dropout regulator for power-sensitive applications

Product Features and Performance

Negative output voltage regulator

Adjustable output from -1.2V to -10V

Up to 200mA output current

Low dropout voltage of 0.5V at 200mA load

Low quiescent current of 200 µA

Good power supply rejection ratio (PSRR) of 65dB to 48dB between 1kHz and 10kHz

Integrated enable control feature

Thermal and overcurrent protection

Short circuit protection

Works within a wide operating temperature range from -40°C to 125°C

Surface mount SOT-23-5 THIN package

Product Advantages

Low dropout voltage for better efficiency

Low quiescent current suitable for battery-operated devices

Built-in protection features enhance reliability

High PSRR ensures stable operation in noisy environments

Key Technical Parameters

Input Voltage (Max): -10V

Output Voltage (Min/Fixed): -1.2V

Output Voltage (Max): -10V

Output Current: 200mA

Quiescent Current: 200 µA

Supply Current (Max): 500 µA

Dropout Voltage (Max): 0.5V

Control Features: Enable

Protection Features: Overcurrent, Over Temperature, Short Circuit

Quality and Safety Features

Integrated protection features to prevent damage

Thermal overload protection

Overcurrent protection

Short circuit protection

High-temperature operational capability

Compatibility

Suitable for use with a variety of negative voltage applications

Application Areas

Battery-powered devices

Portable electronics

Sensor systems

Low-voltage microcontrollers

Product Lifecycle

Last Time Buy status

Potential for replacements or upgrades available

Several Key Reasons to Choose This Product

Optimal for power-sensitive applications due to low quiescent current

Reliability enhanced by comprehensive protection features

Suitable for a wide range of temperatures, making it versatile for different environments

Texas Instruments' reputation for quality and support

Adjustability of output voltage provides design flexibility

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments TPS72301DDCR

Product Attribute TPS72301DDCT TPS72301DBVRG4 TPS72301DBVR TPS72301DRVT
Part Number TPS72301DDCT TPS72301DBVRG4 TPS72301DBVR TPS72301DRVT
Manufacturer Texas Instruments Texas Instruments Texas Instruments Texas Instruments
Package - Tape & Reel (TR) Tube Tape & Reel (TR)
Voltage - Input (Max) - - - -
Supplier Device Package - 196-NFBGA (12x12) 16-PDIP 64-VQFN (9x9)
Series - - - -
PSRR - - - -
Package / Case - 196-LFBGA 16-DIP (0.300', 7.62mm) 64-VFQFN Exposed Pad
Current - Quiescent (Iq) - - - -
Operating Temperature - -40°C ~ 85°C 0°C ~ 70°C -40°C ~ 85°C
Base Product Number - DAC34H84 MAX500 ADS62P42
Output Type - Current - Unbuffered Voltage - Buffered -
Voltage Dropout (Max) - - - -
Mounting Type - Surface Mount Through Hole Surface Mount
Current - Output - - - -
Number of Regulators - - - -
Voltage - Output (Min/Fixed) - - - -
Current - Supply (Max) - - - -
Control Features - - - -
Protection Features - - - -
Output Configuration - - - -
