Manufacturer Part Number

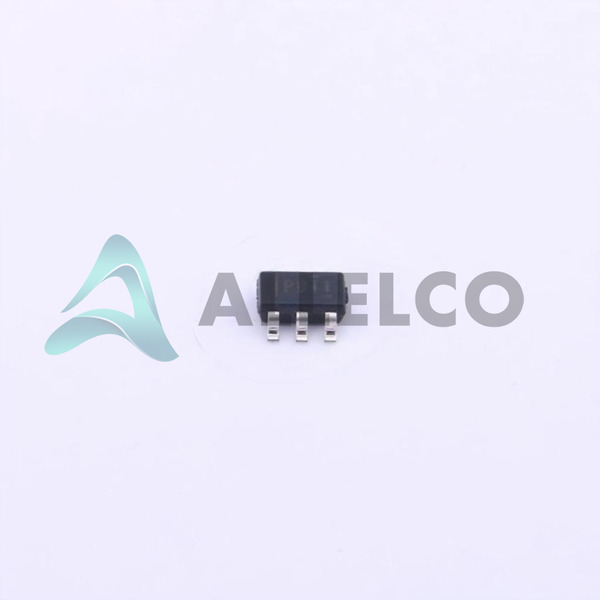

TPS76330DBVT
Manufacturer
Texas Instruments
Introduction
The TPS76330DBVT is a low dropout regulator designed for power-sensitive applications, offering high power efficiency.
Product Features and Performance
Positive fixed output configuration.
Single regulator with an output voltage of 3V.
Maximum input voltage of 10V.
Supply current up to 140 µA.
Low quiescent current of 100 µA, enhancing battery life.
Power supply rejection ratio (PSRR) of 60dB at 1kHz, ensuring stable operation under varying input conditions.
Integrated features for enable control.
Overcurrent and over-temperature protection, providing reliable operation.
Reverse polarity protection to shield against incorrect power supply connection.
Capable of operating in temperatures ranging from -40°C to 125°C, suitable for extreme environments.
Product Advantages
High-efficiency design suitable for battery-powered devices.
Low power consumption for prolonged battery life.
Enhanced safety and reliability through built-in protection features.
Key Technical Parameters
Voltage Input (Max): 10V.
Voltage Output (Min/Fixed): 3V.
Current Output: 150mA.
PSRR: 60dB (1kHz).
Operating Temperature: -40°C ~ 125°C.
Quality and Safety Features
Overcurrent protection.
Overtemperature protection.
Reverse polarity protection.
Suitable for stringent operating environments (-40°C ~ 125°C).
Compatibility
Designed for universal compatibility with a wide range of circuits requiring a 3V regulated power supply.
Application Areas
Ideal for battery-powered equipment, portable devices, and applications requiring a highly efficient, low-power supply regulator.
Product Lifecycle
This product is in the Last Time Buy status; it is advisable to consider future needs and explore available replacements or upgrades.
Several Key Reasons to Choose This Product
Texas Instruments' reputation for quality and reliability.
Very low quiescent current, making it ideal for battery-sensitive applications.
Built-in safety features ensure product longevity and reliability.
High PSRR value for stable output despite input voltage fluctuations.
Wide operating temperature range satisfying demanding environmental requirements.
Last Time Buy status indicating consideration for replacement plans, ensuring forward compatibility and long-term support.
