Specifications

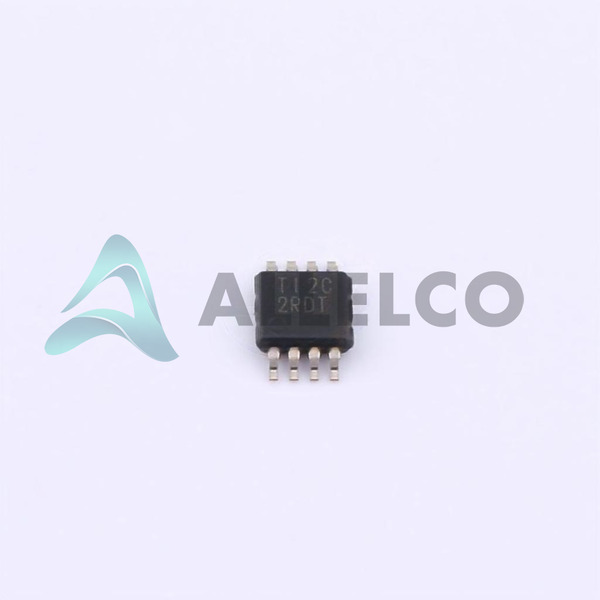

TPS7A1601ADGNR Tech Specifications
Texas Instruments - TPS7A1601ADGNR technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - TPS7A1601ADGNR
| Product Attribute |
Attribute Value
| |
| Manufacturer |
Texas Instruments |
|
| Voltage Dropout (Max) |
0.5V @ 100mA |
|
| Voltage - Output (Min/Fixed) |
1.2V |
|
| Voltage - Output (Max) |
18.5V |
|
| Voltage - Input (Max) |
60V |
|
| Supplier Device Package |
8-HVSSOP |
|
| Series |
- |
|
| Protection Features |
Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
|
| Package / Case |
8-PowerTSSOP, 8-MSOP (0.118", 3.00mm Width) |
|
| Package |
Tape & Reel (TR) |
|
| Product Attribute |
Attribute Value
| |
| PSRR |
50dB (100Hz) |
|
| Output Type |
Adjustable |
|
| Output Configuration |
Positive |
|
| Operating Temperature |
-40°C ~ 150°C (TJ) |
|
| Number of Regulators |
1 |
|
| Mounting Type |
Surface Mount |
|
| Current - Quiescent (Iq) |
15 µA |
|
| Current - Output |
100mA |
|
| Control Features |
Current Limit, Delay, Enable, Power Good, Soft Start |
|
