HomeProductsIntegrated Circuits (ICs)PMIC - Voltage Regulators - LinearTPS7A4901DGNR

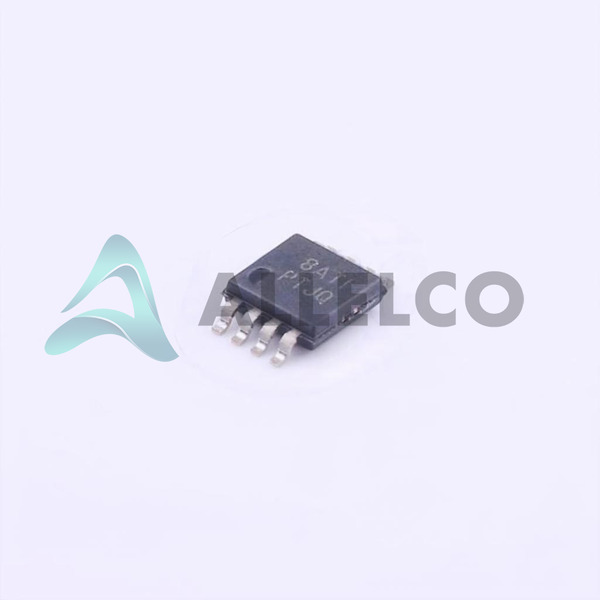

TPS7A4901DGNR Image
TPS7A4901DGNR Image - 1TPS7A4901DGNR Image - 2TPS7A4901DGNR Image - 3TPS7A4901DGNR Image - 4TPS7A4901DGNR Image - 5TPS7A4901DGNR Image - 6TPS7A4901DGNR Image - 7
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

TPS7A4901DGNR - Texas Instruments

Manufacturer Part Number
TPS7A4901DGNR
Manufacturer
Texas Instruments
Allelco Part Number
32D-TPS7A4901DGNR
Warranty
1 Year Allelco Warranty - Find out more
Parts Description
IC REG LIN POS ADJ 150MA 8HVSSOP
Package
8-HVSSOP
Data sheet
1.TPS7A4901DGNR.pdf ...

HTML Datasheet

TPS7A49 Datasheet.pdf
RoHs Status
ROHS3 Compliant
Compare
Our certification
In stock: 19550
  • Unit Price: $0.369
  • Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity Unit Price Ext. Price
1+ $0.369 $0.37
10+ $0.313 $3.13
30+ $0.273 $8.19
100+ $0.239 $23.90
500+ $0.228 $114.00
1000+ $0.222 $222.00
The above prices does not include taxes and freight rates, which will be calculated on the order pages.
EXPRESS OPTION
Payment method
Our certification

Specifications

TPS7A4901DGNR Tech Specifications
Texas Instruments - TPS7A4901DGNR technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - TPS7A4901DGNR

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage Dropout (Max) 0.6V @ 150mA
Voltage - Output (Min/Fixed) 1.194V
Voltage - Output (Max) 33V
Voltage - Input (Max) 35V
Supplier Device Package 8-HVSSOP
Series -
Protection Features Over Current, Over Temperature, Under Voltage Lockout (UVLO)
Package / Case 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad
Package Tape & Reel (TR)
PSRR 72dB (120Hz)
Product Attribute Attribute Value
Output Type Adjustable
Output Configuration Positive
Operating Temperature -40°C ~ 125°C
Number of Regulators 1
Mounting Type Surface Mount
Current - Supply (Max) 800 µA
Current - Quiescent (Iq) 100 µA
Current - Output 150mA
Control Features Enable
Base Product Number TPS7A4901

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001

Parts Introduction

Manufacturer Part Number

TPS7A4901DGNR

Manufacturer

Texas Instruments

Introduction

The TPS7A4901DGNR is a highly reliable, low dropout voltage regulator ideal for various applications, aiming to provide stable and efficient power management.

Product Features and Performance

Adjustable output voltage from 1.194V to 33V

Supports input voltages up to 35V

Low dropout voltage of 0.6V at 150mA load

Output current capability of 150mA

Quiescent current of 100 µA, maximizing energy efficiency

Excellent PSRR of 72dB at 120Hz, ensuring stable output under varying input conditions

Enable feature for power-saving modes

Over current, over temperature, and under voltage lockout (UVLO) protections for enhanced safety

Product Advantages

Wide adjustable output voltage range suitable for versatile applications

High input voltage tolerance

Low dropout enhances performance in low-voltage conditions

Low quiescent current beneficial for battery-powered devices

Robust protection features ensure product longevity and reliability

High PSRR providing stable output despite input noise or fluctuations

Key Technical Parameters

Voltage Input (Max): 35V

Voltage Output (Min/Fixed): 1.194V

Voltage Output (Max): 33V

Voltage Dropout (Max): 0.6V @ 150mA

Current Output: 150mA

Current Quiescent (Iq): 100 µA

PSRR: 72dB (120Hz)

Quality and Safety Features

Incorporates over current and over temperature protections

Under Voltage Lockout (UVLO) feature for safe operation

Designed for reliable operation in temperatures ranging from -40°C to 125°C

Compatibility

Compatible with various surface mount technologies due to its 8-TSSOP, 8-MSOP package

Application Areas

Ideal for sensitive electronics requiring stable voltage supply

Useful in battery-powered devices, automotive applications, and industrial equipment

Suitable for telecommunications and networking equipment

Product Lifecycle

Status: Active

This product is not reported to be nearing discontinuation, ensuring ongoing availability

Future replacement or upgrade options may become available

Several Key Reasons to Choose This Product

High flexibility in output voltage suitable for a wide range of applications

Energy-efficient operation due to low dropout and quiescent current

Robust safety features safeguarding against common electrical issues

High reliability and performance backed by Texas Instruments' reputation

Suited for high-input voltage applications with a 35V maximum input

Ease of integration into existing systems with its surface-mount package

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments TPS7A4901DGNR

Product Attribute TPS7A4901DGNT TPS7A4901DRBR TPS7A4901DRBT TPS7A4701QRGWRQ1
Part Number TPS7A4901DGNT TPS7A4901DRBR TPS7A4901DRBT TPS7A4701QRGWRQ1
Manufacturer Texas Instruments Texas Instruments Texas Instruments Texas Instruments
Package / Case - 196-LFBGA 16-DIP (0.300', 7.62mm) 64-VFQFN Exposed Pad
Current - Quiescent (Iq) - - - -
Voltage - Output (Max) - - - -
Voltage Dropout (Max) - - - -
Voltage - Input (Max) - - - -
Mounting Type - Surface Mount Through Hole Surface Mount
Output Type - Current - Unbuffered Voltage - Buffered -
Base Product Number - DAC34H84 MAX500 ADS62P42
Series - - - -
Protection Features - - - -
Current - Output - - - -
Output Configuration - - - -
PSRR - - - -
Current - Supply (Max) - - - -
Operating Temperature - -40°C ~ 85°C 0°C ~ 70°C -40°C ~ 85°C
Package - Tape & Reel (TR) Tube Tape & Reel (TR)
Supplier Device Package - 196-NFBGA (12x12) 16-PDIP 64-VQFN (9x9)
Voltage - Output (Min/Fixed) - - - -
Control Features - - - -
Number of Regulators - - - -

TPS7A4901DGNR Datasheet PDF

Download TPS7A4901DGNR pdf datasheets and Texas Instruments documentation for TPS7A4901DGNR - Texas Instruments.

HTML Datasheet
TPS7A49 Datasheet.pdf
