Specifications

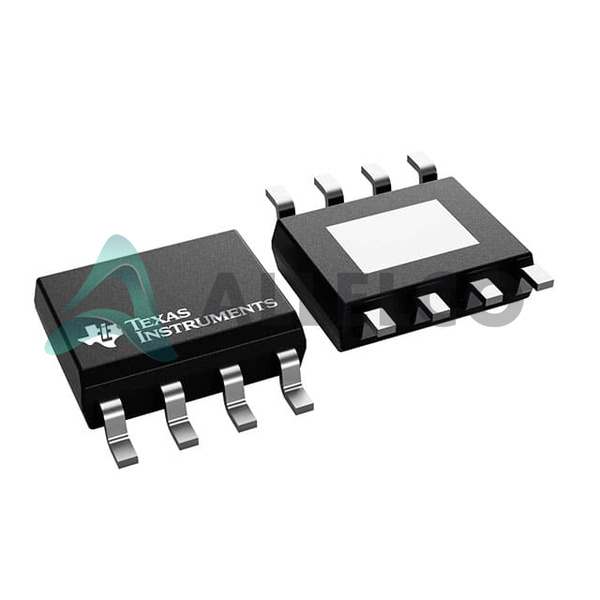

TPS7B8650DQDDARQ1 Tech Specifications
Texas Instruments - TPS7B8650DQDDARQ1 technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - TPS7B8650DQDDARQ1
| Product Attribute |
Attribute Value
| |
| Manufacturer |
Texas Instruments |
|
| Voltage Dropout (Max) |
0.535V @ 500mA |
|
| Voltage - Output (Min/Fixed) |
5V |
|
| Voltage - Output (Max) |
- |
|
| Voltage - Input (Max) |
40V |
|
| Supplier Device Package |
8-SO PowerPad |
|
| Series |
Automotive, AEC-Q100 |
|
| Protection Features |
Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
|
| Package / Case |
8-PowerSOIC (0.154", 3.90mm Width) |
|
| Package |
Tape & Reel (TR) |
|
| Product Attribute |
Attribute Value
| |
| PSRR |
70dB (1kHz) |
|
| Output Type |
Fixed |
|
| Output Configuration |
Positive |
|
| Operating Temperature |
-40°C ~ 150°C (TJ) |
|
| Number of Regulators |
1 |
|
| Mounting Type |
Surface Mount |
|
| Current - Quiescent (Iq) |
26 µA |
|
| Current - Output |
500mA |
|
| Control Features |
Current Limit, Enable, Power Good |
|
