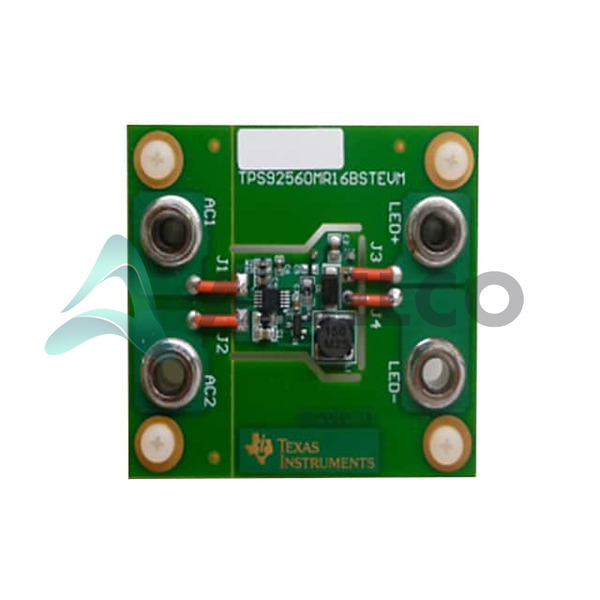

TPS92560MR16BSTEVM - Texas Instruments

Manufacturer Part Number: TPS92560MR16BSTEVM

Manufacturer: Texas Instruments

Allelco Part Number: 98D-TPS92560MR16BSTEVM

Warranty: 1 Year Allelco Warranty - Find out more

Parts Description: MODULE EVAL FOR TPS92560MR16

Package: Box

Data sheet: 1.TPS92560MR16BST.pdf ...

HTML Datasheet
TPS92560 Datasheet.pdf

~~Compare~~

Our certification

In stock: 43563

Unit Price: $58.80
Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity	Unit Price	Ext. Price
1+	$58.80	$58.80

The above prices does not include taxes and freight rates, which will be calculated on the order pages.

EXPRESS OPTION

Payment method

Our certification

Specifications

TPS92560MR16BSTEVM Tech Specifications
Texas Instruments - TPS92560MR16BSTEVM technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - TPS92560MR16BSTEVM

Product Attribute	Attribute Value
Manufacturer	Texas Instruments
Voltage - Output	20V
Voltage - Input	6 ~ 18 VAC, 3 V ~ 18 V
Utilized IC / Part	TPS92560
Supplied Contents	Board(s)
Series	-

Product Attribute	Attribute Value
Package	Box
Outputs and Type	1, Non-Isolated
Features	-
Current - Output / Channel	-
Base Product Number	TPS92560

Environmental & Export Classifications

ATTRIBUTE	DESCRIPTION
RoHs Status	Not applicable
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8473.30.1180

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments TPS92560MR16BSTEVM

Product Attribute
Part Number	TPS92560MR16BSTEVM	TPS92602EVM	TPS92561EVM-001	TPS92551EVM/NOPB
Manufacturer	Texas Instruments	Texas Instruments	Texas Instruments	Texas Instruments
Supplied Contents	Board(s)	Board(s)	Board(s)	Board(s)
Utilized IC / Part	TPS92560	TPS92602-Q1	TPS92561	TPS92551
Base Product Number	TPS92560	TPS92602	TPS925	TPS925
Package	Box	Bulk	Box	Box
Voltage - Output	20V	27.4V	250V	-
Current - Output / Channel	-	250mA	45mA	350mA
Series	-	-	-	-
Outputs and Type	1, Non-Isolated	2, Non-Isolated	1, Non-Isolated	1, Non-Isolated
Features	-	Dimmable	Dimmable	Dimmable
Voltage - Input	6 ~ 18 VAC, 3 V ~ 18 V	5.86V ~ 40V	90 ~ 135 VAC	4.5V ~ 60V

TPS92560MR16BSTEVM Datasheet PDF

Download TPS92560MR16BSTEVM pdf datasheets and Texas Instruments documentation for TPS92560MR16BSTEVM - Texas Instruments.

HTML Datasheet: TPS92560 Datasheet.pdf
