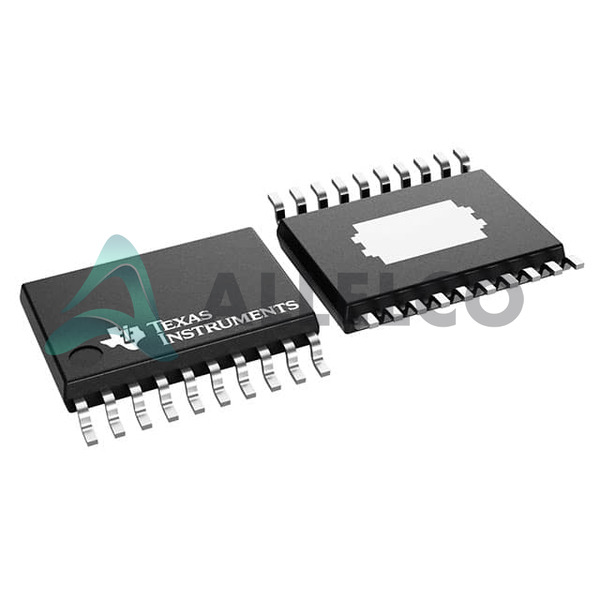

Image may be representation.
See specifications for product details.

~~Favorite~~

EXPRESS OPTION

Payment method

TPS92633MPWPR - Texas Instruments

Name: Texas Instruments TPS92633MPWPR
Brand: Texas Instruments
SKU: TPS92633MPWPR
Availability: InStock
Rating: 5 (8 reviews)

Manufacturer Part Number: TPS92633MPWPR

Manufacturer: Texas Instruments

Allelco Part Number: 32D-TPS92633MPWPR

Warranty: 1 Year Allelco Warranty - Find out more

Parts Description: IC LED DRVR LINEAR PWM 20HTSSOP

Package: 20-HTSSOP

Data sheet: 1.TPS92633MPWPR.pdf ...

PCN Design/Specification
Design 22/Feb/2022.pdf

~~Compare~~

Our certification

In stock: 31921

EXPRESS OPTION

Payment method

Our certification

Specifications

TPS92633MPWPR Tech Specifications
Texas Instruments - TPS92633MPWPR technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - TPS92633MPWPR

Product Attribute	Attribute Value
Manufacturer	Texas Instruments
Voltage - Supply (Min)	4.5V
Voltage - Supply (Max)	40V
Voltage - Output	0V ~ 40V
Type	Linear
Topology	Constant Current
Supplier Device Package	20-HTSSOP
Series	Automotive, AEC-Q100
Package / Case	20-PowerTSSOP (0.173", 4.40mm Width)
Package	Tape & Reel (TR)

Product Attribute	Attribute Value
Operating Temperature	-55°C ~ 125°C (TA)
Number of Outputs	3
Mounting Type	Surface Mount
Internal Switch(s)	No
Frequency	-
Dimming	PWM
Current - Output / Channel	-
Base Product Number	TPS92633
Applications	General Purpose

Environmental & Export Classifications

ATTRIBUTE	DESCRIPTION
RoHs Status	Not applicable
Moisture Sensitivity Level (MSL)	3 (168 Hours)
ECCN	EAR99
HTSUS	8542.39.0001

Parts Introduction

Manufacturer Part Number

TPS92633MPWPR

Manufacturer

Texas Instruments

Introduction

The TPS92633MPWPR is a high-performance, highly integrated 3-channel linear LED driver from Texas Instruments. It is designed for automotive and industrial applications that require precise current regulation and control of LED lighting.

Product Features and Performance

Supports input voltages from 4.5V to 40V

Provides up to 3 independent constant-current outputs

Supports PWM dimming for each channel

Operates over a wide temperature range of -55°C to 125°C

Integrated thermal shutdown and overcurrent protection

Small 20-pin HTSSOP package for compact designs

Product Advantages

Highly integrated solution simplifies design and reduces component count

Precise current regulation ensures consistent LED brightness

Wide input voltage range and temperature tolerance for diverse applications

Configurable PWM dimming enables flexible LED control

Key Reasons to Choose This Product

Reliable, high-performance LED driver solution from a trusted industry leader

Robust features and protection mechanisms ensure safe and reliable operation

Compact package allows for space-constrained designs

Suitable for a wide range of automotive, industrial, and general lighting applications

Quality and Safety Features

Automotive-grade AEC-Q100 qualification

Integrated thermal shutdown and overcurrent protection

Designed and manufactured to high quality standards

Compatibility

The TPS92633MPWPR is compatible with a wide range of LED configurations and can be used in various lighting applications, including:

Automotive interior and exterior lighting

Industrial machinery and equipment lighting

General purpose LED lighting for commercial and residential use

Application Areas

Automotive lighting (headlights, taillights, interior lighting)

Industrial automation and control equipment

General LED lighting for commercial and residential applications

Product Lifecycle

The TPS92633MPWPR is an active product and is currently in production. Our website's sales team offers several alternative models with similar features and performance characteristics, such as the TPS92634, TPS92635, and TPS92636 series. Customers are advised to consult with our website's sales team for the latest product information and availability.

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments TPS92633MPWPR

Product Attribute
Part Number	TPS92633QPWPRQ1	TPS92638QPWPRQ1	TPS92630QPWPRQ1	TPS92623QPWPRQ1
Manufacturer	Texas Instruments	Texas Instruments	Texas Instruments	Texas Instruments
Mounting Type	-	Surface Mount	Through Hole	Surface Mount
Operating Temperature	-	-40°C ~ 85°C	0°C ~ 70°C	-40°C ~ 85°C
Frequency	-	-	-	-
Number of Outputs	-	-	-	-
Applications	-	-	-	-
Base Product Number	-	DAC34H84	MAX500	ADS62P42
Package	-	Tape & Reel (TR)	Tube	Tape & Reel (TR)
Internal Switch(s)	-	-	-	-
Dimming	-	-	-	-
Type	-	-	-	-
Voltage - Output	-	-	-	-
Topology	-	-	-	-
Package / Case	-	196-LFBGA	16-DIP (0.300', 7.62mm)	64-VFQFN Exposed Pad
Voltage - Supply (Max)	-	-	-	-
Current - Output / Channel	-	-	-	-
Voltage - Supply (Min)	-	-	-	-
Supplier Device Package	-	196-NFBGA (12x12)	16-PDIP	64-VQFN (9x9)
Series	-	-	-	-

TPS92633MPWPR Datasheet PDF

Download TPS92633MPWPR pdf datasheets and Texas Instruments documentation for TPS92633MPWPR - Texas Instruments.

PCN Design/Specification: Design 22/Feb/2022.pdf
