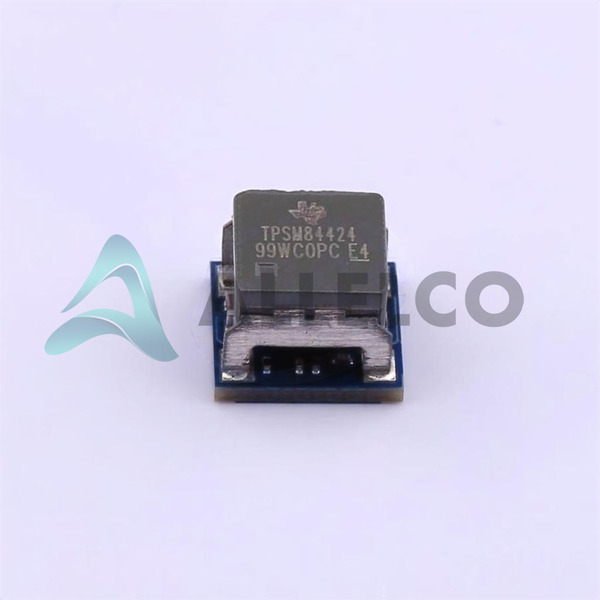

TPSM84424MOLR Image
TPSM84424MOLR Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

TPSM84424MOLR - Texas Instruments

Manufacturer Part Number
TPSM84424MOLR
Manufacturer
Texas Instruments
Allelco Part Number
32D-TPSM84424MOLR
Warranty
1 Year Allelco Warranty - Find out more
Parts Description
DC DC CONVERTER 0.6-10V
Package
24-QFM (7.5x7.5)
Data sheet
1.TPSM84424MOLR.pdf ...

PCN Assembly/Origin

Assembly 28/Jun/2022.pdf

HTML Datasheet

TPSM84424 Datasheet.pdf
RoHs Status
ROHS3 Compliant
Compare
Our certification
In stock: 4175
  • Unit Price: $4.813
  • Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity Unit Price Ext. Price
1+ $4.813 $4.81
10+ $4.222 $42.22
30+ $3.862 $115.86
100+ $3.56 $356.00
The above prices does not include taxes and freight rates, which will be calculated on the order pages.
EXPRESS OPTION
Payment method
Our certification

Specifications

TPSM84424MOLR Tech Specifications
Texas Instruments - TPSM84424MOLR technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - TPSM84424MOLR

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage - Output 4 -
Voltage - Output 3 -
Voltage - Output 2 -
Voltage - Output 1 0.6 ~ 10V
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 17V
Type Non-Isolated PoL Module
Supplier Device Package 24-QFM (7.5x7.5)
Size / Dimension 0.30" L x 0.30" W x 0.21" H (7.5mm x 7.5mm x 5.4mm)
Series TPSM
Product Attribute Attribute Value
Package / Case 24-SMD Module
Package Tape & Reel (TR)
Operating Temperature -40°C ~ 105°C
Number of Outputs 1
Mounting Type Surface Mount
Features OCP, OTP, UVLO
Efficiency 94%
Current - Output (Max) 4A
Base Product Number TPSM84424
Applications ITE (Commercial)

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580

Parts Introduction

Manufacturer Part Number

TPSM84424MOLR

Manufacturer

Texas Instruments

Introduction

Non-isolated Point-of-Load (PoL) DC-DC Converter Module

Product Features and Performance

High efficiency up to 94%

Wide input voltage range of 4.5V to 17V

Adjustable output voltage from 0.6V to 10V

Maximum output current of 4A

Integrated protection features: Overcurrent Protection (OCP), Overtemperature Protection (OTP), and Undervoltage Lockout (UVLO)

Compact 24-pin QFN package (7.5mm x 7.5mm x 5.4mm)

Product Advantages

Efficient power conversion

Wide input and output voltage flexibility

Robust protection features

Space-saving small footprint

Key Technical Parameters

Input Voltage Range: 4.5V to 17V

Output Voltage Range: 0.6V to 10V

Maximum Output Current: 4A

Efficiency: Up to 94%

Operating Temperature Range: -40°C to 105°C

Quality and Safety Features

RoHS3 compliant

Overcurrent Protection (OCP)

Overtemperature Protection (OTP)

Undervoltage Lockout (UVLO)

Compatibility

Suitable for a variety of Industrial, Telecom, and Information Technology Equipment (ITE) applications

Application Areas

Distributed power architectures

Point-of-load applications

Industrial equipment

Telecom and networking equipment

Information Technology (IT) equipment

Product Lifecycle

Currently available, no end-of-life or discontinuation plans

Several Key Reasons to Choose This Product

High efficiency power conversion for improved energy savings

Wide input and output voltage flexibility for design versatility

Robust protection features for reliable operation

Compact size for space-constrained applications

Suitable for a wide range of industrial, telecom, and IT applications

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments TPSM84424MOLR

Product Attribute TPSM846C24MOLR TPSM846C23MOLR TPSM84209RKHT TPSM84209RKHR
Part Number TPSM846C24MOLR TPSM846C23MOLR TPSM84209RKHT TPSM84209RKHR
Manufacturer Texas Instruments Texas Instruments Texas Instruments Texas Instruments
Series - - - -
Voltage - Input (Max) - - - -
Type - - - -
Features - - - Simultaneous Sampling
Operating Temperature - -40°C ~ 85°C 0°C ~ 70°C -40°C ~ 85°C
Base Product Number - DAC34H84 MAX500 ADS62P42
Voltage - Output 1 - - - -
Mounting Type - Surface Mount Through Hole Surface Mount
Voltage - Output 4 - - - -
Package / Case - 196-LFBGA 16-DIP (0.300', 7.62mm) 64-VFQFN Exposed Pad
Applications - - - -
Supplier Device Package - 196-NFBGA (12x12) 16-PDIP 64-VQFN (9x9)
Package - Tape & Reel (TR) Tube Tape & Reel (TR)
Number of Outputs - - - -
Efficiency - - - -
Size / Dimension - - - -
Voltage - Input (Min) - - - -
Current - Output (Max) - - - -
Voltage - Output 3 - - - -
Voltage - Output 2 - - - -

TPSM84424MOLR Datasheet PDF
