Manufacturer Part Number

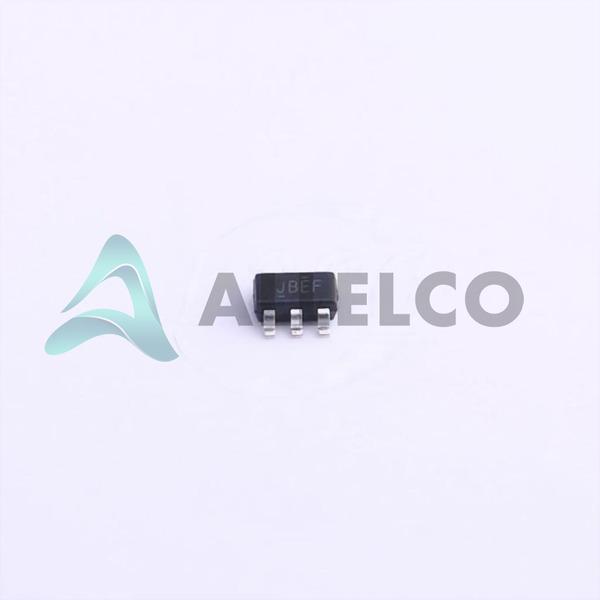

TS5A63157DBVR
Manufacturer
Texas Instruments
Introduction
The TS5A63157DBVR from Texas Instruments is a single-pole double-throw (SPDT) analog switch, designed for 2:1 multiplexer/demultiplexer applications, delivered in Tape & Reel (TR) packaging suitable for automated assembly.
Product Features and Performance
Single 2:1 multiplexer/demultiplexer configuration
Maximum on-state resistance of 10 Ohm
Channel-to-channel matching of 100 mOhm
Voltage supply range from 1.65V to 5.5V
Fast switching time with a maximum of 5ns for turn-on and 3.4ns for turn-off
High bandwidth of 371MHz
Low charge injection of -21pC
Channel capacitance off-state of 5pF
Maximum off-state leakage current of 30nA
High crosstalk isolation of -61dB at 10MHz
Product Advantages
High performance in a compact SOT-23-6 package
Optimized for low voltage operation, supporting versatile power requirements
High-speed switching capability enhances system performance
Low crosstalk and charge injection for minimal signal distortion
Key Technical Parameters
On-State Resistance: 10 Ohm
Voltage Supply, Single (V+): 1.65V ~ 5.5V
Switch Time (Ton, Toff): 5ns, 3.4ns
-3dB Bandwidth: 371MHz
Charge Injection: -21pC
Crosstalk: -61dB @ 10MHz
Quality and Safety Features
Operates effectively within a temperature range of -40°C to 85°C
Surface mount technology enhances board level reliability and safety
Compatibility
Compatible with various signal types within its voltage supply range
SOT-23-6 package suits standard automated assembly processes
Application Areas
Mobile devices
Communication systems
Data acquisition systems
Audio and video signal routing
Product Lifecycle
Currently active and available
Expected to remain in production with no immediate discontinuation foreseeable
Several Key Reasons to Choose This Product
Extended signal integrity with minimal leakage and high isolation
Supports a wide range of supply voltages, enhancing compatibility
Ultra-fast switching speeds ideal for high-frequency applications
Small package size allows for integration in size-constrained applications
Industry-leading performance metrics in bandwidth and on-state resistance.
