HomeProductsIntegrated Circuits (ICs)PMIC - Voltage Regulators - LinearUA78L05AIDR

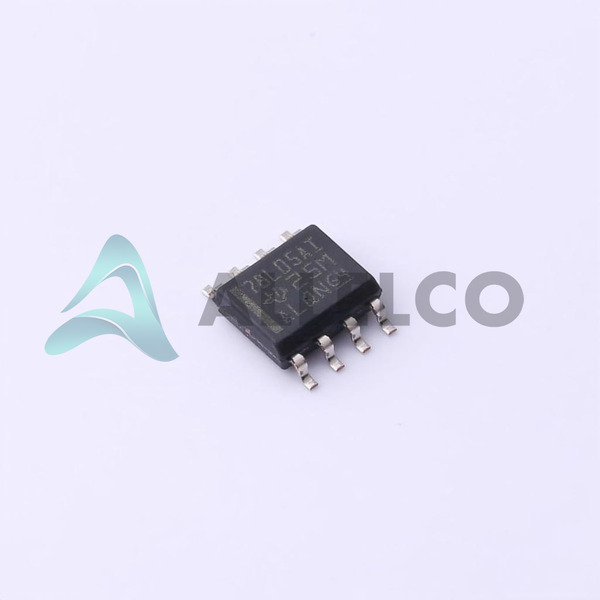

UA78L05AIDR Image
UA78L05AIDR Image - 1UA78L05AIDR Image - 2
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

UA78L05AIDR - Texas Instruments

Manufacturer Part Number
UA78L05AIDR
Manufacturer
Texas Instruments
Allelco Part Number
32D-UA78L05AIDR
Warranty
1 Year Allelco Warranty - Find out more
Parts Description
IC REG LINEAR 5V 100MA 8SOIC
Package
8-SOIC
Data sheet
1.UA78L05AIDR.pdf ...

HTML Datasheet

UA78L02-15A.pdf
RoHs Status
ROHS3 Compliant
Compare
Our certification
In stock: 248340
  • Unit Price: $0.245
  • Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity Unit Price Ext. Price
1+ $0.245 $0.25
10+ $0.20 $2.00
30+ $0.181 $5.43
100+ $0.157 $15.70
500+ $0.126 $63.00
1000+ $0.12 $120.00
The above prices does not include taxes and freight rates, which will be calculated on the order pages.
EXPRESS OPTION
Payment method
Our certification

Specifications

UA78L05AIDR Tech Specifications
Texas Instruments - UA78L05AIDR technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - UA78L05AIDR

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage Dropout (Max) 1.7V @ 40mA
Voltage - Output (Min/Fixed) 5V
Voltage - Output (Max) -
Voltage - Input (Max) 20V
Supplier Device Package 8-SOIC
Series -
Protection Features Over Current, Over Temperature, Reverse Polarity, Short Circuit
Package / Case 8-SOIC (0.154', 3.90mm Width)
Package Tape & Reel (TR)
Product Attribute Attribute Value
PSRR 49dB (120Hz)
Output Type Fixed
Output Configuration Positive
Operating Temperature -40°C ~ 125°C
Number of Regulators 1
Mounting Type Surface Mount
Current - Output 100mA
Control Features -
Base Product Number UA78L05

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001

Parts Introduction

Manufacturer Part Number

UA78L05AIDR

Manufacturer

Texas Instruments

Introduction

The UA78L05AIDR is a low-dropout linear voltage regulator designed for power management, specifically to provide a fixed 5V output from an input voltage up to 20V.

Product Features and Performance

Output Type: Fixed

Configuration: Positive

Maximum Input Voltage: 20V

Fixed Output Voltage: 5V

Maximum Dropout Voltage: 1.7V at 40mA

Maximum Output Current: 100mA

Power Supply Rejection Ratio (PSRR): 49dB at 120Hz

Operates over a temperature range of -40°C to 125°C

Product Advantages

Integrated protection features: Over Current, Over Temperature, Reverse Polarity, and Short Circuit protection

High PSRR for effective noise filtering in sensitive applications

Key Technical Parameters

Input Voltage (Max): 20V

Output Voltage (Min/Fixed): 5V

Voltage Dropout (Max): 1.7V @ 40mA

Current Output: 100mA

PSRR: 49dB (120Hz)

Quality and Safety Features

Over Current Protection

Over Temperature Protection

Reverse Polarity Protection

Short Circuit Protection

Compatibility

Mounting Type: Surface Mount

Package / Case: 8-SOIC

Suitable for a wide range of applications due to its common 8-SOIC packaging

Application Areas

Consumer Electronics

Portable Devices

Power Supply Modules

Microcontroller Power Supply

Product Lifecycle

Product Status: Active

Not nearing discontinuation and replacements or upgrades are readily available

Several Key Reasons to Choose This Product

Robust output current capacity of 100mA suitable for various electronic devices

High reliability with integrated protection against overcurrent, temperature extremes, and circuit malfunctions

Efficient dropout performance ensuring stable operation even with low input-to-output differentials

Wide operating temperature range making it ideal for harsh environments

Surface-mount packaging for easy integration into a variety of circuit designs

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments UA78L05AIDR

Product Attribute UA78L05AIDRE4 UA78L05AIDRG4 UA78L05AIDG4 UA78L05AILPRE3
Part Number UA78L05AIDRE4 UA78L05AIDRG4 UA78L05AIDG4 UA78L05AILPRE3
Manufacturer Luminary Micro / Texas Instruments Luminary Micro / Texas Instruments Luminary Micro / Texas Instruments Texas Instruments
Protection Features - - - -
Operating Temperature - -40°C ~ 85°C 0°C ~ 70°C -40°C ~ 85°C
Voltage - Input (Max) - - - -
Voltage - Output (Max) - - - -
Package - Tape & Reel (TR) Tube Tape & Reel (TR)
Mounting Type - Surface Mount Through Hole Surface Mount
Voltage Dropout (Max) - - - -
Base Product Number - DAC34H84 MAX500 ADS62P42
Output Configuration - - - -
Voltage - Output (Min/Fixed) - - - -
Package / Case - 196-LFBGA 16-DIP (0.300', 7.62mm) 64-VFQFN Exposed Pad
Current - Output - - - -
Series - - - -
Supplier Device Package - 196-NFBGA (12x12) 16-PDIP 64-VQFN (9x9)
Output Type - Current - Unbuffered Voltage - Buffered -
Number of Regulators - - - -
Control Features - - - -
PSRR - - - -

UA78L05AIDR Datasheet PDF

Download UA78L05AIDR pdf datasheets and Texas Instruments documentation for UA78L05AIDR - Texas Instruments.

PCN Design/Specification
Design 25/Feb/2022.pdf Mult Devices Font 21/Apr/2018.pdf
HTML Datasheet
UA78L02-15A.pdf

Customers Also Interested in
