Manufacturer Part Number

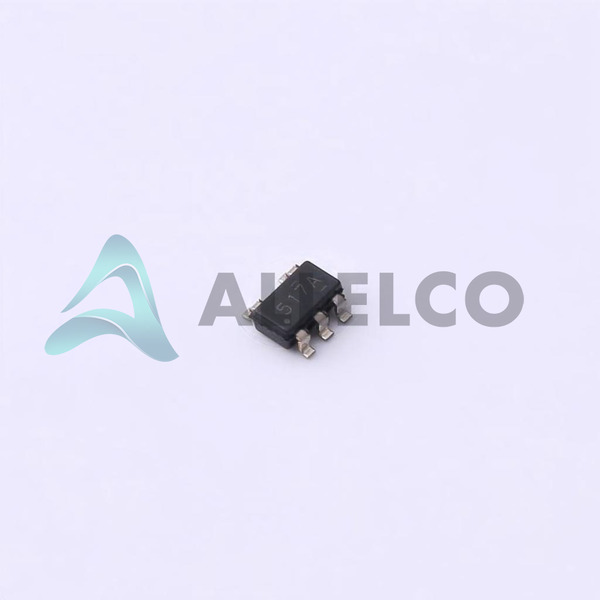

UCC27517ADBVT
Manufacturer
Texas Instruments
Introduction
The UCC27517ADBVT is designed to effectively handle power management, specifically in gate driving applications, providing efficiency and reliability.
Product Features and Performance
Single Channel Low-Side driver configuration
Suitable for driving IGBT and N-Channel MOSFET gates
Wide supply voltage range from 4.5V to 18V
Input Types: Inverting and Non-Inverting for flexible circuit integration
Quick rise and fall time (Typically 8ns and 7ns, respectively) for fast switching
High peak output current of 4A (both source and sink) enabling high power handling
Robust operating temperature range: -40°C to 140°C
Surface mount SC-74A, SOT-753 package, suitable for compact designs
Product Advantages
Flexible input logic matches a variety of signal sources
High peak current support allows for control of powerful gates
Fast switching times enhance the efficiency of power circuits
Broad supply voltage accommodates varying power supply needs
Operating in extreme temperatures suitable for challenging environments
Key Technical Parameters
Voltage Supply: 4.5V ~ 18V
Logic Voltage VIL, VIH: 1V, 2.4V
Current Peak Output (Source, Sink): 4A, 4A
Rise / Fall Time (Typ): 8ns, 7ns
Operating Temperature: -40°C to 140°C
Quality and Safety Features
Implemented within Texas Instruments' stringent quality management system
Meets applicable regulatory and safety standards for power management components
Compatibility
Compatible with a wide range of IGBT and N-Channel MOSFET models
Flexible for integration into various power management circuits
Application Areas
Switch Mode Power Supplies (SMPS)
Motor Controls
Power inverters and converters
High-speed switching applications
Product Lifecycle
Current Product Status: Active
No current indication of discontinuation, ensuring supply continuity for new designs
Several Key Reasons to Choose This Product
High reliability and performance from a trusted manufacturer, Texas Instruments
Versatile for a variety of power management applications with its wide voltage range and high current capability
Fast switching capabilities improve overall efficiency of power circuits
Robust design suitable for challenging environmental conditions
Provides flexibility in design due to its compatibility with both inverting and non-inverting inputs
