Manufacturer Part Number

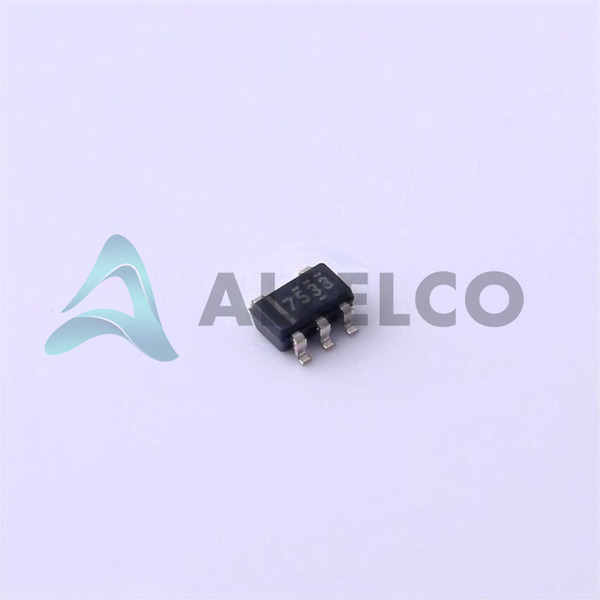

UCC27533DBVT
Manufacturer
Texas Instruments
Introduction
The UCC27533DBVT is a powerful gate driver designed for high-speed operation and efficient control of power electronics.
Product Features and Performance
Low-Side Gate Driver
High Peak Output Current Source of 2.5A, Sink of 5A
Wide Supply Voltage Range from 10V to 32V
Compatible with IGBT and N-Channel MOSFET gates
Fast Rise and Fall Times of 15ns and 7ns respectively
Single Channel Driver with Dual Input options for flexibility
Product Advantages
Efficient switching performance reduces power losses
Dual input allows for versatile control strategies
High-temperature operation up to 140°C
Robust against false triggering
Minimal propagation delay enhances control accuracy
Key Technical Parameters
Input Logic Voltage (VIL, VIH): 1.2V (Min), 2.2V (Min)
Number of Drivers: 1
Driven Configuration: Low-Side
Rise / Fall Time (Typical): 15ns / 7ns
Operating Temperature Range: -40°C to 140°C
Quality and Safety Features
Extended Temperature Range for reliability in harsh conditions
Fast Switching Times for improved safety in high-speed operations
High Drive Strength to withstand transient events
Compatibility
Compatible with standard logic levels
Suitable for IGBT and N-Channel MOSFET control
Application Areas
Motor Control
Power Supplies
Automotive Electronics
Industrial Automation
Consumer Electronics
Product Lifecycle
Product Status: Active
Not indicated as nearing discontinuation
Options for future upgrades or replacements should be monitored via Texas Instruments’ product updates
Several Key Reasons to Choose This Product
High current driving capability for demanding applications
Dual input design provides design flexibility
Fast switching capabilities enable high-frequency operation
Thermal robustness suitable for a wide range of operating environments
Proven reliability from Texas Instruments, a leading manufacturer in semiconductor solutions
