HomeProductsIntegrated Circuits (ICs)Interface - ControllersUSBN9604SLB

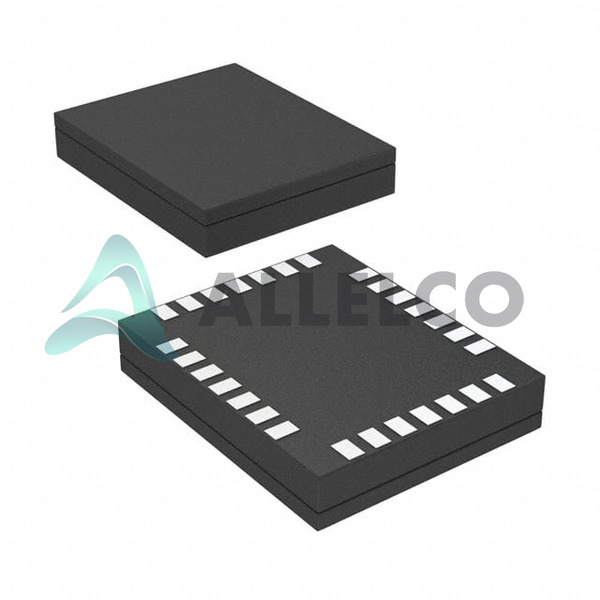

USBN9604SLB Image
USBN9604SLB Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

USBN9604SLB - Texas Instruments

Manufacturer Part Number
USBN9604SLB
Manufacturer
Texas Instruments
Allelco Part Number
32D-USBN9604SLB
Warranty
1 Year Allelco Warranty - Find out more
Parts Description
IC CTRLR FULL SPEED 28-LAMCSP
Package
28-CSP (5.5x4.5)
Data sheet
1.USBN9604SLB.pdf ...
RoHs Status
ROHS3 Compliant
Compare
Our certification
In stock: 3850

Required fields are indicated by an asterisk (*)
Please send RFQ, we will respond immediately.

Quantity
EXPRESS OPTION
Payment method
Our certification

Specifications

USBN9604SLB Tech Specifications
Texas Instruments - USBN9604SLB technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - USBN9604SLB

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage - Supply 3V ~ 5.5V
Supplier Device Package 28-CSP (5.5x4.5)
Standards USB 1.0 and 1.1
Series -
Protocol USB
Package / Case 28-TFQFN, CSP
Product Attribute Attribute Value
Package Tape & Reel (TR)
Operating Temperature 0°C ~ 70°C
Interface Parallel
Function Controller
Current - Supply 30mA
Base Product Number USBN96

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 5A991C1
HTSUS 8542.31.0001

Parts Introduction

Manufacturer Part Number

USBN9604SLB

Manufacturer

Texas Instruments

Introduction

The USBN9604SLB is a highly integrated, low-power USB controller designed for a wide range of embedded applications. It supports USB 1.0 and 1.1 standards and provides a parallel interface for easy integration with various microcontrollers or processors.

Product Features and Performance

Supports USB 1.0 and 1.1 standards

Parallel interface for easy integration

Low-power operation with a supply current of only 30mA

Wide operating voltage range of 3V to 5.5V

Operating temperature range of 0°C to 70°C

Available in a compact 28-TFQFN, CSP package

Product Advantages

Highly integrated design reduces board space and component count

Low power consumption extends battery life in portable applications

Parallel interface simplifies integration with host processors

Wide voltage and temperature range ensures flexibility in various applications

Key Reasons to Choose This Product

Reliable and well-established USB controller solution from a trusted manufacturer

Optimized for low-power, embedded applications

Seamless integration with a variety of host processors through the parallel interface

Cost-effective solution for adding USB functionality to your design

Quality and Safety Features

Robust design and manufacturing process ensure reliable performance

Compliance with USB standards and certifications

Compatibility

The USBN9604SLB is compatible with USB 1.0 and 1.1 standards, allowing it to be used in a wide range of USB-enabled systems and devices.

Application Areas

Embedded systems

Portable devices

Industrial automation

Medical equipment

Consumer electronics

Product Lifecycle

The USBN9604SLB is an obsolete product, meaning it is no longer in active production. However, there may be equivalent or alternative models available from Texas Instruments. It is recommended to contact our website's sales team for the latest information on product availability and potential alternatives.

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments USBN9604SLB

Product Attribute USBN9604SLBX-TI USBN9604SLB/NOPB USBN9604SLBX USBN9604SLBX/NOPB
Part Number USBN9604SLBX-TI USBN9604SLB/NOPB USBN9604SLBX USBN9604SLBX/NOPB
Manufacturer Texas Instruments Texas Instruments Texas Instruments Texas Instruments
Package / Case - 196-LFBGA 16-DIP (0.300', 7.62mm) 64-VFQFN Exposed Pad
Protocol - - - -
Current - Supply - - - -
Standards - - - -
Base Product Number - DAC34H84 MAX500 ADS62P42
Voltage - Supply - - - -
Package - Tape & Reel (TR) Tube Tape & Reel (TR)
Interface - - - -
Supplier Device Package - 196-NFBGA (12x12) 16-PDIP 64-VQFN (9x9)
Function - - - -
Operating Temperature - -40°C ~ 85°C 0°C ~ 70°C -40°C ~ 85°C
Series - - - -

USBN9604SLB Datasheet PDF

Download USBN9604SLB pdf datasheets and Texas Instruments documentation for USBN9604SLB - Texas Instruments.

Datasheets
USBN9603, USBN9604.pdf
