Home Products Discrete Semiconductor Products Diodes - Zener - Single~~1N747A~~

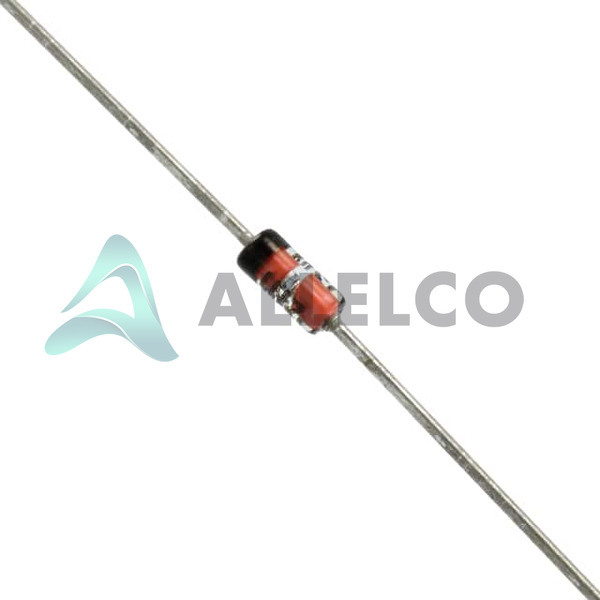

Image may be representation.
See specifications for product details.

~~Favorite~~

EXPRESS OPTION

Payment method

1N747A - Microchip Technology

Name: Microchip Technology 1N747A
Brand: Microchip Technology
SKU: 1N747A
Price: 2.16 USD
Availability: InStock
Rating: 5 (5 reviews)

Manufacturer Part Number: 1N747A

Manufacturer: Microchip Technology

Allelco Part Number: 98D-1N747A

Warranty: 1 Year Allelco Warranty - Find out more

Parts Description: DIODE ZENER 3.6V 500MW DO7

Package: DO-7 (DO-204AA)

Data sheet: 1.1N747A.pdf ...

PCN Assembly/Origin
Manufacturing Change 23/Feb/2021.pdf

Environmental Information
Microchip CA Prop65.pdf Microchip REACH.pdf Microchip RoHS.pdf

~~Compare~~

Our certification

In stock: 36137

Unit Price: $2.16
Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity	Unit Price	Ext. Price
1+	$2.16	$2.16

The above prices does not include taxes and freight rates, which will be calculated on the order pages.

EXPRESS OPTION

Payment method

Our certification

Specifications

1N747A Tech Specifications
Microchip Technology - 1N747A technical specifications, attributes, parameters and parts with similar specifications to Microchip Technology - 1N747A

Product Attribute	Attribute Value
Manufacturer	Microchip Technology
Voltage - Zener (Nom) (Vz)	3.6 V
Voltage - Forward (Vf) (Max) @ If	1.1 V @ 200 mA
Tolerance	±5%
Supplier Device Package	DO-7 (DO-204AA)
Series	-
Power - Max	500 mW

Product Attribute	Attribute Value
Package / Case	DO-204AA, DO-7, Axial
Package	Bulk
Operating Temperature	-65°C ~ 175°C
Mounting Type	Through Hole
Impedance (Max) (Zzt)	24 Ohms
Current - Reverse Leakage @ Vr	3 µA @ 1 V
Base Product Number	1N747

Environmental & Export Classifications

ATTRIBUTE	DESCRIPTION
RoHs Status	RoHS non-compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99

Parts with Similar Specifications

The three parts on the right have similar specifications to Microchip Technology 1N747A

Product Attribute
Part Number	1N747A	1N747A-1	1N747A TR TIN/LEAD	1N747A-1/TR
Manufacturer	NTE Electronics, Inc	Microchip Technology	Central Semiconductor Corp	Microchip Technology
Tolerance	-	-	-	-
Current - Reverse Leakage @ Vr	-	-	-	-
Package	-	Tape & Reel (TR)	Tube	Tape & Reel (TR)
Package / Case	-	196-LFBGA	16-DIP (0.300', 7.62mm)	64-VFQFN Exposed Pad
Supplier Device Package	-	196-NFBGA (12x12)	16-PDIP	64-VQFN (9x9)
Voltage - Zener (Nom) (Vz)	-	-	-	-
Base Product Number	-	DAC34H84	MAX500	ADS62P42
Operating Temperature	-	-40°C ~ 85°C	0°C ~ 70°C	-40°C ~ 85°C
Power - Max	-	-	-	-
Mounting Type	-	Surface Mount	Through Hole	Surface Mount
Voltage - Forward (Vf) (Max) @ If	-	-	-	-
Impedance (Max) (Zzt)	-	-	-	-
Series	-	-	-	-

1N747A Datasheet PDF

Download 1N747A pdf datasheets and Microchip Technology documentation for 1N747A - Microchip Technology.

PCN Assembly/Origin: Manufacturing Change 23/Feb/2021.pdf
Environmental Information: Microchip CA Prop65.pdf Microchip REACH.pdf Microchip RoHS.pdf
