HomeProductsIntegrated Circuits (ICs)Embedded - MicrocontrollersATXMEGA64A1U-CU

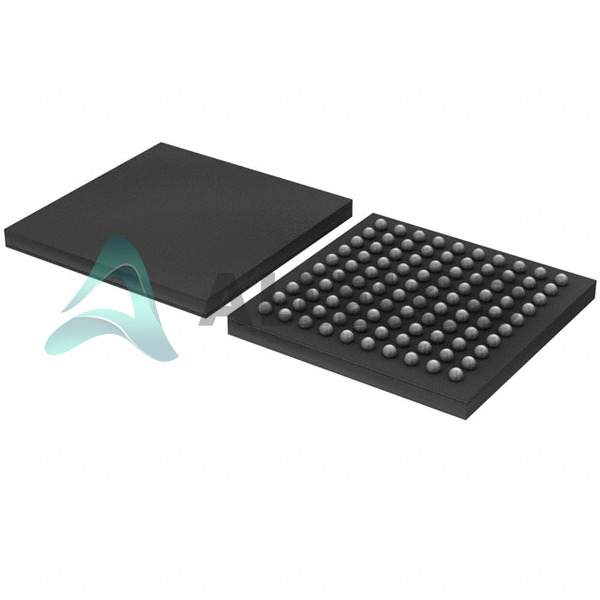

ATXMEGA64A1U-CU Image
ATXMEGA64A1U-CU Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

ATXMEGA64A1U-CU - Microchip Technology

Manufacturer Part Number
ATXMEGA64A1U-CU
Manufacturer
Microchip Technology
Allelco Part Number
32D-ATXMEGA64A1U-CU
Warranty
1 Year Allelco Warranty - Find out more
Parts Description
IC MCU 8/16BIT 64KB FLSH 100CBGA
Package
100-CBGA (9x9)
Data sheet
1.ATXMEGA64A1U-CU.pdf ...

PCN Assembly/Origin

2.73KHz.pdf
RoHs Status
ROHS3 Compliant
Compare
Our certification
In stock: 5106

Required fields are indicated by an asterisk (*)
Please send RFQ, we will respond immediately.

Quantity
EXPRESS OPTION
Payment method
Our certification

Specifications

ATXMEGA64A1U-CU Tech Specifications
Microchip Technology - ATXMEGA64A1U-CU technical specifications, attributes, parameters and parts with similar specifications to Microchip Technology - ATXMEGA64A1U-CU

Product Attribute Attribute Value
Manufacturer Microchip Technology
Voltage - Supply (Vcc/Vdd) 1.6V ~ 3.6V
Supplier Device Package 100-CBGA (9x9)
Speed 32MHz
Series AVR® XMEGA® A1U
RAM Size 4K x 8
Program Memory Type FLASH
Program Memory Size 64KB (32K x 16)
Peripherals Brown-out Detect/Reset, DMA, POR, PWM, WDT
Package / Case 100-TFBGA
Package Tray
Product Attribute Attribute Value
Oscillator Type Internal
Operating Temperature -40°C ~ 85°C (TA)
Number of I/O 78
Mounting Type Surface Mount
EEPROM Size 2K x 8
Data Converters A/D 16x12b; D/A 4x12b
Core Size 8/16-Bit
Core Processor AVR
Connectivity EBI/EMI, I²C, IrDA, SPI, UART/USART
Base Product Number ATXMEGA64

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 5A992C
HTSUS 8542.31.0001

Parts Introduction

Manufacturer Part Number

ATXMEGA64A1U-CU

Manufacturer

microchip-technology

Introduction

The ATXMEGA64A1U-CU is a powerful and versatile 8/16-bit microcontroller from the AVR® XMEGA® A1U series. It offers a wide range of features, including multiple communication interfaces, advanced peripherals, and a high-performance core, making it suitable for a variety of embedded applications.

Product Features and Performance

32MHz core speed

AVR 8/16-bit core architecture

64KB FLASH program memory

4KB RAM

2KB EEPROM

16-channel 12-bit ADC

4-channel 12-bit DAC

Variety of communication interfaces: EBI/EMI, I2C, IrDA, SPI, UART/USART

Advanced peripherals: Brown-out Detect/Reset, DMA, POR, PWM, WDT

78 I/O pins

Product Advantages

Versatile and powerful microcontroller

Wide range of communication and peripheral options

Flexible memory configuration

Low power consumption

Robust and reliable performance

Key Reasons to Choose This Product

Excellent performance and feature set for embedded applications

Ease of use and integration with existing systems

Cost-effective solution for a variety of projects

Backed by Microchip's extensive support and resources

Quality and Safety Features

Designed and manufactured to high-quality standards

Robust electrical and thermal specifications

Built-in safety features like brown-out detection and watchdog timer

Compatibility

The ATXMEGA64A1U-CU is compatible with other AVR® XMEGA® A1U series microcontrollers, allowing for easy migration and scalability in your designs.

Application Areas

Industrial automation and control

Home and building automation

Medical devices

Portable and battery-powered systems

Automotive and transportation

Consumer electronics

Product Lifecycle

The ATXMEGA64A1U-CU is an obsolete product, meaning it is no longer in active production. However, there are several equivalent or alternative models available from the AVR® XMEGA® A1U series that may be suitable replacements. Please contact our website's sales team for more information on available options and product support.

Parts with Similar Specifications

The three parts on the right have similar specifications to Microchip Technology ATXMEGA64A1U-CU

Product Attribute ATXMEGA64A1U-C7UR ATXMEGA64A1U-C7U ATXMEGA64A1U-C7U ATXMEGA64A1U-AU
Part Number ATXMEGA64A1U-C7UR ATXMEGA64A1U-C7U ATXMEGA64A1U-C7U ATXMEGA64A1U-AU
Manufacturer Microchip Technology Atmel Microchip Technology Microchip Technology
Package - Tape & Reel (TR) Tube Tape & Reel (TR)
Base Product Number - DAC34H84 MAX500 ADS62P42
Core Processor - - - -
Supplier Device Package - 196-NFBGA (12x12) 16-PDIP 64-VQFN (9x9)
Program Memory Type - - - -
Speed - - - -
Connectivity - - - -
EEPROM Size - - - -
Program Memory Size - - - -
Series - - - -
RAM Size - - - -
Core Size - - - -
Voltage - Supply (Vcc/Vdd) - - - -
Oscillator Type - - - -
Package / Case - 196-LFBGA 16-DIP (0.300', 7.62mm) 64-VFQFN Exposed Pad
Number of I/O - - - -
Peripherals - - - -
Mounting Type - Surface Mount Through Hole Surface Mount
Data Converters - - - -
Operating Temperature - -40°C ~ 85°C 0°C ~ 70°C -40°C ~ 85°C

ATXMEGA64A1U-CU Datasheet PDF

Download ATXMEGA64A1U-CU pdf datasheets and Microchip Technology documentation for ATXMEGA64A1U-CU - Microchip Technology.

Datasheets
Cylindrical Battery Holders.pdf
PCN Assembly/Origin
2.73KHz.pdf
PCN Design/Specification
ATxmega128A1U/62A1U 30/Aug/2018.pdf Marking Chgs 11/Jul/2017.pdf
PCN Packaging
Boxes 07/Dec/2016.pdf MBB/Label Chgs 16/Nov/2018.pdf
