Specifications

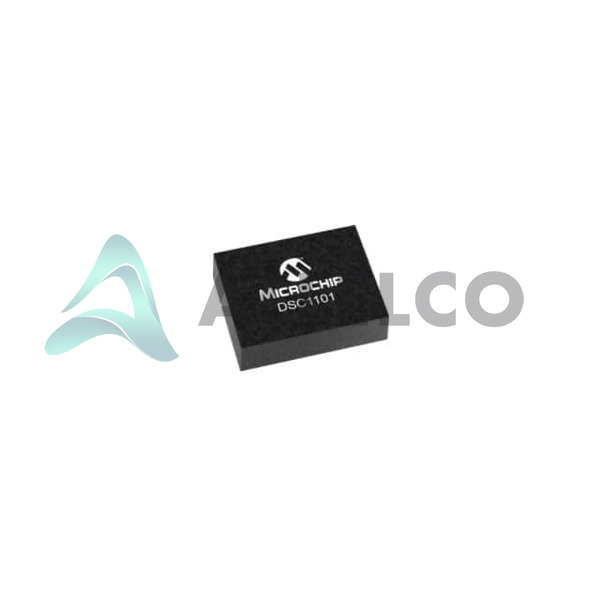

DSC1004CI2-024.5760 Tech Specifications
Microchip Technology - DSC1004CI2-024.5760 technical specifications, attributes, parameters and parts with similar specifications to Microchip Technology - DSC1004CI2-024.5760
| Product Attribute |
Attribute Value
| |
| Manufacturer |
Microchip Technology |
|
| Voltage - Supply |
1.8V ~ 3.3V |
|
| Type |
XO (Standard) |
|
| Spread Spectrum Bandwidth |
- |
|
| Size / Dimension |
0.126" L x 0.098" W (3.20mm x 2.50mm) |
|
| Series |
DSC1004 |
|
| Ratings |
AEC-Q100 |
|
| Package / Case |
4-VDFN |
|
| Package |
Tube |
|
| Output |
CMOS |
|
| Operating Temperature |
-40°C ~ 85°C |
|
| Product Attribute |
Attribute Value
| |
| Mounting Type |
Surface Mount |
|
| Height - Seated (Max) |
0.035" (0.90mm) |
|
| Function |
Standby (Power Down) |
|
| Frequency Stability |
- |
|
| Frequency |
24.576 MHz |
|
| Current - Supply (Max) |
8mA |
|
| Current - Supply (Disable) (Max) |
15µA |
|
| Base Resonator |
MEMS |
|
| Base Product Number |
DSC1004 |
|
| Absolute Pull Range (APR) |
±25ppm |
|
