Specifications

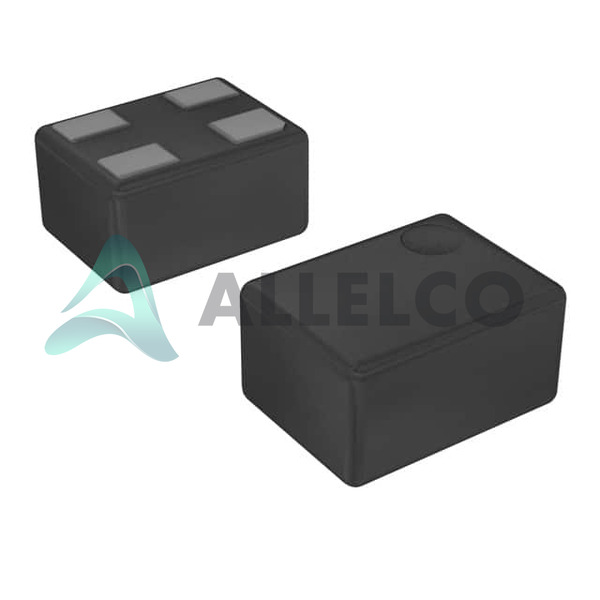

DSC6003HE2A-PROGRAMMABLE Tech Specifications
Microchip Technology - DSC6003HE2A-PROGRAMMABLE technical specifications, attributes, parameters and parts with similar specifications to Microchip Technology - DSC6003HE2A-PROGRAMMABLE
| Product Attribute |
Attribute Value
| |
| Manufacturer |
Microchip Technology |
|
| Voltage - Supply |
1.71V ~ 3.63V |
|
| Type |
XO (Standard) |
|
| Spread Spectrum Bandwidth |
- |
|
| Size / Dimension |
0.063' L x 0.047' W (1.60mm x 1.20mm) |
|
| Series |
DSC60XX |
|
| Ratings |
AEC-Q100 |
|
| Programmable Type |
Programmed by Digi-Key (Enter your frequency in Web Order Notes) |
|
| Package / Case |
4-SMD, No Lead |
|
| Package |
Bulk |
|
| Product Attribute |
Attribute Value
| |
| Output |
CMOS |
|
| Operating Temperature |
-20°C ~ 70°C |
|
| Mounting Type |
Surface Mount |
|
| Height - Seated (Max) |
0.035' (0.89mm) |
|
| Function |
Enable/Disable |
|
| Frequency Stability (Total) |
±25ppm |
|
| Frequency Stability |
- |
|
| Current - Supply (Max) |
1.3mA (Typ) |
|
| Base Resonator |
MEMS |
|
| Available Frequency Range |
1 MHz ~ 80 MHz |
|
