Specifications

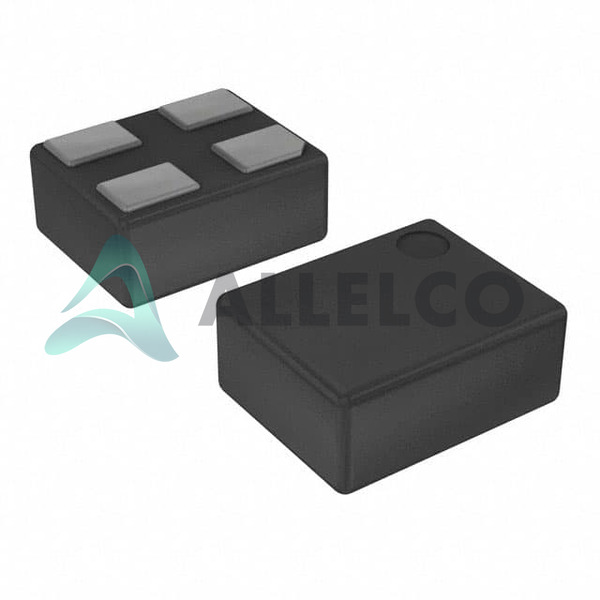

DSC6023MI2A-00A4 Tech Specifications
Microchip Technology - DSC6023MI2A-00A4 technical specifications, attributes, parameters and parts with similar specifications to Microchip Technology - DSC6023MI2A-00A4
| Product Attribute |
Attribute Value
| |
| Manufacturer |
Microchip Technology |
|
| Voltage - Supply |
1.71V ~ 3.63V |
|
| Type |
XO (Standard) |
|
| Size / Dimension |
0.079" L x 0.063" W (2.00mm x 1.60mm) |
|
| Series |
DSC60XX |
|
| Package / Case |
4-VFLGA |
|
| Package |
Bag |
|
| Output |
CMOS |
|
| Operating Temperature |
-40°C ~ 85°C |
|
| Product Attribute |
Attribute Value
| |
| Height |
0.035" (0.89mm) |
|
| Function |
- |
|
| Frequency Stability |
±25ppm |
|
| Frequency - Output 4 |
- |
|
| Frequency - Output 3 |
- |
|
| Frequency - Output 2 |
- |
|
| Frequency - Output 1 |
20MHz, 25MHz |
|
| Current - Supply (Max) |
1.3mA (Typ) |
|
| Base Resonator |
MEMS |
|
