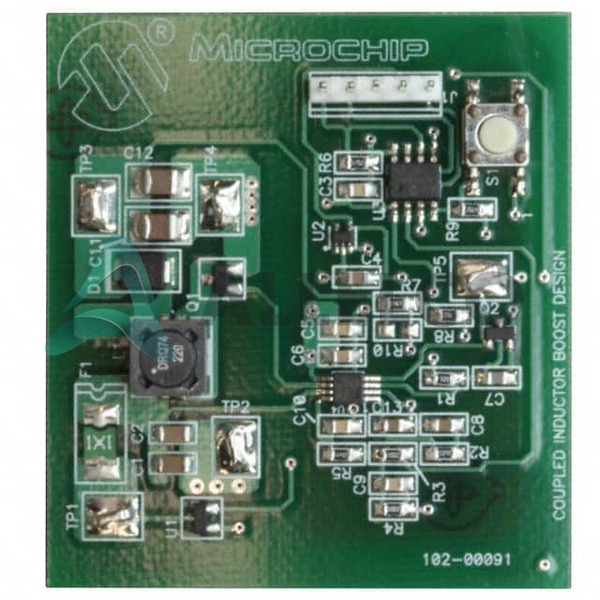

MCP1630DM-DDBS2 - Microchip Technology

Manufacturer Part Number: MCP1630DM-DDBS2

Manufacturer: Microchip Technology

Allelco Part Number: 98D-MCP1630DM-DDBS2

Warranty: 1 Year Allelco Warranty - Find out more

Parts Description: EVAL BOARD FOR MCP1630

Package: Bulk

Data sheet: 1.MCP1630DM-DDBS2.pdf ...

Datasheets
MCP1630 Coupled Demo Board Guide.pdf MCP1630/V.pdf MCP1630V Ref Design Guide.pdf

Design Resources
Portable Power Conversion Design Guide.pdf

PCN Obsolescence/ EOL
MCP1630DM-DDBS2 16/Apr/2019.pdf

PCN Packaging
Label and Packing Changes 23/Sep/2015.pdf

RoHs Status: ROHS3 Compliant

~~Compare~~

Our certification

In stock: 46066

EXPRESS OPTION

Payment method

Our certification

Specifications

MCP1630DM-DDBS2 Tech Specifications
Microchip Technology - MCP1630DM-DDBS2 technical specifications, attributes, parameters and parts with similar specifications to Microchip Technology - MCP1630DM-DDBS2

Product Attribute	Attribute Value
Manufacturer	Microchip Technology
Voltage - Output	15V ~ 40V
Voltage - Input	3V ~ 5.5V
Utilized IC / Part	MCP1630
Supplied Contents	Board(s)
Series	-
Regulator Topology	Boost

Product Attribute	Attribute Value
Package	Bulk
Outputs and Type	1, Non-Isolated
Main Purpose	DC/DC, Step Up
Frequency - Switching	100kHz
Current - Output	30mA
Board Type	Fully Populated
Base Product Number	MCP1630
