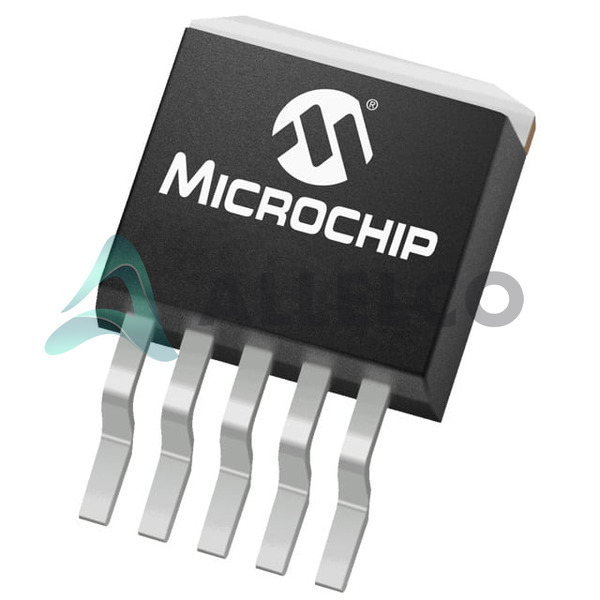

Image may be representation.
See specifications for product details.

~~Favorite~~

EXPRESS OPTION

Payment method

MCP1791-5002E/ET - Microchip Technology

Manufacturer Part Number: MCP1791-5002E/ET

Manufacturer: Microchip Technology

Allelco Part Number: 98D-MCP1791-5002E/ET

Warranty: 1 Year Allelco Warranty - Find out more

Parts Description: IC REG LINEAR 5V 70MA 5DDPAK

Package: 5-DDPAK

Data sheet: 1.MCP1791-5002E/E.pdf ...

Datasheets
MCP1790,91.pdf

PCN Packaging
Packing Changes 10/Oct/2016.pdf Label and Packing Changes 23/Sep/2015.pdf

PCN Assembly/Origin
Mult Dev Assembly Site 05/Jul/2019.pdf

RoHs Status: ROHS3 Compliant

~~Compare~~

Our certification

In stock: 38161

Unit Price: $0.313
Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity	Unit Price	Ext. Price
1+	$0.313	$0.31
200+	$0.121	$24.20
500+	$0.117	$58.50
1000+	$0.115	$115.00

The above prices does not include taxes and freight rates, which will be calculated on the order pages.

EXPRESS OPTION

Payment method

Our certification

Specifications

MCP1791-5002E/ET Tech Specifications
Microchip Technology - MCP1791-5002E/ET technical specifications, attributes, parameters and parts with similar specifications to Microchip Technology - MCP1791-5002E/ET

Product Attribute	Attribute Value
Manufacturer	Microchip Technology
Voltage Dropout (Max)	1.3V @ 70mA
Voltage - Output (Min/Fixed)	5V
Voltage - Output (Max)	-
Voltage - Input (Max)	30V
Supplier Device Package	5-DDPAK
Series	-
Protection Features	Over Temperature, Short Circuit
Package / Case	TO-263-6, D²Pak (5 Leads + Tab), TO-263BA
Package	Tube
PSRR	90dB ~ 75dB (100Hz ~ 1kHz)

Product Attribute	Attribute Value
Output Type	Fixed
Output Configuration	Positive
Operating Temperature	-40°C ~ 125°C
Number of Regulators	1
Mounting Type	Surface Mount
Current - Supply (Max)	210 µA
Current - Quiescent (Iq)	130 µA
Current - Output	70mA
Control Features	Enable, Power Good
Base Product Number	MCP1791

Environmental & Export Classifications

ATTRIBUTE	DESCRIPTION
RoHs Status	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8542.39.0001

Parts with Similar Specifications

The three parts on the right have similar specifications to Microchip Technology MCP1791-5002E/ET

Product Attribute
Part Number	MCP1791T-5002E/ET	MCP1791-3002E/ET	MCP1791T-3002E/ET	MCP1791T-3302E/ET
Manufacturer	Microchip Technology	Microchip Technology	Microchip Technology	Microchip Technology
Voltage Dropout (Max)	-	-	-	-
Current - Quiescent (Iq)	-	-	-	-
Current - Output	-	-	-	-
Output Type	-	Current - Unbuffered	Voltage - Buffered	-
Series	-	-	-	-
Package	-	Tape & Reel (TR)	Tube	Tape & Reel (TR)
Number of Regulators	-	-	-	-
Voltage - Output (Max)	-	-	-	-
Voltage - Output (Min/Fixed)	-	-	-	-
Current - Supply (Max)	-	-	-	-
Output Configuration	-	-	-	-
PSRR	-	-	-	-
Base Product Number	-	DAC34H84	MAX500	ADS62P42
Voltage - Input (Max)	-	-	-	-
Supplier Device Package	-	196-NFBGA (12x12)	16-PDIP	64-VQFN (9x9)
Mounting Type	-	Surface Mount	Through Hole	Surface Mount
Protection Features	-	-	-	-
Package / Case	-	196-LFBGA	16-DIP (0.300', 7.62mm)	64-VFQFN Exposed Pad
Control Features	-	-	-	-
Operating Temperature	-	-40°C ~ 85°C	0°C ~ 70°C	-40°C ~ 85°C

MCP1791-5002E/ET Datasheet PDF

Download MCP1791-5002E/ET pdf datasheets and Microchip Technology documentation for MCP1791-5002E/ET - Microchip Technology.

Datasheets: MCP1790,91.pdf
PCN Packaging: Packing Changes 10/Oct/2016.pdf Label and Packing Changes 23/Sep/2015.pdf
PCN Assembly/Origin: Mult Dev Assembly Site 05/Jul/2019.pdf
