Manufacturer Part Number

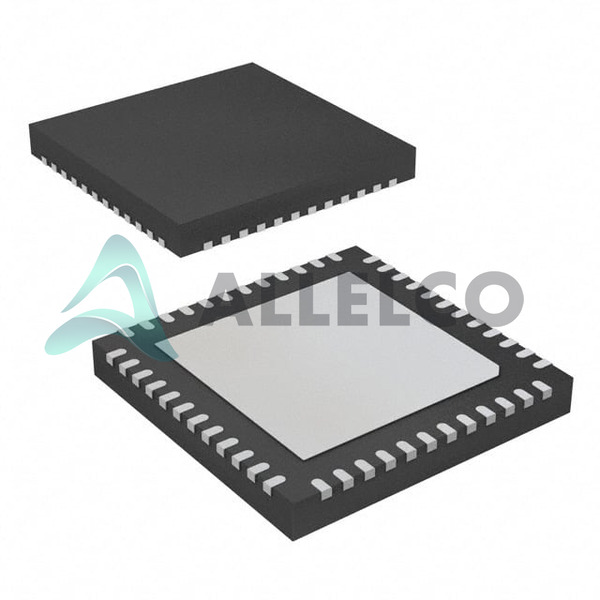

PIC18F57Q43-I/6LX
Manufacturer
Microchip Technology
Introduction
The PIC18F57Q43-I/6LX is a high-performance 8-bit microcontroller from Microchip's PIC® XLP™ 18F series, designed for embedded applications. It features advanced peripherals, low-power operation, and enhanced functional safety capabilities, making it suitable for a wide range of industrial and automotive applications.
Product Features and Performance
8-bit PIC core operating at up to 64MHz
128KB of FLASH program memory
8KB of RAM
1KB of EEPROM
Wide supply voltage range of 1.8V to 5.5V
Integrated 12-bit ADC with 43 channels
8-bit DAC
Variety of communication interfaces including I2C, LIN, SPI, and UART/USART
Peripheral features like Brown-out Detect/Reset, LVD, POR, PWM, and Watchdog Timer
44 I/O pins
Product Advantages
Excellent performance and power efficiency
Extensive peripheral set for versatile applications
Functional safety features for industrial and automotive use
Broad compatibility and ease of integration
Key Reasons to Choose This Product
Robust and reliable 8-bit microcontroller solution
Ideal for cost-sensitive, low-power embedded designs
Seamless integration with Microchip's extensive development ecosystem
Trusted brand and quality assurance from Microchip Technology
Quality and Safety Features
Designed and manufactured to Microchip's high-quality standards
Functional Safety (FuSa) capabilities for critical applications
Extended operating temperature range of -40°C to 85°C
Compatibility
Compatible with a wide range of PIC18F family devices
Easily integrated into existing Microchip-based systems
Application Areas
Industrial automation and control
Automotive electronics
Smart home and IoT devices
Medical equipment
Power management systems
Product Lifecycle
["The PIC18F57Q43-I/6LX is an active product in our website's sales team's portfolio.","There are several equivalent and alternative models available within the PIC® XLP™ 18F series, including the PIC18F46Q43, PIC18F47Q43, and PIC18F57Q84.","Customers are advised to contact our website's sales team for the most up-to-date information on product availability and roadmap."]
