Manufacturer Part Number

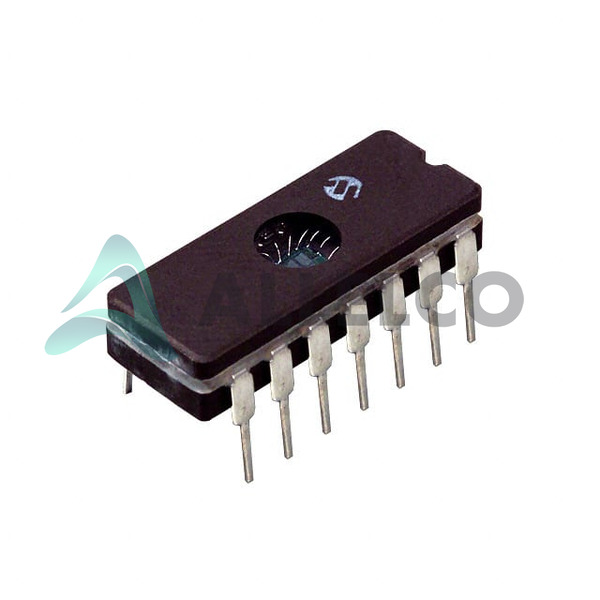

TC4467MJD
Manufacturer
Microchip Technology
Introduction
The TC4467MJD is a high-performance, quad MOSFET driver that provides independent, low-side, N-channel and P-channel gate drive for a variety of power switching applications. It features a wide supply voltage range, fast switching speeds, and a high peak output current capacity.
Product Features and Performance
4 independent low-side gate driver channels
Wide supply voltage range of 4.5V to 18V
High peak output current of 1.2A (source and sink)
Fast rise and fall times of 15ns (typical)
Inverting input logic
Operating temperature range of -55°C to +150°C
Product Advantages
Provides efficient and reliable gate driving for power MOSFET and IGBT switches
Enables high-speed, low-loss switching in power electronics applications
Robust design with wide operating temperature range
Versatile configuration options for various power conversion topologies
Key Reasons to Choose This Product
High-performance gate driving for improved efficiency and reliability in power electronics
Compact and space-saving design with 4 independent channels
Wide supply voltage range for compatibility with various system requirements
Proven Microchip technology with long-term availability and support
Quality and Safety Features
Robust design for reliable operation in harsh environments
Overcurrent and undervoltage protection features
Compliant with relevant safety and EMC standards
Compatibility
The TC4467MJD is compatible with a variety of N-channel and P-channel power MOSFETs and IGBTs, making it suitable for a wide range of power conversion and control applications.
Application Areas
Switch-mode power supplies (SMPS)
Motor drives and controls
Inverters and converters
Industrial automation and control systems
Automotive electronics
Product Lifecycle
The TC4467MJD is an obsolete product, meaning it is no longer in production. However, Microchip Technology may offer equivalent or alternative models that can serve a similar function. Customers are advised to contact our website's sales team for more information on available options and suitable replacements.
