Manufacturer Part Number
TC7109CLW
Manufacturer
Microchip Technology
Introduction

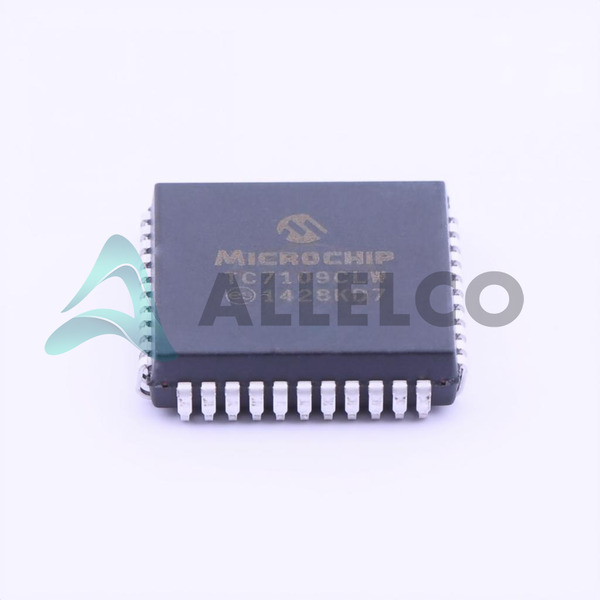

The TC7109CLW is a 12-bit analog to digital converter from Microchip Technology designed for data acquisition in measurement and instrumentation applications.
Product Features and Performance
12-bit resolution
Dual Slope conversion architecture
Single differential input
Parallel data interface
External reference type
30 samples per second conversion rate
Operates with 5V analog and digital supply voltage
Surface mount, 44-LCC (J-Lead) package
Product Advantages
High-resolution ADC for precise data acquisition
Low conversion rate suitable for high-accuracy measurements
Dual Slope architecture enhances noise rejection
Single-chip ADC solution simplifies design
Key Technical Parameters
Number of Bits: 12
Sampling Rate (Per Second): 30
Number of Inputs: 1
Input Type: Differential
Data Interface: Parallel
Number of A/D Converters: 1
Architecture: Dual Slope
Voltage - Supply, Analog: 5V
Voltage - Supply, Digital: 5V
Operating Temperature: 0°C ~ 70°C
Quality and Safety Features
Stable operation within the specified temperature range
Compliance with industry standards for electronic components
Compatibility
Compatible with systems requiring parallel data interfaces
Works with external voltage references
Application Areas
Instrumentation
Measurement systems
Process control
Industrial automation
Product Lifecycle
Active status indicating ongoing production and support
Check manufacturer for information on potential discontinuation or updates
Several Key Reasons to Choose This Product
Precision 12-bit resolution catering to applications requiring high data accuracy
Dedicated to low-frequency sampling, ideal for stationary signal measurements
Robust Dual Slope conversion technique that offers improved stability
Supported by Microchip Technology, a leader in semiconductor solutions
Easy integration into system designs thanks to its parallel interface and surface mount package
Availability of detailed technical and application support from the manufacturer
Compatible with a wide range of external references, allowing flexible system design options
