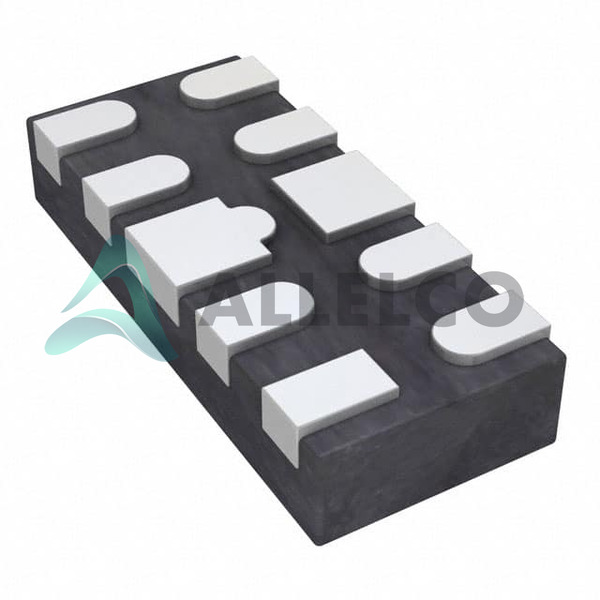

Image may be representation.
See specifications for product details.

~~Favorite~~

EXPRESS OPTION

Payment method

ESDLC5V0DFN10-TP - Micro Commercial Co

Name: Micro Commercial Co ESDLC5V0DFN10-TP
Brand: Micro Commercial Co
SKU: ESDLC5V0DFN10-TP
Availability: InStock
Rating: 5 (7 reviews)

Manufacturer Part Number: ESDLC5V0DFN10-TP

Manufacturer: Micro Commercial Components (MCC)

Allelco Part Number: 32D-ESDLC5V0DFN10-TP

Warranty: 1 Year Allelco Warranty - Find out more

Parts Description: TVS DIODE 5VWM 28VC 10DFN

Package: 10-DFN (2.5x1)

Data sheet: 1.ESDLC5V0DFN10-T.pdf ...

Datasheets
ESDLC5V0DFN10.pdf

Environmental Information
Micro Commercial CA Prop65.pdf Micro Commercial REACH.pdf Micro Commercial RoHS.pdf

RoHs Status: ROHS3 Compliant

~~Compare~~

Our certification

In stock: 89630

EXPRESS OPTION

Payment method

Our certification

Specifications

ESDLC5V0DFN10-TP Tech Specifications
Micro Commercial Co - ESDLC5V0DFN10-TP technical specifications, attributes, parameters and parts with similar specifications to Micro Commercial Co - ESDLC5V0DFN10-TP

Product Attribute	Attribute Value
Manufacturer	Micro Commercial Components (MCC)
Voltage - Reverse Standoff (Typ)	5V (Max)
Voltage - Clamping (Max) @ Ipp	28V
Voltage - Breakdown (Min)	6V
Type	Zener
Supplier Device Package	10-DFN (2.5x1)
Series	-
Power Line Protection	Yes
Power - Peak Pulse	150W

Product Attribute	Attribute Value
Package / Case	10-XFDFN
Package	Tape & Reel (TR)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Current - Peak Pulse (10/1000µs)	5A (8/20µs)
Capacitance @ Frequency	0.5pF @ 1MHz
Bidirectional Channels	4
Base Product Number	ESDLC5
Applications	General Purpose

Environmental & Export Classifications

ATTRIBUTE	DESCRIPTION
RoHs Status	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.10.0080

Parts Introduction

Manufacturer Part Number

ESDLC5V0DFN10-TP

Manufacturer

micro-commercial-components

Introduction

The ESDLC5V0DFN10-TP is a high-performance transient voltage suppressor (TVS) diode designed for general-purpose applications. This device offers robust protection against electrostatic discharge (ESD) and electrical transients, ensuring the reliable operation of sensitive electronic circuits.

Product Features and Performance

4-channel bidirectional configuration

Reverse standoff voltage (typical): 5V

Breakdown voltage (minimum): 6V

Clamping voltage (maximum) at Ipp: 28V

Peak pulse current (10/1000μs): 5A (8/20μs)

Peak pulse power: 150W

Provides power line protection

Low capacitance: 0.5pF @ 1MHz

Operating temperature range: -55°C to 150°C (TJ)

Surface mount package: 10-XFDFN (2.5x1)

Product Advantages

Robust protection against ESD and electrical transients

Compact and space-efficient surface mount package

Wide operating temperature range

Low capacitance for minimal impact on circuit performance

Key Reasons to Choose This Product

Reliable and effective protection for sensitive electronic circuits

Compact design for efficient board layout

Broad operating temperature range for use in diverse applications

Minimal impact on circuit performance due to low capacitance

Quality and Safety Features

Compliant with industry standards for transient voltage suppression

Rigorous quality control and testing procedures

Designed and manufactured to ensure long-term reliability and performance

Compatibility

The ESDLC5V0DFN10-TP is compatible with a wide range of electronic devices and can be used in various applications where protection against ESD and electrical transients is required.

Application Areas

General-purpose electronics

Industrial automation and control systems

Telecommunications equipment

Automotive electronics

Consumer electronics

Product Lifecycle

The ESDLC5V0DFN10-TP is an active product, and there are no immediate plans for discontinuation. However, as technology evolves, equivalent or alternative models may become available in the future. If you have any questions or need further assistance, please contact our sales team through our website.

Parts with Similar Specifications

The three parts on the right have similar specifications to Micro Commercial Co ESDLC5V0DFN10-TP

Product Attribute
Part Number	ESDLC5V0D3-TP	ESDLC5V0D7B-TP	ESDLC5V0D9B-TP	ESDLC5V0D9L-TP
Manufacturer	Micro Commercial Co	Micro Commercial Co	Micro Commercial Co	Micro Commercial Co
Base Product Number	-	DAC34H84	MAX500	ADS62P42
Current - Peak Pulse (10/1000µs)	-	-	-	-
Bidirectional Channels	-	-	-	-
Voltage - Breakdown (Min)	-	-	-	-
Power Line Protection	-	-	-	-
Package	-	Tape & Reel (TR)	Tube	Tape & Reel (TR)
Package / Case	-	196-LFBGA	16-DIP (0.300', 7.62mm)	64-VFQFN Exposed Pad
Capacitance @ Frequency	-	-	-	-
Type	-	-	-	-
Operating Temperature	-	-40°C ~ 85°C	0°C ~ 70°C	-40°C ~ 85°C
Mounting Type	-	Surface Mount	Through Hole	Surface Mount
Supplier Device Package	-	196-NFBGA (12x12)	16-PDIP	64-VQFN (9x9)
Series	-	-	-	-
Power - Peak Pulse	-	-	-	-
Voltage - Reverse Standoff (Typ)	-	-	-	-
Voltage - Clamping (Max) @ Ipp	-	-	-	-
Applications	-	-	-	-

ESDLC5V0DFN10-TP Datasheet PDF

Download ESDLC5V0DFN10-TP pdf datasheets and Micro Commercial Co documentation for ESDLC5V0DFN10-TP - Micro Commercial Co.

Datasheets: ESDLC5V0DFN10.pdf
Environmental Information: Micro Commercial CA Prop65.pdf Micro Commercial REACH.pdf Micro Commercial RoHS.pdf
