HomeProductsCircuit ProtectionTVS - DiodesSMBJ20CA-TP

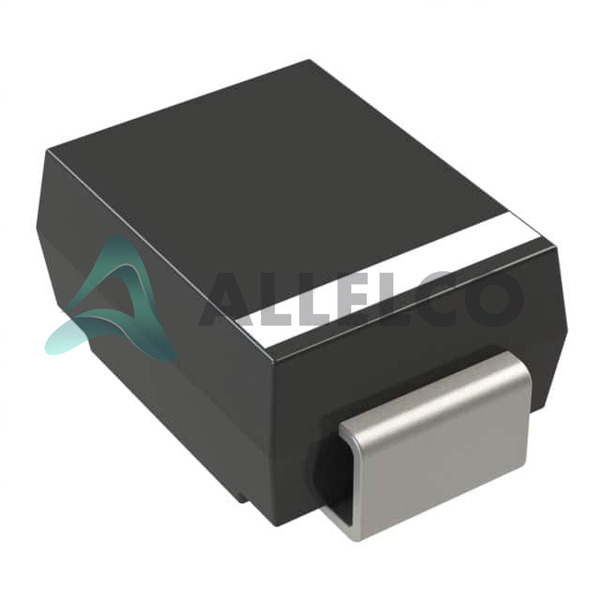

SMBJ20CA-TP Image
SMBJ20CA-TP Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

SMBJ20CA-TP - Micro Commercial Co

Manufacturer Part Number
SMBJ20CA-TP
Manufacturer
Micro Commercial Components (MCC)
Allelco Part Number
98D-SMBJ20CA-TP
Warranty
1 Year Allelco Warranty - Find out more
Parts Description
TVS DIODE 20VWM 32.4VC DO214AA
Package
DO-214AA (SMB)
Data sheet
1.SMBJ20CA-TP.pdf ...

PCN Design/Specification

TVS Breakdown Voltage 15/May/2013.pdf

PCN Assembly/Origin

Assembly/Test 03/Mar/2022.pdf
RoHs Status
ROHS3 Compliant
Compare
Our certification
In stock: 3000
  • Unit Price: $0.068
  • Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity Unit Price Ext. Price
5+ $0.068 $0.34
50+ $0.055 $2.75
150+ $0.049 $7.35
500+ $0.044 $22.00
3000+ $0.04 $120.00
6000+ $0.038 $228.00
The above prices does not include taxes and freight rates, which will be calculated on the order pages.
EXPRESS OPTION
Payment method
Our certification

Specifications

SMBJ20CA-TP Tech Specifications
Micro Commercial Co - SMBJ20CA-TP technical specifications, attributes, parameters and parts with similar specifications to Micro Commercial Co - SMBJ20CA-TP

Product Attribute Attribute Value
Manufacturer Micro Commercial Components (MCC)
Voltage - Reverse Standoff (Typ) 20V
Voltage - Clamping (Max) @ Ipp 32.4V
Voltage - Breakdown (Min) 22.2V
Type Zener
Supplier Device Package DO-214AA (SMB)
Series -
Power Line Protection No
Power - Peak Pulse 600W
Product Attribute Attribute Value
Package / Case DO-214AA, SMB
Package Tape & Reel (TR)
Operating Temperature -55°C ~ 175°C (TJ)
Mounting Type Surface Mount
Current - Peak Pulse (10/1000µs) 18.5A
Capacitance @ Frequency -
Bidirectional Channels 1
Base Product Number SMBJ20
Applications General Purpose

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080

Parts with Similar Specifications

The three parts on the right have similar specifications to Micro Commercial Co SMBJ20CA-TP

Product Attribute SMBJ20CAHE3-TP SMBJ20CA-TR SMBJ20CA-QH SMBJ20CA-F1-0000HF
Part Number SMBJ20CAHE3-TP SMBJ20CA-TR SMBJ20CA-QH SMBJ20CA-F1-0000HF
Manufacturer Micro Commercial Co STMicroelectronics Bourns Inc. Yangzhou Yangjie Electronic Technology Co.,Ltd
Applications - - - -
Voltage - Reverse Standoff (Typ) - - - -
Operating Temperature - -40°C ~ 85°C 0°C ~ 70°C -40°C ~ 85°C
Mounting Type - Surface Mount Through Hole Surface Mount
Capacitance @ Frequency - - - -
Voltage - Clamping (Max) @ Ipp - - - -
Power - Peak Pulse - - - -
Type - - - -
Base Product Number - DAC34H84 MAX500 ADS62P42
Package - Tape & Reel (TR) Tube Tape & Reel (TR)
Power Line Protection - - - -
Package / Case - 196-LFBGA 16-DIP (0.300', 7.62mm) 64-VFQFN Exposed Pad
Supplier Device Package - 196-NFBGA (12x12) 16-PDIP 64-VQFN (9x9)
Voltage - Breakdown (Min) - - - -
Current - Peak Pulse (10/1000µs) - - - -
Bidirectional Channels - - - -
Series - - - -

SMBJ20CA-TP Datasheet PDF

Download SMBJ20CA-TP pdf datasheets and Micro Commercial Co documentation for SMBJ20CA-TP - Micro Commercial Co.

Datasheets
SMBJ5.0 thru SMBJ440CA.pdf
PCN Design/Specification
TVS Breakdown Voltage 15/May/2013.pdf
PCN Assembly/Origin
Assembly/Test 03/Mar/2022.pdf
Environmental Information
Micro Commercial CA Prop65.pdf Micro Commercial REACH.pdf Micro Commercial RoHS.pdf
