Specifications

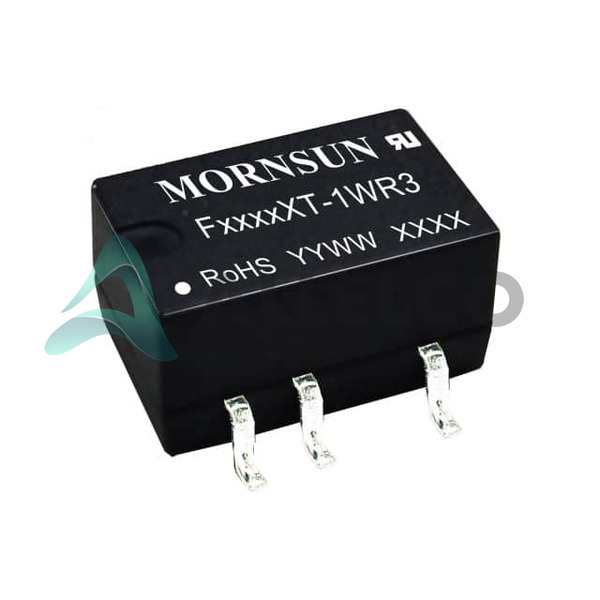

F1205XT-1WR3 Tech Specifications
Mornsun America, LLC - F1205XT-1WR3 technical specifications, attributes, parameters and parts with similar specifications to Mornsun America, LLC - F1205XT-1WR3
| Product Attribute |
Attribute Value
| |
| Manufacturer |
Mornsun |
|
| Voltage - Output 4 |
- |
|
| Voltage - Output 3 |
- |
|
| Voltage - Output 2 |
- |
|
| Voltage - Output 1 |
5V |
|
| Voltage - Isolation |
3 kV |
|
| Voltage - Input (Min) |
10.8V |
|
| Voltage - Input (Max) |
13.2V |
|
| Type |
Isolated Module |
|
| Supplier Device Package |
- |
|
| Standard Number |
62368-1 |
|
| Size / Dimension |
0.52" L x 0.33" W x 0.29" H (13.2mm x 8.5mm x 7.3mm) |
|
| Series |
F_XT-1WR3 (1W) |
|
| Product Attribute |
Attribute Value
| |
| Power (Watts) |
1 W |
|
| Package / Case |
8-SMD Module, 5 Leads |
|
| Package |
Tube |
|
| Operating Temperature |
-40°C ~ 105°C (With Derating) |
|
| Number of Outputs |
1 |
|
| Mounting Type |
Surface Mount |
|
| Features |
- |
|
| Efficiency |
82% |
|
| Current - Output (Max) |
200mA |
|
| Control Features |
- |
|
| Approval Agency |
CB, CE, cURus, UL |
|
| Applications |
ITE (Commercial) |
|
