Home Products Filters Common Mode Chokes~~PLT5BPH3013R7SNL~~

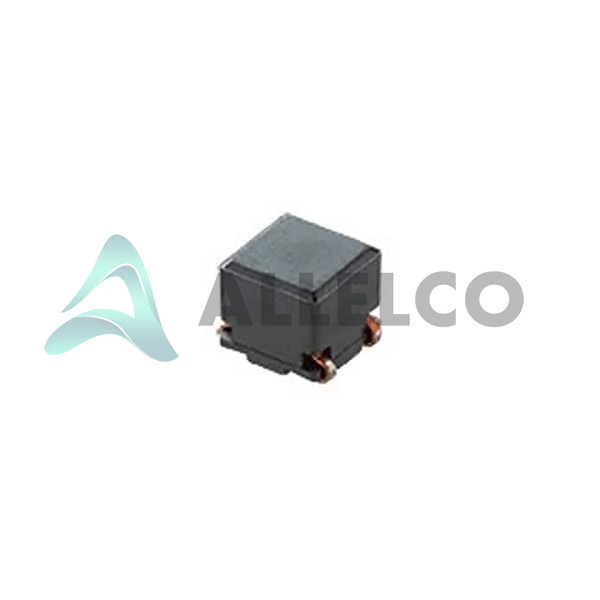

Image may be representation.
See specifications for product details.

~~Favorite~~

EXPRESS OPTION

Payment method

PLT5BPH3013R7SNL - Murata Electronics

Name: Murata Electronics PLT5BPH3013R7SNL
Brand: Murata Electronics
SKU: PLT5BPH3013R7SNL
Price: 0.37 USD
Availability: InStock
Rating: 5 (1 reviews)

Manufacturer Part Number: PLT5BPH3013R7SNL

Manufacturer: Murata Electronics

Allelco Part Number: 98D-PLT5BPH3013R7SNL

Warranty: 1 Year Allelco Warranty - Find out more

Parts Description: CMC 2.2A 2LN 300OHM SMD AEC-Q200

Package: Vertical, 4 PC Pad

Data sheet: 1.PLT5BPH3013R7SN.pdf ...

HTML Datasheet
PLT5BPH Series Ref Sheet.pdf

RoHs Status: ROHS3 Compliant

~~Compare~~

Our certification

In stock: 7100

Unit Price: $1.007
Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity	Unit Price	Ext. Price
1+	$1.007	$1.01
300+	$0.39	$117.00
600+	$0.376	$225.60
900+	$0.37	$333.00

The above prices does not include taxes and freight rates, which will be calculated on the order pages.

EXPRESS OPTION

Payment method

Our certification

Specifications

PLT5BPH3013R7SNL Tech Specifications
Murata Electronics - PLT5BPH3013R7SNL technical specifications, attributes, parameters and parts with similar specifications to Murata Electronics - PLT5BPH3013R7SNL

Product Attribute	Attribute Value
Manufacturer	Murata Electronics
Voltage Rating - DC	80V
Voltage Rating - AC	-
Size / Dimension	0.197' L x 0.197' W (5.00mm x 5.00mm)
Series	PLT5BPH
Ratings	AEC-Q200
Package / Case	Vertical, 4 PC Pad
Package	Tape & Reel (TR)
Operating Temperature	-55°C ~ 150°C
Number of Lines	2

Product Attribute	Attribute Value
Mounting Type	Surface Mount
Impedance @ Frequency	300 Ohms @ 10 MHz
Height (Max)	0.197' (5.00mm)
Filter Type	-
Features	-
DC Resistance (DCR) (Max)	11mOhm (Typ)
Current Rating (Max)	2.2A
Base Product Number	PLT5BPH
Approval Agency	-

Environmental & Export Classifications

ATTRIBUTE	DESCRIPTION
RoHs Status	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN	EAR99
HTSUS	8548.00.0000

Parts with Similar Specifications

The three parts on the right have similar specifications to Murata Electronics PLT5BPH3013R7SNL

Product Attribute
Part Number	PLT5BPH3013R7SNL	PLT5BPH5013R1SNL	PLT5BPH2014R4SNL	PLT5BPH1015R6SNL
Manufacturer	Murata Electronics	Murata Electronics	Murata Electronics	Murata Electronics
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Number of Lines	2	2	2	2
DC Resistance (DCR) (Max)	11mOhm (Typ)	22.1mOhm	9.1mOhm	5mOhm (Typ)
Ratings	AEC-Q200	AEC-Q200	AEC-Q200	AEC-Q200
Base Product Number	PLT5BPH	PLT5BPH	PLT5BPH	PLT5BPH
Features	-	-	-	-
Voltage Rating - AC	-	-	-	-
Size / Dimension	0.197' L x 0.197' W (5.00mm x 5.00mm)	0.197' L x 0.197' W (5.00mm x 5.00mm)	0.197' L x 0.197' W (5.00mm x 5.00mm)	0.197' L x 0.197' W (5.00mm x 5.00mm)
Package	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)
Filter Type	-	-	-	-
Approval Agency	-	-	-	-
Impedance @ Frequency	300 Ohms @ 10 MHz	500 Ohms @ 10 MHz	200 Ohms @ 10 MHz	100 Ohms @ 10 MHz
Current Rating (Max)	2.2A	1.8A	2.4A	2.9A
Package / Case	Vertical, 4 PC Pad	Vertical, 4 PC Pad	Vertical, 4 PC Pad	Vertical, 4 PC Pad
Height (Max)	0.197' (5.00mm)	0.197' (5.00mm)	0.197' (5.00mm)	0.197' (5.00mm)
Series	PLT5BPH	PLT5BPH	PLT5BPH	PLT5BPH
Operating Temperature	-55°C ~ 150°C	-55°C ~ 150°C	-55°C ~ 150°C	-55°C ~ 150°C
Voltage Rating - DC	80V	80V	80V	80V

PLT5BPH3013R7SNL Datasheet PDF

Download PLT5BPH3013R7SNL pdf datasheets and Murata Electronics documentation for PLT5BPH3013R7SNL - Murata Electronics.

HTML Datasheet: PLT5BPH Series Ref Sheet.pdf
